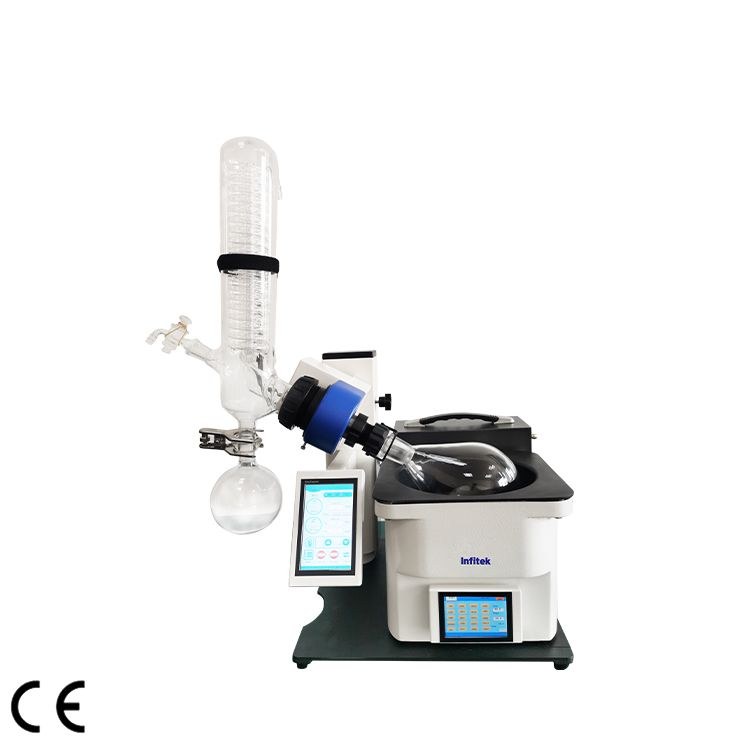

مبخر دوار مخبري مع تحكم بالتفريغ REV-1000AX

المواصفات

الطراز

REV-1000AX

نطاق استخدام قارورة العينة

25~1000ml

سرعة الدوران

Touch screen display, 0~310rpm

التحكم بالتفريغ

Vacuum control range; 0~-0.1Mpa (0~1013mbar); precision ±1Mpa (, vacuum degree can be controlled arbitrarily. Automatic pressure release at the end of the experiment, jog/one-key pressure release function; 10-stage gradient distillation program control, step-by-step control of vacuum degree during synthesis experiment chromatography vacuum distillation; commonly used 40 kinds of experimental data

سعة التبخير

Max.25mL/min(H 2 O)

تفريغ الجهاز

The vacuum inside the equipment can reach 2mbar.

نطاق ضبط درجة الحرارة

Water and oil dual-purpose bath, water bath: room temperature ~99°C, ±0.5; oil bath: room temperature ~210°C, ±2°C;

مادة حمّام التسخين

One-time forming Teflon coating, easy to clean, corrosion resistance, high temperature resistance; heating pot with safety handle, shell heat insulation, prevent scald, moderate volume, rapid heating; equipped with a transparent protective cover: heat preservation, energy saving, explosion-proof, anti-corrosion splash.

أبعاد الحمّام

φ20*11.5cm (approximately 3.5L), the sliding base of the heating bath can freely move 120mm to the right.

قارورة العينة

Forward rotation, reverse rotation, intermittent forward and reverse rotation, the intermittent time can be adjusted from 0 to 60s, which can be used for drying powder samples.

التحكم في درجة الحرارة

Dual touch screen control system, digital display, over-temperature warning, automatic lifting, automatic pressure relief, and equipment shutdown functions.

ضبط درجة الحرارة

Touch-type digital input setting, dual-screen control display, convenient and quick.

أداء السلامة

Anti-dry over-temperature early warning, abnormal rotating motor early warning, automatic lifting of the sample bottle to the highest; Timing function (0~999min), when the preset time is reached, the equipment will automatically release the pressure, lift and lower the evaporating bottle automatically, and the equipment will be standby for early warning and protection.

السخان

Fully enclosed heater. Power 1kW

أجزاء الإحكام

Imported PTFE special synthetic material is selected, and the abrasive tool is synthesized through special process technology to enhance sealing, corrosion resistance and wear resistance.

المكثف

Vertical, three-layer ball mill mouth serpentine condenser, condensation area 0.18m², with drop point and backflow design (effectively improve work efficiency).

درجة الحرارة المحيطة

5~40℃

الكهرباء

AC220V/50Hz

الأبعاد الخارجية

55*36*64cm

أبعاد الشحن

67*50*46.5cm

الوزن الإجمالي

34kg

تهيئة المصنع

Sample bottle 1L*1; recovery bottle S35# ball mill mouth collection bottle 0.5L*1.

المنتجات الداعمة

REV-1000AX + Diaphragm Vacuum Pump VACP-D20 + Low Temperature Circulator RECL20-2X
