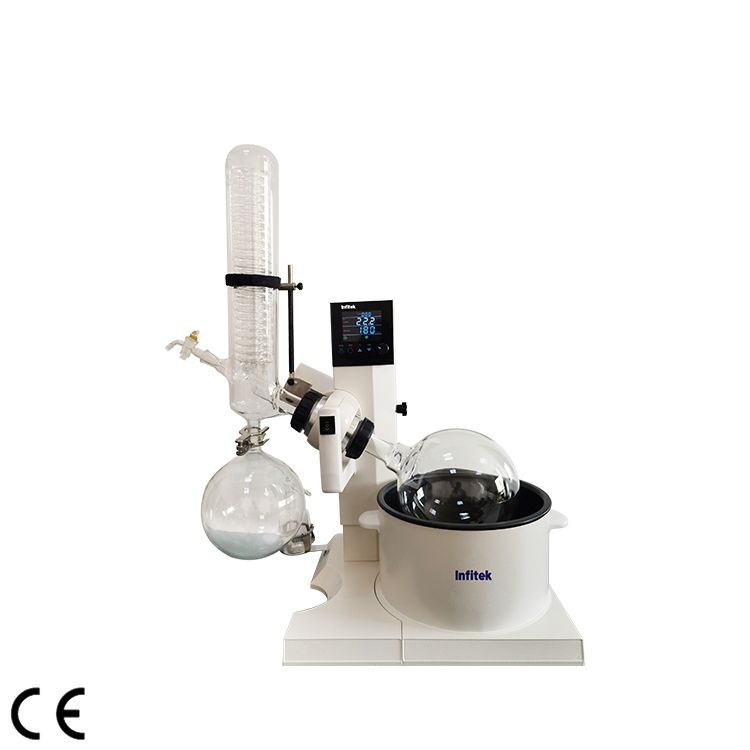

مبخرات دوارة مخبرية REV-2000AX وREV-3000AX وREV-5000AX

المواصفات

سرعة الدوران

Color LCD Screen; 0~310rpm / Color LCD Screen; 0-310rpm (Evaporating flask≤ 3L) 0-200rpm (Evaporating flask≤ 5L)

سعة التبخير

REV-2000AX: Max.25ml/min (H2O); REV-3000AX: Max.27ml/min (H2O）; REV-5000AX: Max.43ml/min (H2O）

نطاق/دقة درجة الحرارة

Microcomputer PID controller; Water Bath：RT.-99℃±0.5℃；Oil Bath：RT.-210℃±2℃

مادة الحمّام

Integral Teflon compound heating bath with safe handle, which prevents from scald; the medium sized bath volume makes distillation fast.

حجم الحمام

REV-2000AX: φ23*13cm(about 5.4L); REV-3000AX: φ26*15cm(about 8L); REV-5000AX: φ29*17cm(about 11L)

الدوران في الاتجاهين (أمامي وعكسي)

Intermittent positive and negative rotating function with timing function (0-60s) for drying process.

الرفع

Automatic balance lifting which can be controlled by either button-press or Color LCD screen; the lifting length is 150mm, with fixed safety distance of 60mm, which prevents crashing.

ضبط درجة الحرارة

Rotating switch coding for temperature setting with big LCD screen display.

السلامة

Anti-dry prevention function which makes flask automatic lifting; instrument will stop at the set timing (0-999min); automatic lifting and standby alarm protection in abnormal or over temperature state.

قدرة السخان

1.5kW

حجم دورق التبخير

REV-2000AX: 0.25–2L; REV-3000AX: 0.25–3L; REV-5000AX: 0.25–5L

الإحكام

Imported PTFE and special complex compounded with special technique, which ensures good sealing and improves the anti-corrosion and durability property.

المكثف

Vertical 3-layered coil condenser with big condensation area, equipped with drip point and backflow prevention, which effectively increases the evaporation efficiency.

مساحة التكثيف

REV-2000AX: 0.18㎡; REV-3000AX: 0.21㎡; REV-5000AX: 0.31㎡

درجة حرارة البيئة

5℃~40℃

IP (الحماية من دخول الأجسام والسوائل)

IP42

تهيئة المصنع

REV-2000AX: 29# grinding mouth integrated rotating shaft *1； Sample Bottle: 29# Eggplant bottle 1L*1； Recycling Bottle: S35 ball grinding mouth collection bottle 1L*1; REV-3000AX: Flange interface to 29# grinding interface*1； Sample Bottle: 3L flange mouth round bottom bottle *1, 29# eggplant bottle 1L*1； Recycling Bottle:S35 ball grinding mouth collection bottle 2L*1

الكهرباء

AC220V/50Hz

أبعاد الجهاز (W*D*H)(mm)

REV-2000AX: 660*420*830; REV-3000AX: 700*430*860; REV-5000AX: 740*440*960

أبعاد العبوة (W*D*H)(mm)

REV-2000AX: 740*670*530; REV-3000AX: 710*645*790; REV-5000AX: 810*710*890

الوزن الإجمالي (kg)

REV-2000AX: 30; REV-3000AX: 35; REV-5000AX: 49

المنتجات الداعمة

REV-2000AX: REV-2000AX +Diaphragm Vacuum Pump VACP-D20 +Low Temperature Circulator RECL20-2X; REV-3000AX: REV-3000AX +Diaphragm Vacuum Pump VACP-D20 +Low Temperature Circulator RECL20-2X; REV-5000AX: REV-5000AX +Diaphragm Vacuum Pump VACP-D45L +Low Temperature Circulator RECL20-5X
