GBC SavantAA
Double-beam AAS from GBC Scientific Equipment: Ebert-Fastie 333 mm, 175–900 nm, 1800 line/mm, 8-lamp turret, Hyper-Pulse background correction.
Key specifications
- Optical system
- Double beam AAS
- Monochromator
- Ebert-Fastie 333 mm
- Wavelength range
- 175–900 nm
- Grating
- 1800 line/mm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
GBC SavantAA
Request a quoteOverview
Product overview
The GBC SavantAA is GBC Scientific Equipment’s double-beam atomic absorption spectrometer. The Ebert-Fastie monochromator is 333 mm with a 175–900 nm range and an 1800 line/mm grating. An 8-lamp turret and Hyper-Pulse background correction sit on the optical bench. GBC states >0.9 abs for 5 mg/L Cu with RSD <0.5%.
Sample introduction is an all-titanium burner and a platinum-iridium nebulizer. GBC is an Australian manufacturer, founded in 1978, with operations in Melbourne and Penang. The SavantAA is the elemental flame bench Al-Shaker specifies from that line.
Al-Shaker specifies SavantAA versus Quantima or OptiMass 9600, the first lamp set, and the introduction path, then installs, trains, and supports the spectrometer across Jordan, the GCC, and MENA.
Specifications
Technical specifications
8 parameters
Optics
- Optical system
- Double beam AAS
- Monochromator
- Ebert-Fastie 333 mm
- Wavelength range
- 175–900 nm
- Grating
- 1800 line/mm
Source
- Lamp turret
- 8-lamp
Background
- Correction
- Hyper-Pulse
Sample introduction
- Burner / nebulizer
- All-titanium / Pt-Ir
Performance
- Cu 5 mg/L
- >0.9 abs, RSD <0.5%
Features
Key features
- 01
Ebert-Fastie optics
333 mm monochromator, 175–900 nm, 1800 line/mm — a double-beam AAS, not a single-beam teaching unit.
- 02
Hyper-Pulse correction
Background correction on an 8-lamp turret so the method can change element without rebuilding the lamp house.
- 03
Titanium burner, Pt-Ir nebulizer
All-titanium burner and platinum-iridium nebulizer for the flame path GBC publishes on this page.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
Keep exploring
More from GBC Scientific Equipment
GBC OptiMass 9600
OA-TOF ICP-MS: 27.12 MHz RF at 500–1500 W, argon <12 L/min, 1–260 amu, >30,000 spectra/s, resolution typically ≥1,200 for 238U.
View product
GBC Cintra 4040
True double-beam double-monochromator UV-Vis: 190–900 nm, bandpass 0.1–2.0 nm, scan 5–10,000 nm/min, R928 PMT, linearity <0.3% at 4 Abs.
View product

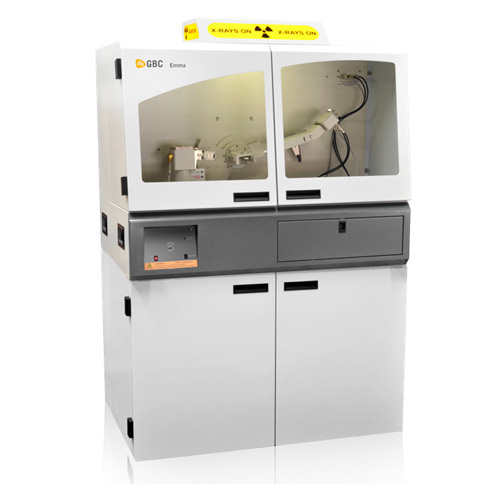

GBC Emma
