Reference: Aludra Next GC-MS

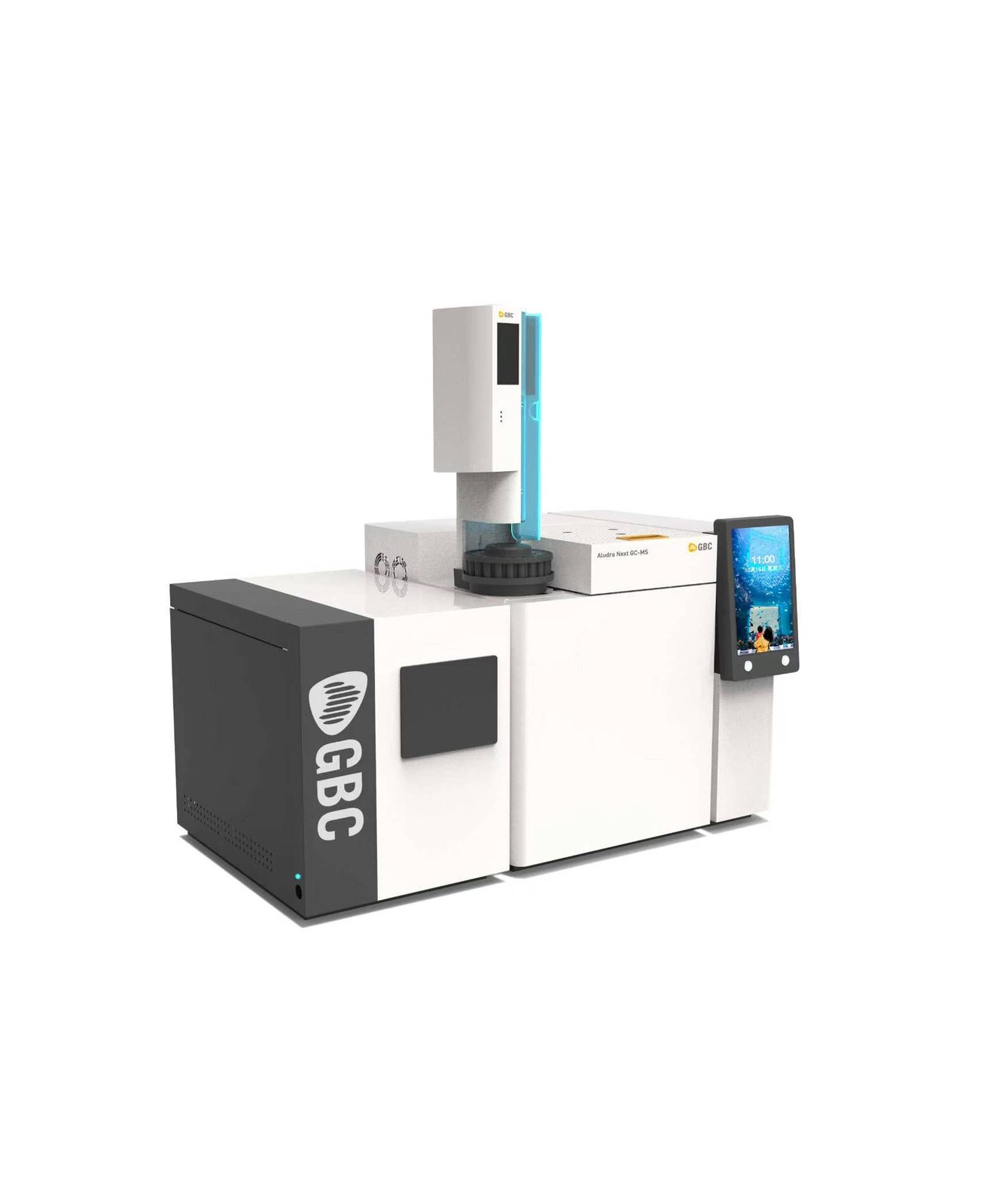

GBC Aludra Next GC-MS
The Aludra Next is a network-enabled GC-MS that pairs the Nebula Plus GC platform with a new-generation mass spectrometer, a 10-inch Android touchscreen and mobile app monitoring.
Key specifications
- Interface
- 10-inch Android touchscreen, mobile app remote control and full PC control
- Split ratio range
- 0 to 12,500:1
- Flow setting range
- 0 to 1250 mL/min
- Temperature range
- Ambient +8 to 460 °C
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
GBC Aludra Next GC-MS
Request a quoteOverview
Product overview
The Aludra Next integrates the Nebula Plus GC with a new mass spectrometer and can be controlled from a computer or directly on the 10-inch touchscreen. The standard EI source uses a dual-alloy filament with uniform heating and a quick-release slide-rail design, so one operator can complete maintenance in under 10 minutes.
GBC cites up to a 30% signal-to-noise improvement from its dual emission modes and lens optimisation, a 1 MHz FPGA data acquisition system, and a 300 L/s turbomolecular pump that supports hydrogen carrier gas. It is compatible with liquid autosamplers, purge-and-trap, headspace, thermal desorption and a direct insertion probe.
Specifications
Technical specifications
13 parameters
Control
- Interface
- 10-inch Android touchscreen, mobile app remote control and full PC control
Inlet
- Split ratio range
- 0 to 12,500:1
- Flow setting range
- 0 to 1250 mL/min
Column oven
- Temperature range
- Ambient +8 to 460 °C
- Maximum heating rate
- 0.1 to 180 °C/min
- Temperature programs
- 24 ramps (44 ramps optional)
- Temperature control accuracy
- < 0.03 °C or <= 0.1%
Mass spectrometer
- Mass range
- 1.5-1100 amu, 0.1 amu increment
- Ionization energy range
- 5-260 eV
- Ion source
- EI (standard), PCI (optional)
- IDL sensitivity
- 1 pg OFN, S/N >= 1500:1
Vacuum
- Turbomolecular pump
- 300 L/s, supports hydrogen carrier gas
Physical
- Dimensions (W x D x H)
- 94 x 52 x 52.8 cm
Features
Key features
- 01
Touchscreen and mobile control
10-inch Android interface plus app monitoring and PC control.
- 02
Fast-maintenance ion source
Dual-alloy filament, quick-release slide rail, under 10 minutes.
- 03
Advanced ion optics
Up to 30% S/N improvement.
- 04
FPGA data acquisition
1 MHz sampling and 1000 Mb Ethernet transfer.
- 05
Hydrogen-capable vacuum system
300 L/s turbomolecular pump.
- 06
Modular expansion
Autosamplers, purge-and-trap, headspace, thermal desorption, DIP.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
