Reference: Cintra 3030
GBC Cintra 3030
The Cintra 3030 is a research-grade double-beam UV-Vis spectrometer covering 190-900 nm with variable bandwidth and enhanced UV sensitivity.
Key specifications
- Photometric system
- Double-beam, direct ratio recording
- Wavelength range
- 190-900 nm
- Spectral bandpass
- 0.2 to 5.0 in 0.1 nm steps
- Light sources
- Tungsten-halogen and deuterium lamps
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
GBC Cintra 3030
Request a quoteOverview
Product overview
The Cintra 3030 offers a variable slit from 0.2 to 5.0 nm in 0.1 nm steps, balancing sensitivity and resolution, with improved stray light, noise and drift specifications. It accepts the full range of GBC UV-Vis accessories.
The module connects to an external PC over USB and uses a Czerny-Turner monochromator with holographic grating and automatic lamp peaking. GBC positions it for specialised and research applications.
Specifications
Technical specifications
13 parameters
Optics
- Photometric system
- Double-beam, direct ratio recording
- Wavelength range
- 190-900 nm
- Spectral bandpass
- 0.2 to 5.0 in 0.1 nm steps
- Light sources
- Tungsten-halogen and deuterium lamps
- Detector
- R928 side-on photomultiplier tube
Performance
- Stray light @220 nm (10 g/L NaI)
- < 0.00077 %T
- Stray light @340 nm (50 g/L NaNO2)
- < 0.00008 %T
- Wavelength accuracy
- ±0.01 nm
- Photometric linearity
- < 0.2% @ 3 Abs
- Photometric drift
- < 0.00013 A/hr
- Baseline flatness
- < 0.00059 A
Physical
- Dimensions (W x D x H)
- 695 x 640 x 350 mm
- Weight
- 42 kg unpacked; 86 kg packed
Features
Key features
- 01
Variable slit width
0.2 to 5.0 nm in 0.1 nm steps.
- 02
Low stray light
< 0.00077 %T at 220 nm.
- 03
Automatic lamp changeover
Selectable wavelength for tungsten-halogen to deuterium switch.
- 04
Accessory compatibility
Accepts the full GBC UV-Vis accessory range.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
Keep exploring
More from GBC Scientific Equipment
GBC Quantima
GBC ICP-OES: 11 L/min argon on typical aqueous work, IIS ignition, slurry and high TDS without dilution, organics without an oxygen accessory.
View product
GBC OptiMass 9600
OA-TOF ICP-MS: 27.12 MHz RF at 500–1500 W, argon <12 L/min, 1–260 amu, >30,000 spectra/s, resolution typically ≥1,200 for 238U.
View product

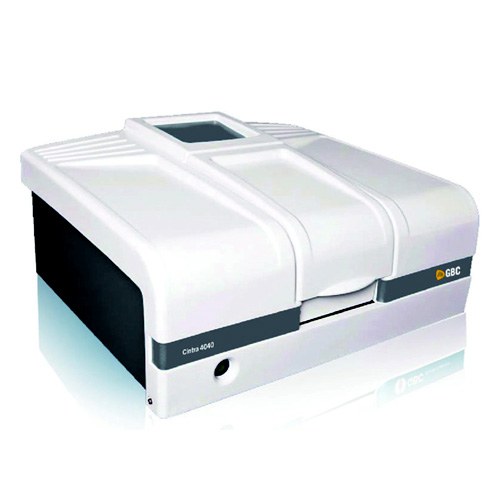

GBC Cintra 4040
