GBC XRD Optics and Detectors
A selection of optics and detectors for the Emma diffractometer: slit optics, polycapillary lens, planar X-ray waveguide resonator, and several detector configurations.
Key specifications
- Divergence slits
- 1, 2 and 3 degrees, plus primary beam Soller slit
- Beam diameter
- 6 mm standard; 10 mm optional
- Xe proportional with graphite monochromator
- Cu or Co monochromator; linear to > 90,000 cps
- Parallel beam / thin film
- Soller collimator with 0.4 degree acceptance angle
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
GBC XRD Optics and Detectors
Request a quoteOverview
Product overview

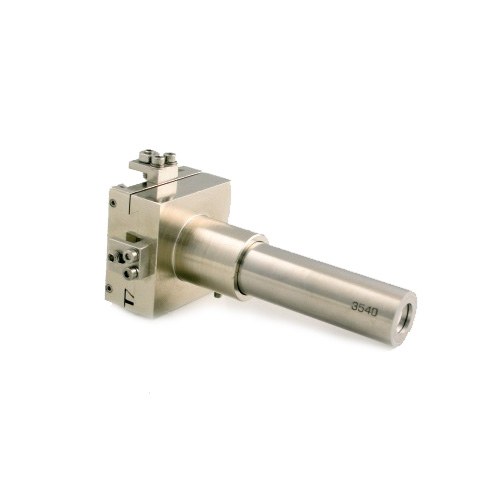

Slit optics are standard, with 1, 2 and 3 degree divergence slits and a primary beam Soller slit. An optional XOS monolithic polycapillary "X-ray lens" suits off-axis alignment such as texture and residual stress work, and a planar X-ray waveguide resonator addresses large d-spacings and less ordered materials.
Detector choices include a Xe proportional detector with Cu or Co graphite monochromator, a parallel beam or thin film detector with a 0.4 degree Soller collimator for use with the polycapillary optic, and a dual or bifurcated arm that keeps focusing and parallel beam setups mounted with software changeover.
Specifications
Technical specifications
4 parameters
Slit optics
- Divergence slits
- 1, 2 and 3 degrees, plus primary beam Soller slit
Polycapillary optics
- Beam diameter
- 6 mm standard; 10 mm optional
Detectors
- Xe proportional with graphite monochromator
- Cu or Co monochromator; linear to > 90,000 cps
- Parallel beam / thin film
- Soller collimator with 0.4 degree acceptance angle
Features
Key features
- 01
Slit optics
Standard divergence optic with 1, 2, 3 degree slits.
- 02
Polycapillary optic
6 mm beam standard for texture and residual stress.
- 03
Planar waveguide resonator
For large d-spacings and less ordered materials.
- 04
Dual or bifurcated arm
Permanent focusing and parallel-beam mounts.
