GBC XRD Stages
A wide selection of sample stages for the Emma diffractometer, from standard and spinning stages to large-sample, autoloader and high/low temperature options.
Key specifications
- Sample holder
- 2 inch diameter
- Maximum sample
- Ingots up to 52 mm diameter and 100 mm long
- Maximum sample
- Up to 150 mm diameter x 20 mm thick
- Capacity
- 10 samples, with optional spin in analysis position
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
GBC XRD Stages
Request a quoteOverview
Product overview

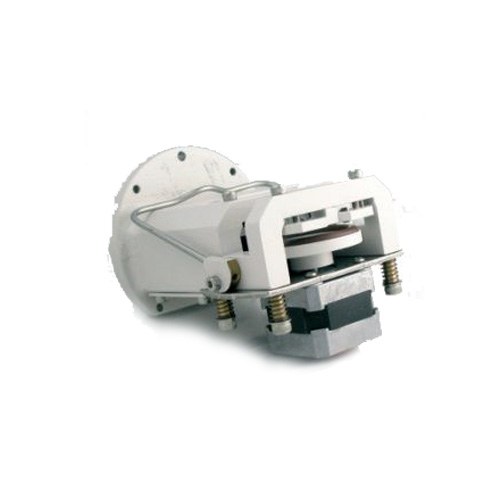

Available stages are the standard stage for 2 inch holders, a spinning stage that reduces preferred orientation, a long sample stage for ingots up to 52 mm diameter and 100 mm long, a capillary spinning stage for Debye-Scherrer geometry, and a large sample stage for bulk samples up to 150 mm diameter by 20 mm thick.
A 10-sample autoloader, a PAAR HTK 2000N high-temperature stage reaching 2300 °C in vacuum, a PAAR TTK 600 low-temperature stage from -10 to +600 °C without cryogenics, and stepping-motor auto slits that keep the irradiated area constant complete the range.
Specifications
Technical specifications
6 parameters
- Sample holder
- 2 inch diameter
- Maximum sample
- Ingots up to 52 mm diameter and 100 mm long
- Maximum sample
- Up to 150 mm diameter x 20 mm thick
- Capacity
- 10 samples, with optional spin in analysis position
- Temperature
- Up to 2300 °C in vacuum
- Temperature
- -10 to +600 °C with air jet cooling, no cryogenics
Features
Key features
- 01
Standard and spinning stages
Spinning reduces preferred orientation effects.
- 02
Bulk sample stages
Long sample and large sample options.
- 03
Auto loader
Ten positions with random access.
- 04
PAAR temperature stages
HTK 2000N to 2300 °C; TTK 600 from -10 to +600 °C.
- 05
Auto slits
Constant irradiated area as theta changes.
