Reference: GEP-SH-CX01
GEP-SH-CX01 Sequencing Electrophoresis Tank
Vertical sequencing electrophoresis tank with a 310 × 330 mm gel area, running up to 96 PCR samples at once for SSR, SSCP and footprinting work.
Key specifications
- External dimensions (L×W×D)
- 470*210*380mm
- Gel area(W×L)
- 310mm*330mm
- Sampling comb
- 68, 100 teeth(The gun for adding samples can be used.)
- Glass area
- 350mm*350mm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
GEP-SH-CX01 Sequencing Electrophoresis Tank
Request a quoteOverview
Product overview

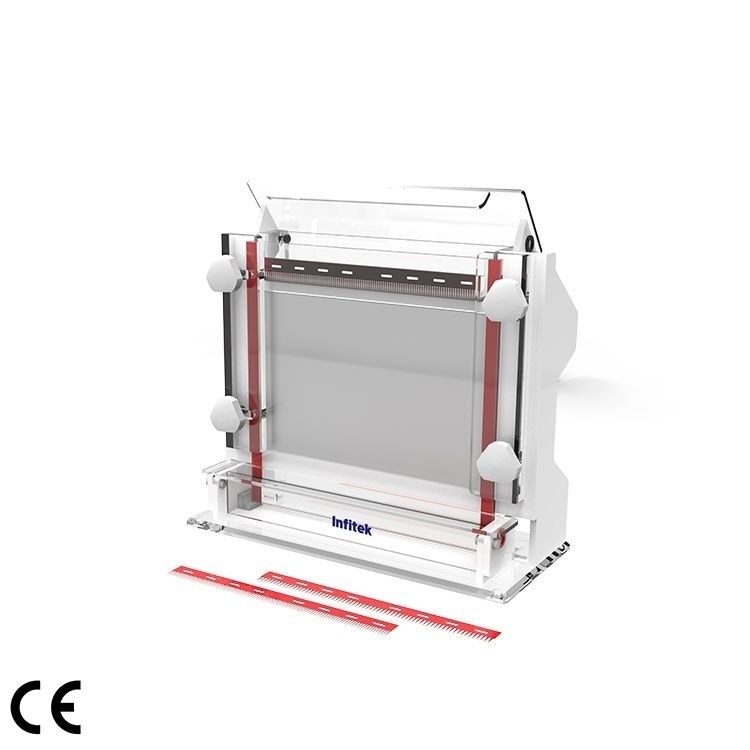

The GEP-SH-CX01 is a sequencing electrophoresis tank for experiments such as SSR, SSCP, HA and DNA footprinting. It accepts 350 × 350 mm glass plates with a gel area of 310 × 330 mm and can run up to 96 PCR samples in a single run.
A specially treated flat aluminum plate spreads heat evenly so bands do not show a smile effect. Red shark tooth combs with 68 and 100 teeth make loading easy to see and reduce cross-contamination between lanes. The assembly is fixed with only four knobs, anti-aging silicone seals prevent leakage, and the total buffer volume is about 750 mL.
The upper tank has a buffer outlet and the lower tank is removable for easy buffer handling. Opening either lid cuts the power, and the electrodes are 99.99% pure platinum. The kit includes concave and flat glass plates, combs, filler strips, a lead and a water pipe.
Specifications
Technical specifications
13 parameters
Specifications
- External dimensions (L×W×D)
- 470*210*380mm
- Gel area(W×L)
- 310mm*330mm
- Sampling comb
- 68, 100 teeth(The gun for adding samples can be used.)
- Glass area
- 350mm*350mm
- Total buffer capacity
- about 750ml
Table 2
- Electrophoresis main tank(main body)
- Quantity: 1
- Concave glass plate
- Quantity: 2
- Flat glass plate
- Quantity: 2
- Shark tooth comb
- Specification: 100 teeth; Quantity: 2
- 68 teeth
- 2
- Filler strip
- Quantity: 4
- Wire
- Quantity: 1
- Water pipe
- Quantity: 1
Features
Key features
- 01
Even heat dissipation
A specially treated flat aluminum plate spreads heat evenly to prevent the smile effect in bands.
- 02
96 samples per run
Up to 96 PCR samples can be electrophoresed in one run to improve throughput.
- 03
Shark tooth combs
Red 68 and 100 tooth combs make loading easy to observe and reduce sample crossover.
- 04
Quick assembly
Only four fastening knobs are needed to secure the plates.
- 05
Leak-free buffer handling
Anti-aging silicone seals prevent leaks, with an upper buffer outlet and a removable lower tank.
- 06
Safety lids and platinum electrodes
Opening the lids cuts the power, and 99.99% platinum electrodes resist corrosion and aging.
