AC-J Series Oil-Free Air Compressor
Oil-free, low-noise air compressors with 30 to 120 L tanks and maximum flow from 152 to 608 L/min at 5 to 8 bar output pressure.
Key specifications
- Voltage/Frequency
- 110V/220V, 50/60Hz
- Power
- AC-J701: 0.75kW; AC-J702: 1.5kW; AC-J703: 2.25kW; AC-J704: 3kW
- Max. Flow
- AC-J701: 152L/min; AC-J702: 304L/min; AC-J703: 456L/min; AC-J704: 608L/min
- Rated Flow @7BAR
- AC-J701: 55L/min; AC-J702: 110L/min; AC-J703: 165L/min; AC-J704: 220L/min
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA

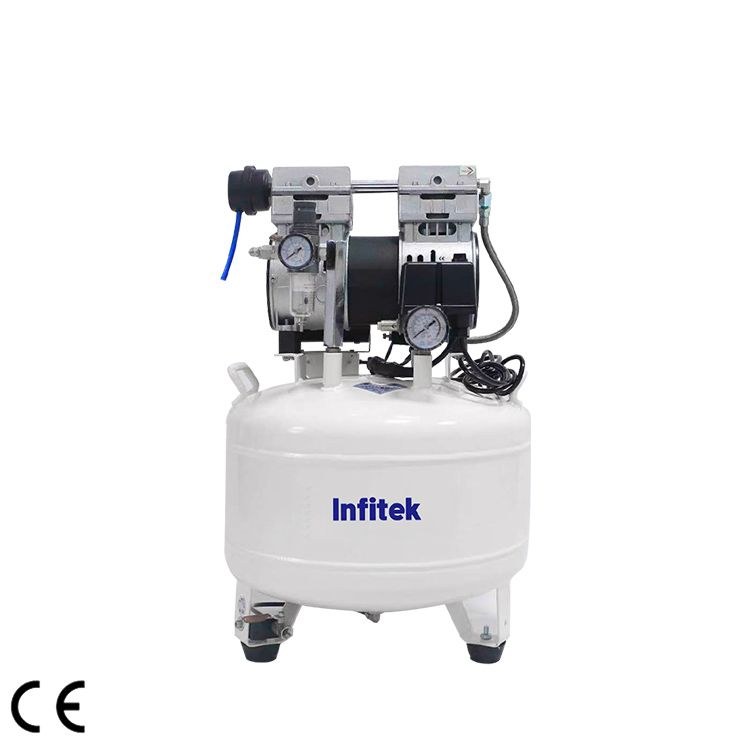

AC-J Series Oil-Free Air Compressor
Request a quoteOverview
Product overview
The AC-J series are oil-free, low-noise air compressors that supply clean air for laboratory instruments, medical equipment, research and industrial use. Four models are available: AC-J701, AC-J702, AC-J703 and AC-J704, with motor power from 0.75 to 3 kW, tank volumes of 30, 60, 90 and 120 L and maximum flow of 152, 304, 456 and 608 L/min.
Rated flow at 7 bar ranges from 55 to 220 L/min, and output pressure is 5 to 8 bar. Noise levels run from 55 dB(A) or less on the AC-J701 to 68 dB(A) or less on the AC-J704. The tank has an internal anti-corrosion coating, and electrical protection devices and anti-rust treatment support safe operation.
The compact design is easy to operate and maintain, and units run on 110 V or 220 V at 50/60 Hz.
Specifications
Technical specifications
9 parameters
Specification
- Voltage/Frequency
- 110V/220V, 50/60Hz
- Power
- AC-J701: 0.75kW; AC-J702: 1.5kW; AC-J703: 2.25kW; AC-J704: 3kW
- Max. Flow
- AC-J701: 152L/min; AC-J702: 304L/min; AC-J703: 456L/min; AC-J704: 608L/min
- Rated Flow @7BAR
- AC-J701: 55L/min; AC-J702: 110L/min; AC-J703: 165L/min; AC-J704: 220L/min
- Gas Tank Volume
- AC-J701: 30L; AC-J702: 60L; AC-J703: 90L; AC-J704: 120L
- Output Pressure
- 5~8bar
- Noise
- AC-J701: ≤55dB(A); AC-J702: ≤62dB(A); AC-J703: ≤65dB(A); AC-J704: ≤68dB(A)
- External Dimension
- AC-J701: 410*410*650mm; AC-J702: 686*410*735mm; AC-J703: 825*410*722mm; AC-J704: 1080*425*755mm
- Net Weight
- AC-J701: 27kg; AC-J702: 49.5kg; AC-J703: 63kg; AC-J704: 87.5kg
Features
Key features
- 01
Oil-free clean air
Oil-free design supplies clean air suitable for instruments and medical equipment.
- 02
Four capacities
Tank volumes of 30, 60, 90 and 120 L with 152 to 608 L/min maximum flow.
- 03
Low noise
Noise from 55 dB(A) or less on the smallest model to 68 dB(A) or less on the largest.
- 04
Anti-corrosion tank
An internal coating protects the air tank against corrosion.
- 05
Electrical protection
Protection devices and anti-rust treatment for safe, reliable running.
