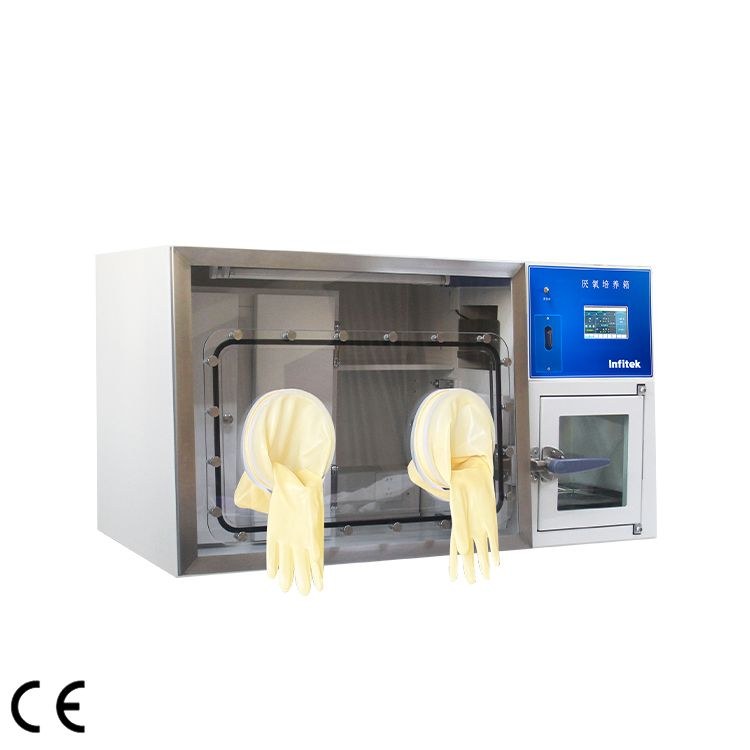

Anaerobic Incubator ICB-AN-T Series

Specifications

Incubation Chamber Temperature Range (℃)

ICB-AN-HYQIII-T: RT+3~60; ICB-AN-HYQIII-TD: RT+3~60; ICB-AN-HYQIII-TZ: 15~60

Temperature Uniformity (℃)

≤±1

Temperature Fluctuation (℃)

≤±0.3

Anaerobic Grade

Oxygen content in operation chamber ≤ 0.1% (without palladium catalyst); Oxygen content in operation chamber ≤ 0.01% (with palladium catalyst).

Anaerobic State Formation Time (Sampling Chamber)

≤ 15 minutes

Anaerobic (Microaerophilic) Formation Method (Sampling Chamber)

Vacuum + Gas displacement (using 99.99% N₂ or mixed gas of 5% H₂, 10% CO₂, and 85% N₂) Vacuum + Gas displacement (using 99.99% N₂ or mixed gas of 5% O₂, 10% CO₂, and 85% N₂)

Anaerobic Process Operation (Sampling Chamber)

One-touch automatic execution

Anaerobic State Formation Time (Operation Chamber)

≤ 1.5 hours (O 2 concentration ≤ 0.3%)

Anaerobic (Microaerophilic) Formation Method (Operation Chamber)

Gas displacement (using 99.99% N₂ or mixed gas of 5% H₂, 10% CO₂, and 85% N₂)+Micro-flow control Gas displacement (using 99.99% N₂ or mixed gas of 5% O₂, 10% CO₂, and 85% N₂)+Micro-flow control

Anaerobic Maintenance Time (Operation Chamber)

Automatic maintenance

Anaerobic Process Operation (Operation Chamber)

One-touch automatic execution

Internal Dimensions of Incubation Chamber (cm)

ICB-AN-HYQIII-T: 42×29×47.5; ICB-AN-HYQIII-TD: 42×29×47.5; ICB-AN-HYQIII-TZ: Operation chamber/ Incubation chamber

Internal Volume of Incubator (L)

ICB-AN-HYQIII-T: 57; ICB-AN-HYQIII-TD: 57; ICB-AN-HYQIII-TZ: 339

Sampling Chamber Dimensions (cm)

40×33×32

Operation Chamber Dimensions (cm)

ICB-AN-HYQIII-T: 94.4×67×74.4; ICB-AN-HYQIII-TD: 94.4×67×74.4; ICB-AN-HYQIII-TZ: 85.2×56.9×70

External Dimensions (cm)

ICB-AN-HYQIII-T: 140×68.8×141.8; ICB-AN-HYQIII-TD: 140×68.8×75; ICB-AN-HYQIII-TZ: 140×68.8×141.8

Temperature Controller

7-inch color touch screen, PID temperature controller

Shelves

2

Electricity

1Ø 220V, 50Hz
