Reference: SP-IAA4530
SP-IAA4530 Atomic Absorption Spectrophotometer
A fully PC-controlled flame atomic absorption spectrophotometer with an 8-lamp automatic turret, 190 to 900 nm range, deuterium and self-absorption background correction and full gas safety interlocks.
Key specifications
- Model
- SP-IAA4530
- Atomization System
- Flame Atomization System
- Wavelength range
- 190-900nm
- Spectral bandwidth
- 0.1, 0.2, 0.4, 1.0 and 2.0 nm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SP-IAA4530 Atomic Absorption Spectrophotometer
Request a quoteOverview
Product overview

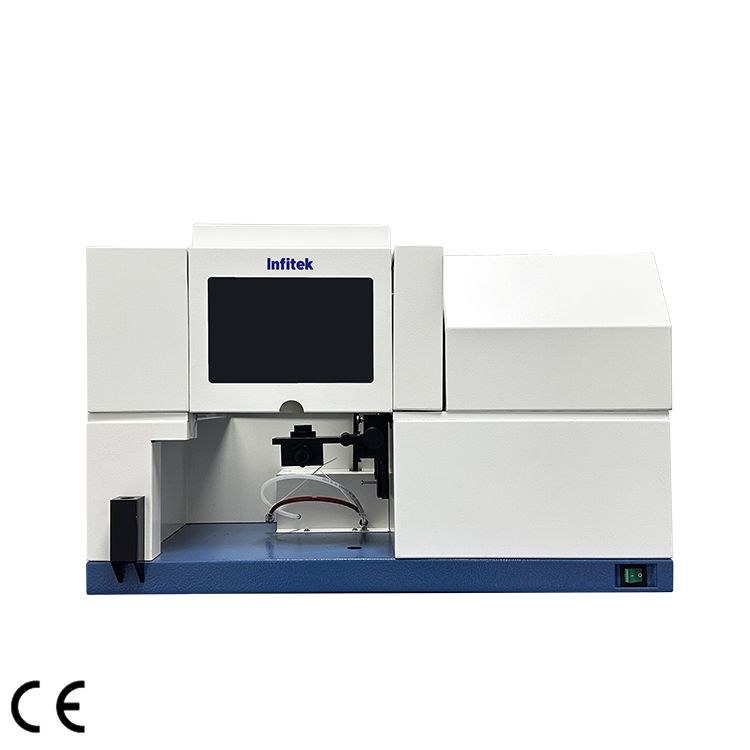

The SP-IAA4530 is an atomic absorption spectrophotometer operated entirely from a PC workstation, measuring by flame absorption and flame emission. It covers 190 to 900 nm with an 1800 lines/mm grating, spectral bandwidths of 0.1, 0.2, 0.4, 1.0 and 2.0 nm, wavelength accuracy of ±0.15 nm and a copper detection limit of 0.004 μg/mL.
An eight-position lamp turret changes lamps automatically and preheats all eight at once. Software handles lamp selection, burner height and position, optical energy, slit selection, wavelength scanning and peak searching, gas flow and automatic ignition. An integrated floating optical platform improves shock resistance and long-term stability, and an all-metal titanium burner is used for the air-acetylene flame.
Background is corrected by deuterium lamp and self-absorption methods. Safety interlocks warn and shut off gas for a wrong burner, gas leakage, low air pressure, power failure or abnormal flame. Results can be stored, exported to Excel and printed, and a graphite furnace accessory with PID temperature control extends the system to trace analysis.
Specifications
Technical specifications
29 parameters
Specifications
- Model
- SP-IAA4530
- Atomization System
- Flame Atomization System
- Wavelength range
- 190-900nm
- Spectral bandwidth
- 0.1, 0.2, 0.4, 1.0 and 2.0 nm
- Wavelength Accuracy
- ±0.15nm
- Wavelength Repeatability
- ≤0.04nm
- Baseline stability
- ≤0.002A/30min (Cu)
- Characteristic Concentration
- 0.02μg/ml/1% (Cu)
- Detection limit
- 0.004μg/ml (Cu)
- Preciseness
- 0.50%
- Grating
- 1800 lines/mm
- Inflamer
- All-metal titanium burner
- Atomizer
- Effective glass atomizer
- Lamp stand
- 8
- D2 background correction ability
- When the background is 1A, the background ability should be deducted not less than 50 times, self absorption background deduction method
- Power supply
- 220V±22V AC
- Package size(mm)
- 840×700×780(Main instrument)
Flame System
- Acetylene air burner
- 100mm
- Ignition dynamic baseline drift
- ≤0.006A/30min
- (Cu) Characteristic viscosity
- ≤0.025μg/ml/1%
- Related standard deviation of the accuracy
- ≤0.5% (Cu, absorbance>0.8A) (detection limit Cu≤0.008μg/ml)
- Safety system
- Can automatically cut off the gas when the pressure is not enough the power is off flame out and unconformity of the burner
SP-IAA4530 Graphite Furnace
- The highest temperature
- 3000℃
- The largest temperature rising speed
- ≥2000℃/s
- Characteristic quantity
- Cd≤0.5×10 -12 g Cu≤0.5×10 -11 g
- Accuracy
- Cu≤3% Cd≤3%
- Size and weight
- 730mm×625mm×700mm 79.3kg
- Safety system
- Over current protection Low air pressure alarm/protection Low cooling water flow alarm/protection
- Power source and power
- 220V±22V AC 7000W
Features
Key features
- 01
Full PC control
Lamp, burner position, slit, wavelength, gas flow and ignition are all set from the software.
- 02
8-lamp automatic turret
Eight lamps change automatically and are preheated simultaneously.
- 03
Background correction
Deuterium lamp and self-absorption methods correct background absorption.
- 04
Floating optical platform
An integrated floating design improves shock resistance and long-term stability.
- 05
Complete safety interlocks
Automatic alarms and gas cut-off for wrong burner, leaks, low air pressure and abnormal flame.
- 06
Data handling
Stores results, exports them to Excel and prints parameters, data and graphs.
