STV-III Series Class N Vertical Autoclave with Drying
Vertical Class N steam autoclaves from 35 L to 100 L with drying, 116-134°C sterilization, quick-open hand wheel lid and safety interlock.
Key specifications
- Volume
- STV-35Ⅲ: 35L; STV-50Ⅲ: 50L; STV-75Ⅲ: 75L; STV-100Ⅲ: 100L
- Power
- STV-35Ⅲ: 2.5kW; STV-50Ⅲ: 3.5kW; STV-75Ⅲ: 4.5kW; STV-100Ⅲ: 4.5kW
- Voltage
- AC 220/110V,50/60Hz
- Design pressure
- 0.25MPa
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA

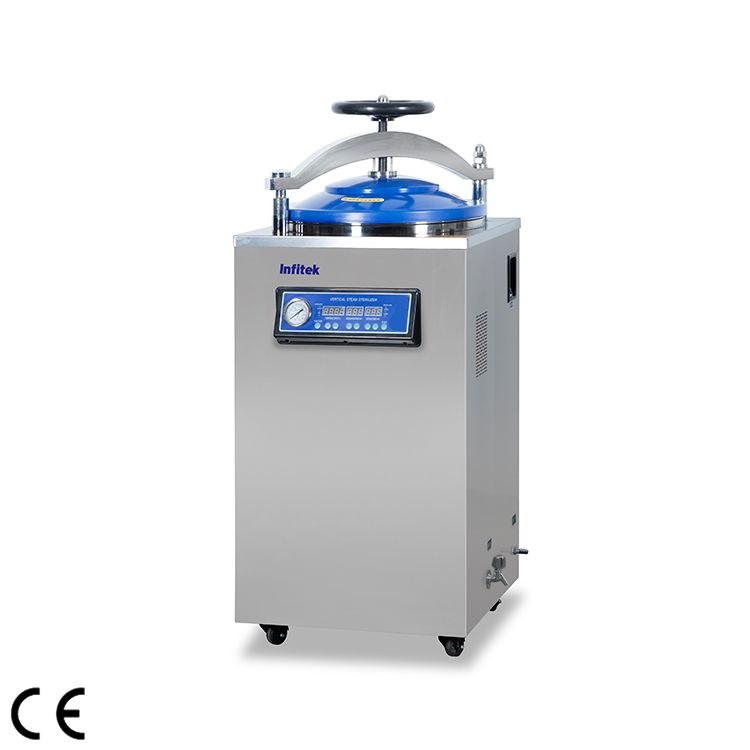

STV-III Series Class N Vertical Autoclave with Drying
Request a quoteOverview
Product overview
The STV-III series are microcomputer-controlled vertical Class N autoclaves with a drying function. Four models are available with chamber volumes of 35, 50, 75 and 100 L, built from high quality stainless steel and supplied with stainless steel buckets, with baskets optional.
Sterilization temperature is adjustable from 116°C to 134°C with ±2°C accuracy, at a rated working pressure of 0.22 MPa. Sterilization time is set from 4 to 120 minutes and drying from 0 to 240 minutes. A three-stage temperature rise and fall program raises steam saturation to improve sterilization, cold air is discharged automatically, and steam is exhausted automatically when the cycle ends.
The lid uses a hand wheel translation quick-opening structure with a self-expanding seal and safety interlock. Protection covers over temperature, over pressure, low water level and dry burning. A buzzer sounds at the end of the cycle, a standard test interface is provided, and automatic water inlet and an external printer are optional.
Specifications
Technical specifications
17 parameters
SPECIFICATIONS
- Volume
- STV-35Ⅲ: 35L; STV-50Ⅲ: 50L; STV-75Ⅲ: 75L; STV-100Ⅲ: 100L
- Power
- STV-35Ⅲ: 2.5kW; STV-50Ⅲ: 3.5kW; STV-75Ⅲ: 4.5kW; STV-100Ⅲ: 4.5kW
- Voltage
- AC 220/110V,50/60Hz
- Design pressure
- 0.25MPa
- Design temperature
- 139℃
- Rated working pressure
- 0.22MPa
- Rated working temperature
- 134℃
- Sterilization temperature
- 116℃~134℃
- Temperature Accuracy
- ±2℃
- Sterilization time setting range
- 4~120 min
- Drying time setting range
- 0-240 min
- Chamber volume(mm)
- STV-35Ⅲ: Ø300*450; STV-50Ⅲ: Ø350*515; STV-75Ⅲ: Ø400*585; STV-100Ⅲ: Ø450*615
- Bucket dimension(mm)
- STV-35Ⅲ: Ø275*395; STV-50Ⅲ: Ø325*235*2; STV-75Ⅲ: Ø375*265*2; STV-100Ⅲ: Ø425*275*2
- Basket dimension(mm)（optional）
- STV-35Ⅲ: Ø270*380; STV-50Ⅲ: Ø320*220*2; STV-75Ⅲ: Ø370*250*2; STV-100Ⅲ: Ø420*265*2
- Outer dimension(mm)
- STV-35Ⅲ: 476*473*990; STV-50Ⅲ: 544*536*1100; STV-75Ⅲ: 586*576*1210; STV-100Ⅲ: 620*610*1275
- Package Dimension(W*D*H)(mm)
- STV-35Ⅲ: 520*560*1120; STV-50Ⅲ: 580*630*1230; STV-75Ⅲ: 670*620*1350; STV-100Ⅲ: 690*650*1410
- N.W. / G.W. (kg)
- STV-35Ⅲ: 65/77; STV-50Ⅲ: 82/105; STV-75Ⅲ: 92/117; STV-100Ⅲ: 113/144
Features
Key features
- 01
Four chamber sizes
35, 50, 75 and 100 L models for different laboratory loads.
- 02
Built-in drying
Drying time can be set from 0 to 240 minutes after sterilization.
- 03
Improved steam saturation
Three-stage temperature rise and fall program enhances the sterilization effect.
- 04
Quick-opening lid
Hand wheel translation structure with self-expanding seal and safety interlock.
- 05
Automatic air and steam handling
Cold air is discharged automatically and steam is exhausted at the end of the cycle.
- 06
Complete protection
Over temperature, over pressure, low water level and anti-dry burning protection.
