Reference: RFT-A7 Series

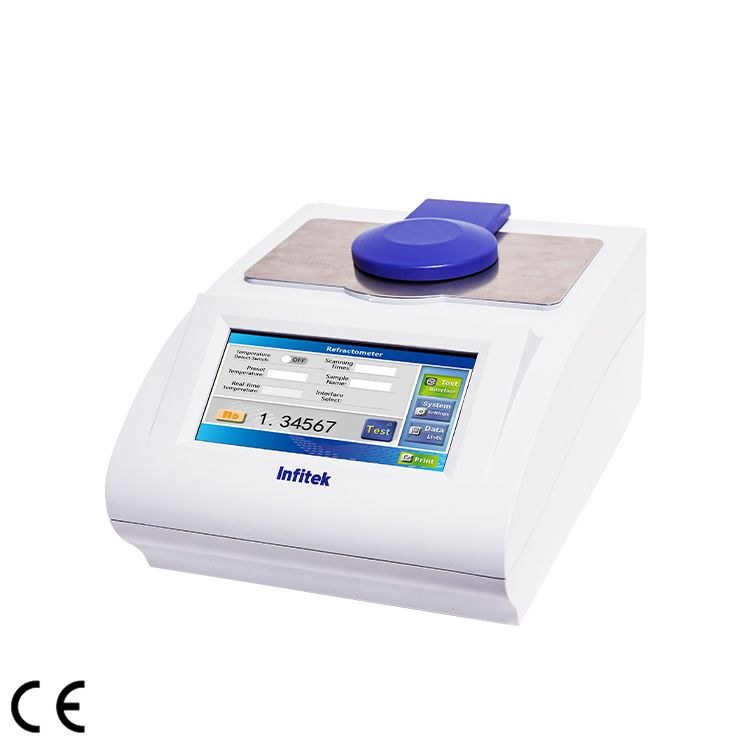

RFT-A7 Series Fully Automatic Refractometer
Automatic digital refractometers measuring 1.30000 to 1.70000 nD with CCD detection, 0.5 mL samples, Peltier temperature control and a 100,000 hour LED source.
Key specifications
- RFT-A756
- RFT-A733 / RFT-A731
- Pharmaceutical Industry
- Testing for glycosides, organic acids, phenols, esters, antibiotics, etc.
- Food and Beverage
- Testing for sauces, condiments, extracts, sugars, and soy products.
- Flavors and Flavors
- Refractive index testing for edible flavorings, tobacco flavorings, and daily-use flavorings.
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
RFT-A7 Series Fully Automatic Refractometer
Request a quoteOverview
Product overview
The RFT-A7 Series measures refractive index and Brix of liquids automatically, giving data that correlates with sucrose mass fraction, soft drink solids, honey water content and product purity. The range covers 1.30000 to 1.70000 nD with 0.00001 nD resolution and ±0.0002 nD accuracy, and 0 to 100% Brix with ±0.1% accuracy, at 589 nm.
Three models are offered. The RFT-A756 has a sapphire prism, Peltier control from 5 to 85°C at ±0.02°C, an 8 inch touch screen, four user levels, electronic signature, LIMS connectivity and an optional 21 CFR Part 11 audit trail. The RFT-A733 uses a high hardness glass prism with Peltier control from 10 to 60°C, and the RFT-A731 is the entry model, both with 7 inch touch screens.
A high resolution CCD system with temperature compensation gives fast, repeatable results from only 0.5 mL, and samples can be recovered. With no moving parts and a 100,000 hour LED, the instruments suit pharmaceutical, food, flavor, petrochemical, metalworking and fine chemical labs, exporting PDF reports to USB or a printer.
Specifications
Technical specifications
35 parameters
RFT-A733/731: 8 industry-standard parameters.
- RFT-A756
- RFT-A733 / RFT-A731
Industry Applications
- Pharmaceutical Industry
- Testing for glycosides, organic acids, phenols, esters, antibiotics, etc.
- Food and Beverage
- Testing for sauces, condiments, extracts, sugars, and soy products.
- Flavors and Flavors
- Refractive index testing for edible flavorings, tobacco flavorings, and daily-use flavorings.
- Petrochemicals
- Refractive index testing for light gasoline, diesel, tire rubber oil, and liquid hydrocarbons.
- Metalworking
- Testing for cutting fluids, rust inhibitors, cleaning fluids, antifreeze, and chillers.
- Fine Chemicals
- Testing for the concentration of inorganic acids, alkalis, and salts; testing for organic chemicals such as alkanes.
- RFT-A756
- : RFT-A733; : RFT-A731
- Range
- 1.30000nD to 1.70000nD
- Max. resolution
- 0.00001nD
- Accuracy
- ±0.0002nD
- Range
- 0% to 100%
- Display resolution
- 0.01%
- Accuracy
- ±0.1%
- Display range
- 0℃ to 100℃ / 0℃ to 90℃ / /
- Control range
- Peltier temperature control: 5℃ to 85℃ / Peltier temperature control: 10℃ to 60℃ / /
- Accuracy
- ±0.02℃ / ±0.1℃ / /
- Min. sample volume
- 0.5mL
- Prism
- Sapphire / High hardness glass / High hardness glass
- Light source
- LED (100,000 hours lifespan)
- Wavelength
- 589nm
- User management permissions
- Four levels / / / /
- Electronic signature
- Yes / / / /
- Audit trail
- Optional FDA software / / / /
- Display
- 8″ color LCD touchscreen / 7″ color LCD touchscreen / 7″ color LCD touchscreen
- Internal storage
- 16G / 1000 sets of data / 1000 sets of data
- User management
- 500 / / / /
- Communication interface
- USB, Keyboard, Mouse, Ethernet / RS232, USB, U disk / RS232, USB, U disk
- Connect PC, LIMS
- Yes
- Printer (Optional)
- Thermal printer Stylus printer / Stylus printer / Stylus printer
- Power supply
- AC 100 to 240V, 50/60Hz, 150W / 220V±22V, 50Hz±1Hz, 50W / 220V±22V, 50Hz±1Hz, 50W
- Product dimensions (L×W×H)
- 430mm×260mm×150mm / 345mm×245mm×165mm / 345mm×245mm×165mm
- Package dimensions (L×W×H)
- 565mm×460mm×295mm / 500mm×330mm×220mm / 500mm×330mm×220mm
- Net weight
- 5kg / 4kg / 4kg
- Gross weight
- 11kg / 9kg / 9kg
Features
Key features
- 01
High-resolution CCD detection
Fast automatic measurements with excellent repeatability and temperature compensation.
- 02
0.5 mL sample volume
A small, non-destructive contact area lets samples be recovered and reused.
- 03
Durable prisms
Sapphire on the RFT-A756 or high hardness glass, resistant to corrosion and scratches.
- 04
Long-life LED source
LED light source rated for more than 100,000 hours, with no mechanical moving parts.
- 05
Data management
Large database with PDF export, USB storage and optional printer.
- 06
Regulatory support
RFT-A756 offers user levels, electronic signature and optional 21 CFR Part 11 audit trail.
