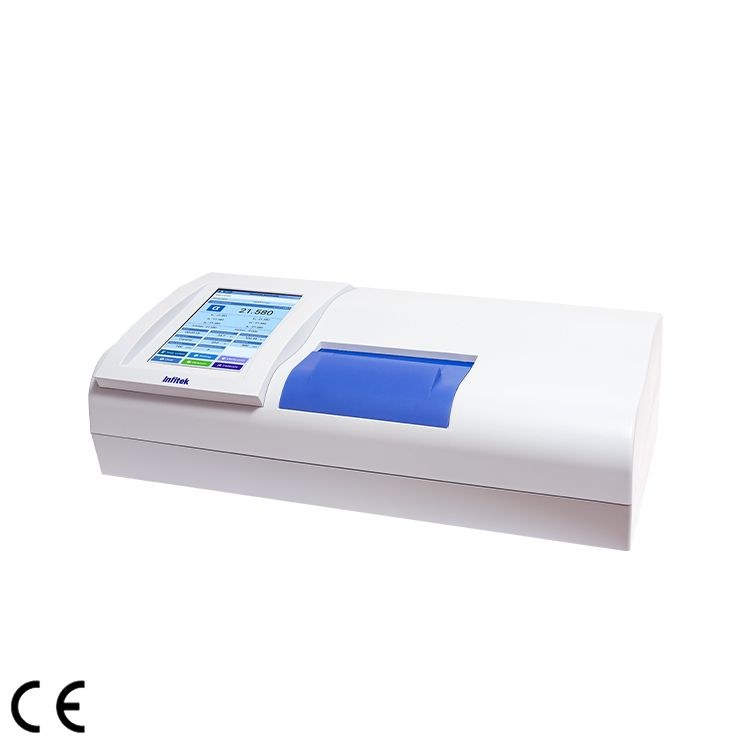

POL-5 Series Fully Automatic High-Speed Polarimeter
Automatic polarimeters with a photoelectric encoder, 8°/s response and 6 readings in 26 seconds, measuring optical rotation, specific rotation, concentration and sugar scale.
Key specifications
- POL-568/537/533
- POL-532/531
- Food and Beverages
- Determination of sucrose, monosodium glutamate, soy sauce, and sugar content
- Agricultural Production
- Determination of antibiotics, hormones, pesticides, and starch
- Petrochemical Industry
- Mineral oil analysis, monitoring of oil fermentation processes
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
POL-5 Series Fully Automatic High-Speed Polarimeter
Request a quoteOverview
Product overview
The POL-5 Series is built on a digital platform in which a high precision photoelectric encoder replaces the worm gear used in conventional polarimeters. This simplifies the mechanics, raises full-range response to 8°/s and completes an average of 6 measurements in 26 seconds, with low noise in standby and operation.
Five models, POL-568, POL-537, POL-533, POL-532 and POL-531, measure optical rotation over ±90° and the International Sugar Scale over ±259°Z, with accuracy from ±0.003° on the POL-568 to ±0.006° on the POL-531 and repeatability of ≤0.002°. Most models include Peltier sample temperature control from 10 to 50°C. A Glan Thompson prism polarizer and an LED source rated for 100,000 hours are used, and the POL-537 offers LED or tungsten halogen versions with up to 8 wavelengths.
The POL-568, POL-537 and POL-533 run an Android system with four user levels, electronic signature and an optional 21 CFR Part 11 audit trail. Applications include sugars, pharmaceuticals, antibiotics, vitamins, amino acids, essential oils and glucose in infusion solutions.
Specifications
Technical specifications
37 parameters
Intelligent System Option, Flexible to Meet Needs
- POL-568/537/533
- POL-532/531
Industry Applications
- Food and Beverages
- Determination of sucrose, monosodium glutamate, soy sauce, and sugar content
- Agricultural Production
- Determination of antibiotics, hormones, pesticides, and starch
- Petrochemical Industry
- Mineral oil analysis, monitoring of oil fermentation processes
- Fragrances and Flavors
- Quality analysis of natural essential oil raw materials such as camphor oil
- Health and Disease Control
- Glucose analysis in medical infusion solutions and diabetes analysis
- Pharmaceutical Industry
- Analysis of antibiotics, vitamins, and amino acids
Specification
- Measuring scale
- POL-568: Optical Rotation Specific Rotation Concentration International Sugar Scale User Defined; POL-537 (Dual wavelength) *: Optical Rotation Specific Rotation Concentration International Sugar Scale User Defined; POL-537 (Multiple wavelength) **: Optical Rotation Specific Rotation Concentration International Sugar Scale User Defined
- Measuring range
- ±90° (OR) ±259°Z (ISS)
- Accuracy
- POL-568: ±0.003°; POL-537 (Dual wavelength) *: ±0.004°; POL-537 (Multiple wavelength) **: ±0.004°; POL-533: ±0.004°; POL-532: ±0.004°; POL-531: ±0.006°
- Repeatability
- ≤0.002°
- Min. transmission
- POL-568: 0.01%; POL-537 (Dual wavelength) *: 0.1%; POL-537 (Multiple wavelength) **: 0.1%; POL-533: 0.05%; POL-532: 0.1%; POL-531: 0.1%
- Resolution
- POL-568: 0.0001°; POL-537 (Dual wavelength) *: 0.001°; POL-537 (Multiple wavelength) **: 0.001°; POL-533: 0.001°; POL-532: 0.001°; POL-531: 0.001°
- Available wavelenght
- POL-568: 589nm; POL-537 (Dual wavelength) *: Standard: 589nm/880nm Optional: 365nm/405nm/436nm/546nm/578nm/633nm; POL-537 (Multiple wavelength) **: Standard: 589nm/546nm Optional: 365nm/405nm/436nm/578nm/633nm; POL-533: 589nm; POL-532: 589nm; POL-531: 589nm
- Response speed
- 8°/sec.
- Measuring time
- 6 times/26 sec.
- Temperature control range
- POL-568: Peltier temperature control: 10℃ to 50℃; POL-537 (Dual wavelength) *: Peltier temperature control: 10℃ to 50℃; POL-537 (Multiple wavelength) **: Peltier temperature control: 10℃ to 50℃; POL-533: Peltier temperature control: 10℃ to 50℃; POL-532: Peltier temperature control: 10℃ to 50℃; POL-531: /
- Temperature accuracy
- POL-568: ±0.2℃; POL-537 (Dual wavelength) *: ±0.2℃; POL-537 (Multiple wavelength) **: ±0.2℃; POL-533: ±0.2℃; POL-532: ±0.2℃; POL-531: /
- Calibration
- Multi-point automatic calibration
- User management permissions
- POL-568: Four levels; POL-537 (Dual wavelength) *: Four levels; POL-537 (Multiple wavelength) **: Four levels; POL-533: Four levels; POL-532: /; POL-531: /
- Electronic signature
- POL-568: Yes; POL-537 (Dual wavelength) *: Yes; POL-537 (Multiple wavelength) **: Yes; POL-533: Yes; POL-532: /; POL-531: /
- Audit trail
- POL-568: Optional FDA software; POL-537 (Dual wavelength) *: Optional FDA software; POL-537 (Multiple wavelength) **: Optional FDA software; POL-533: Optional FDA software; POL-532: /; POL-531: /
- Light source
- POL-568: LED (100,000 hours lifespan) Precision interference filter; POL-537 (Dual wavelength) *: LED (100,000 hours lifespan) Precision interference filter; POL-537 (Multiple wavelength) **: Tungsten halogen lamp (20W); POL-533: LED (100,000 hours lifespan) Precision interference filter; POL-532: LED (100,000 hours lifespan) Precision interference filter
- Sample cell length
- POL-568: Standard: 100mm (regular) 200mm (regular) 100mm (temperature control) Optional: 50mm (regular) 200mm (temperature control); POL-537 (Dual wavelength) *: Standard: 100mm (regular) 200mm (regular) 100mm (temperature control) Optional: 50mm (regular) 200mm (temperature control)
- Display
- POL-568: 10.1″ color LCD touchscreen; POL-537 (Dual wavelength) *: 10.1″ color LCD touchscreen; POL-537 (Multiple wavelength) **: 10.1″ color LCD touchscreen; POL-533: 10.1″ color LCD touchscreen; POL-532: 8″ color LCD touchscreen; POL-531: 8″ color LCD touchscreen
- Operating system
- POL-568: Android; POL-537 (Dual wavelength) *: Android; POL-537 (Multiple wavelength) **: Android; POL-533: Android; POL-532: /; POL-531: /
- Internal storage
- POL-568: 128G; POL-537 (Dual wavelength) *: 128G; POL-537 (Multiple wavelength) **: 128G; POL-533: 128G; POL-532: 10,000 sets of data; POL-531: 10,000 sets of data
- User management
- POL-568: 500; POL-537 (Dual wavelength) *: 500; POL-537 (Multiple wavelength) **: 500; POL-533: 500; POL-532: /; POL-531: /
- Method management
- POL-568: 1000; POL-537 (Dual wavelength) *: 1000; POL-537 (Multiple wavelength) **: 1000; POL-533: 1000; POL-532: 30; POL-531: 30
- Communication interface
- POL-568: RS232, USB, U disk, Keyboard, Mouse, Wifi, Ethernet; POL-537 (Dual wavelength) *: RS232, USB, U disk, Keyboard, Mouse, Wifi, Ethernet; POL-537 (Multiple wavelength) **: RS232, USB, U disk, Keyboard, Mouse, Wifi, Ethernet; POL-533: RS232, USB, U disk, Keyboard, Mouse, Wifi, Ethernet; POL-532: RS232, USB, U disk; POL-531: RS232, USB, U disk
- Connect PC, LIMS
- Yes
- Printer (Optional)
- POL-568: Thermal printer Stylus printer Wifi printer; POL-537 (Dual wavelength) *: Thermal printer Stylus printer Wifi printer; POL-537 (Multiple wavelength) **: Thermal printer Stylus printer Wifi printer; POL-533: Thermal printer Stylus printer Wifi printer; POL-532: Thermal printer; POL-531: Thermal printer
- Power supply
- 220V±22V, 50Hz±1Hz, 200W
- Product dimensions (L×W×H)
- 702mm×376mm×240mm
- Package dimensions (L×W×H)
- 880mm×530mm×490mm
- Net weight
- 21kg
- Gross weight
- 36kg
Features
Key features
- 01
High-speed measurement
Response speed of 8°/s and 6 measurements in about 26 seconds.
- 02
Photoelectric encoder
Replaces the worm gear for a simpler, quieter and more reliable mechanism.
- 03
Multiple measuring scales
Optical rotation, specific rotation, concentration, sugar scale and user-defined modes.
- 04
Wavelength options
POL-537 offers up to 8 wavelengths with LED or tungsten halogen sources.
- 05
Peltier temperature control
Sample temperature control from 10 to 50°C at ±0.2°C on most models.
- 06
Compliance features
User levels, electronic signature and optional 21 CFR Part 11 audit trail on upper models.
