ASC-TCP Automatic Seed Counter
An automatic counter for seeds and particles from 0.7 to 12 mm, with ±2‰ accuracy, free and batch counting modes and automatic slow-down near the target.
Key specifications
- Count Range
- 0.7-12mm
- Count Accuracy
- ±2‰
- Count Speed
- ≥1000 /3min (Sesame)
- Counting Range
- 1~99999
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA

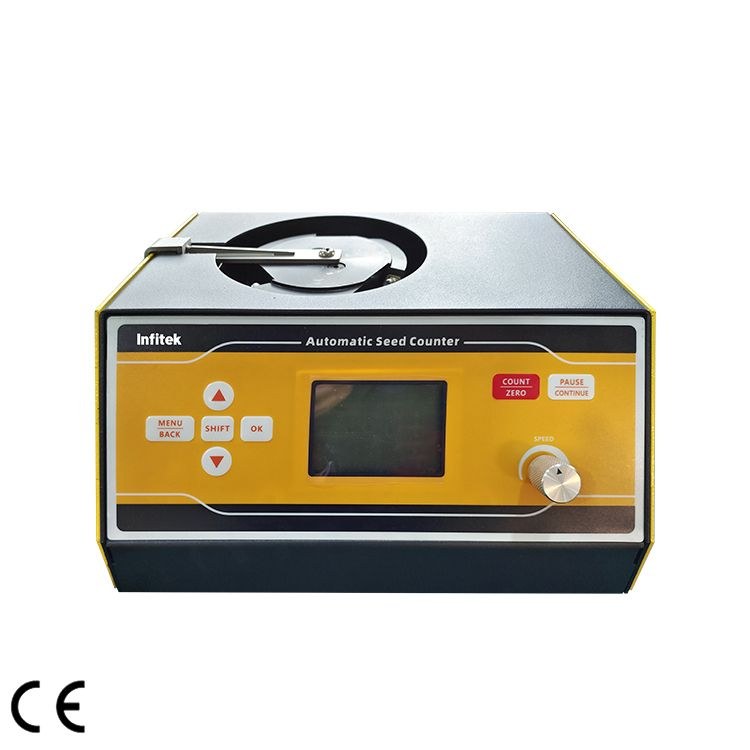

ASC-TCP Automatic Seed Counter
Request a quoteOverview
Product overview
The ASC-TCP automatically counts grains and other small particles to a set number. In agriculture it is mainly used for rice, wheat, sorghum, corn and vegetable seeds (except tomato seeds), and it also handles feed pellets, diamonds and tablets. It accepts particles from 0.7 to 12 mm and counts at least 1000 sesame seeds in 3 minutes with an accuracy of ±2‰.
Two modes are available: free counting and bulk counting, each from 1 to 99,999. Counting speed is adjustable, sensitivity levels match different particle sizes, and the unit slows down automatically as the count approaches the set number. If no particles are detected on the plate for 60 seconds, the motor stops to protect itself.
An LCD screen shows the mode, counting time, sensitivity level and count. The compact 285 × 210 × 176 mm unit weighs 5 kg, works continuously for at least 5 hours and operates from -10 to 50°C.
Specifications
Technical specifications
13 parameters
Specifications
- Count Range
- 0.7-12mm
- Count Accuracy
- ±2‰
- Count Speed
- ≥1000 /3min (Sesame)
- Counting Range
- 1~99999
- Bulk Counting
- 1-99999
- Noise
- <70db
- Power
- AC110V /60Hz and AC 220V /50Hz
- Continuous working time
- ≥ 5Hr
- Net Weight
- 5kg
- Gross Weight
- 6.5kg
- Packing Dimensions
- 400*350*260mm
- Size of Machine
- 285*210*176mm
- Operation Environment
- -10℃- 50℃, <85% RH
Features
Key features
- 01
Free and bulk counting
Two counting modes, each programmable from 1 to 99,999.
- 02
±2‰ accuracy
Sensitivity levels for different particle sizes keep counts accurate.
- 03
Automatic deceleration
Speed reduces automatically as the count nears the set number.
- 04
Motor protection
The motor stops after 60 seconds without particles on the plate.
- 05
Wide application
Counts crop and vegetable seeds, feed, diamonds and tablets from 0.7 to 12 mm.
