Reference: PH-B100BD

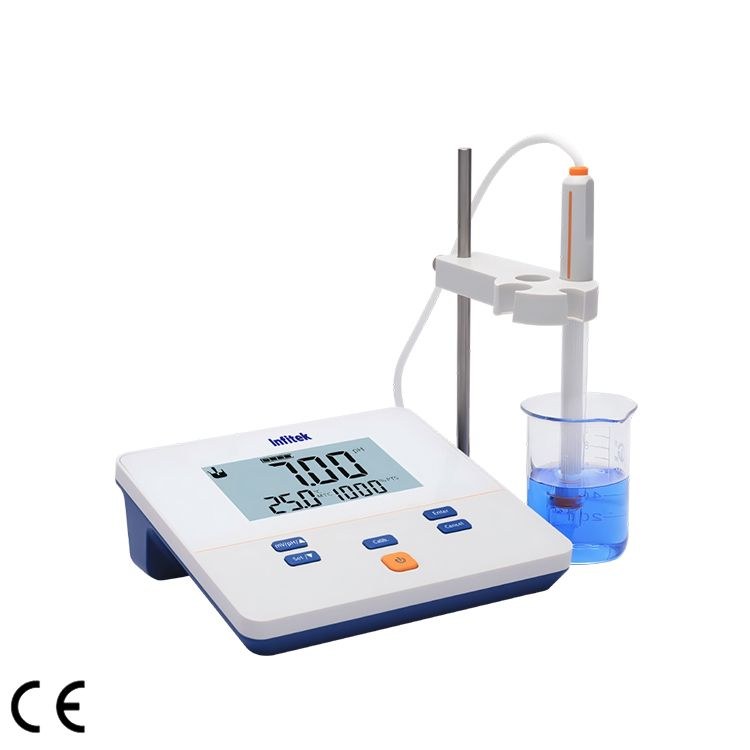

PH-B100BD Benchtop pH Meter
Benchtop pH/mV meter with a 6-inch LCD, 1 to 2 point auto or manual calibration and IP54 protection, measuring 0.00 to 14.00 pH.
Key specifications
- Parameters
- pH/mV
- pH
- Range / 0.00~14.00pH
- Resolution
- 0.01pH
- Accuracy
- ±0.05pH
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
PH-B100BD Benchtop pH Meter
Request a quoteOverview
Product overview
The PH-B100BD is a benchtop meter for pH and mV measurement. It covers 0.00 to 14.00 pH with 0.01 pH resolution and ±0.05 pH accuracy, and -1400 to 1400 mV with 1 mV resolution, shown on a 6.0-inch backlit LCD.
Calibration uses 1 or 2 points in automatic or manual mode. The meter automatically recognizes NIST buffers at pH 4.01, 7.00 and 10.01, while manual calibration allows custom standard solutions. Manual temperature compensation, a BNC electrode input and selectable auto shutdown times complete the setup, and the housing is rated IP54.
Packages include an E-201 pH combination electrode and NIST buffer powders, with a second package adding an electrode clip assembly and stem. It is suited to routine pH checks in teaching, quality control and general laboratories.
Specifications
Technical specifications
18 parameters
Specifications
- Parameters
- pH/mV
- pH
- Range / 0.00~14.00pH
- Resolution
- 0.01pH
- Accuracy
- ±0.05pH
- Calibration Points
- Up to 2
- Standard Recognition
- NIST buffers (pH4.01, pH7.00, pH10.01)
- mV
- Range / -1400~1400mV
- Resolution
- 1mV
- Accuracy
- ±0.1%FS
- Measurement
- Reading Mode / Continuous
- Temp. Compensation
- MTC
- Inputs
- pH Electrode / BNC (Q9)
- Display options
- Backlight / Yes
- Auto Shutdown
- off, 300 Sec, 600 Sec, 900 Sec, 1200 Sec, 1500 Sec, 1800 Sec, 2100 Sec, 2400 Sec, 2700 Sec, and 3600 Sec.
- IP Rating
- IP54
- General
- Power / EU Power Adapter (Input: AC 230V/50Hz; Output: DC 12V/1000mA). Configurable power adapter option available.
- Dimensions
- 200×160×63 mm
- Net Weight
- 600g (1.32 lb)
Features
Key features
- 01
6-inch LCD display
Large backlit screen for easy reading on the bench.
- 02
Auto or manual calibration
1 to 2 point calibration with automatic NIST buffer recognition or custom standards.
- 03
pH and mV measurement
Covers 0.00 to 14.00 pH and -1400 to 1400 mV.
- 04
IP54 protection
Splash-resistant housing for everyday laboratory use.
- 05
Supplied with electrode
Packages include an E-201 combination electrode and NIST buffer powders.
