Reference: MSC-B400W

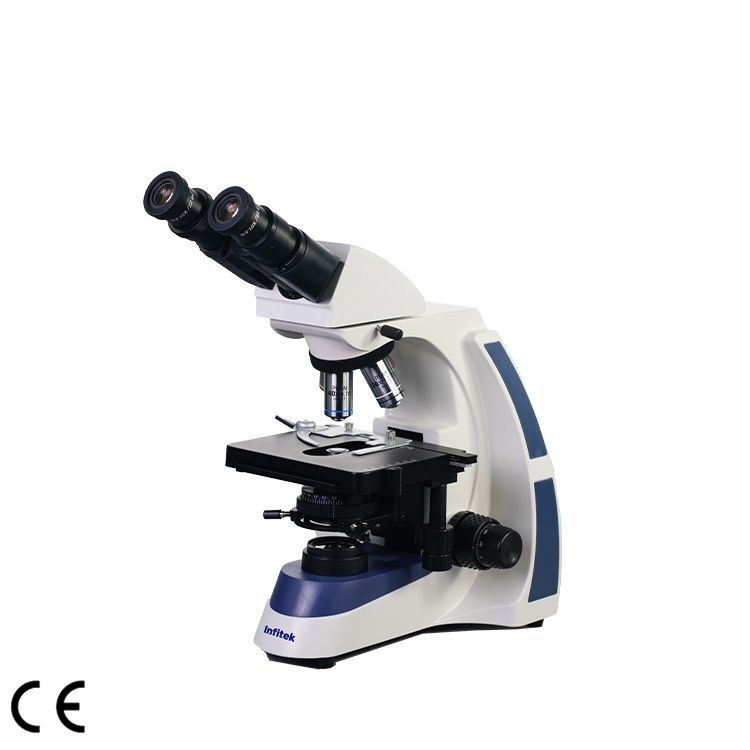

MSC-B400W Biological Microscope
An infinity-optics binocular biological microscope with 40X to 1000X magnification, plan achromatic objectives, Kohler illumination and a two-colour LED light source.
Key specifications
- Model
- MSC-B400W
- Optics
- Infinity optical system
- Observation Tube
- Tilting binocular, Interpupillary 55-75mm
- Viewing Head
- Siedentopf head, inclined at 30°
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
MSC-B400W Biological Microscope
Request a quoteOverview
Product overview
The MSC-B400W is a biological microscope built on a UIS infinity optical system and designed to be expandable, accepting vertical illumination, fluorescence and other accessories. It provides 40X to 1000X magnification with 10X plan field eyepieces (φ22 mm) and infinity plan achromatic objectives of 4X, 10X, 40X and 100X (oil) on a quadruple nosepiece.
The Siedentopf binocular head is inclined at 30°, rotates 360° and offers interpupillary adjustment from 55 to 75 mm. A double-layer mechanical stage of 140 × 160 mm moves 76 × 45 mm, and coaxial coarse and fine focusing has a 30 mm range with 0.002 mm fine graduation, tension adjustment and a limit stop.
An Abbe N.A. 1.25 condenser with iris diaphragm and Kohler illumination are lit by a two-colour LED that switches between yellow and white light with adjustable brightness, and blue and green filters are included. Darkfield is available as an option.
Specifications
Technical specifications
13 parameters
Color reproduction, high resolution
- Model
- MSC-B400W
- Optics
- Infinity optical system
- Observation Tube
- Tilting binocular, Interpupillary 55-75mm
- Viewing Head
- Siedentopf head, inclined at 30°
- Eyepiece
- Plan field eyepiece, 10X, φ22mm
- Objective
- Plane infinite distance objective 4X, 10X, 40X, 100X (oil)
- Nosepiece
- Quadruple nosepiece
- Magnification
- 40X-1000X
- Stage
- Double layers mechanical stage Size: 140x160mm, Range: 76x45mm, ruler: 0.1mm
- Focusing
- 30mm Coaxial coarse and fine focus adjustment Fine focusing scale 0.002mm
- Condenser
- Abbe N.A.1.25 condenser with Iris diaphragm, dark field (Optional)
- Filter
- Blue, Green
- Light Source
- LED two-color electric light source, yellow and white light switching, Kohler lighting, adjustable brightness
Features
Key features
- 01
UIS infinity optics
Infinity optical system designed for expansion with vertical illumination and fluorescence devices.
- 02
40X to 1000X magnification
Plan achromatic 4X, 10X, 40X and 100X (oil) objectives with 10X plan field eyepieces.
- 03
Two-colour LED lighting
Switch between yellow and white light with adjustable brightness and Kohler illumination.
- 04
Large mechanical stage
Double-layer 140 × 160 mm stage with a 76 × 45 mm moving range.
- 05
Precise coaxial focusing
30 mm coarse and fine focusing with 0.002 mm graduation, tension adjustment and limit stop.
