dDISP Electronic Bottle-Top Dispenser
Electronic bottle-top dispenser with digital control, a 0.1 to 99.9 mL volume range and a remote control panel, quality controlled to DIN EN ISO 8655.
Key specifications
- Volume Range
- 0.1-99.9mL, Max piston lift is 10mL, resolution is 100μL
- Volume Accuracy
- Dispenser: R = 10mL ±30μL; CV = 10ml ±10μL Stepper: R = 1mL ±6μL; CV = 1ML ±9μL
- Operating Temperature Range
- 10℃-30℃
- Quality Control
- DIN EN ISO 8655
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
dDISP Electronic Bottle-Top Dispenser
Request a quoteOverview
Product overview

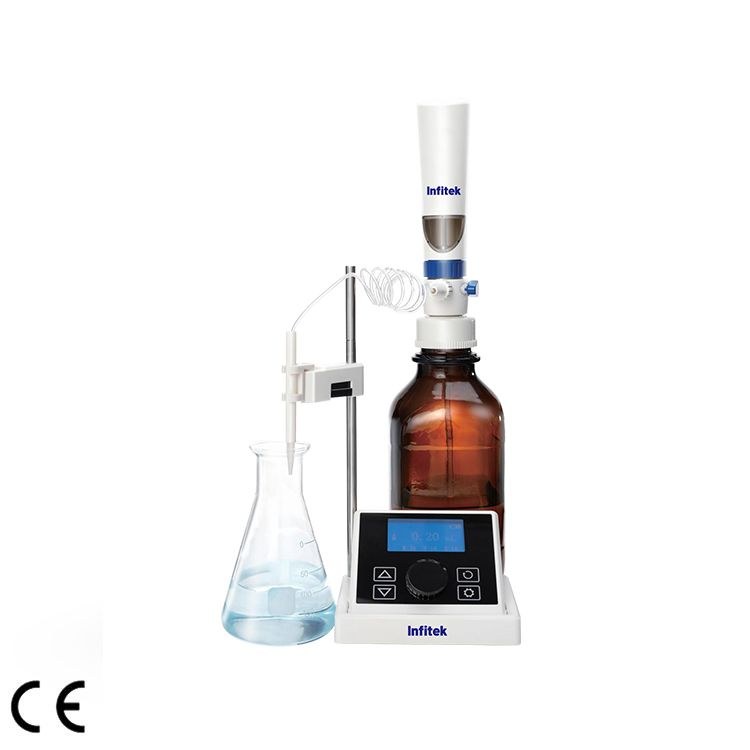

The dDISP is an electronic bottle-top dispenser for dispensing reagents directly from the bottle. It covers a volume range of 0.1 to 99.9 mL with a maximum piston lift of 10 mL and 100 μL resolution, and is quality controlled to DIN EN ISO 8655.
Digital electronic control provides fatigue-free operation, and a remote control panel lets the user start dispensing without touching the instrument, avoiding manual disturbance during operation. Two modes are available: traditional dispensing, where liquid is dispensed continuously, and a stepper function for dispensing a series of aliquots.
The dispenser operates between 10 and 30°C and suits repetitive reagent dosing in analytical, quality control and teaching laboratories.
Specifications
Technical specifications
5 parameters
Stepper Function, for dispensing series
- Volume Range
- 0.1-99.9mL, Max piston lift is 10mL, resolution is 100μL
- Volume Accuracy
- Dispenser: R = 10mL ±30μL; CV = 10ml ±10μL Stepper: R = 1mL ±6μL; CV = 1ML ±9μL
- Operating Temperature Range
- 10℃-30℃
- Quality Control
- DIN EN ISO 8655
- Control Type
- External control
Features
Key features
- 01
Wide volume range
Dispenses 0.1 to 99.9 mL with 100 μL resolution.
- 02
Electronic control
Digital operation removes the effort of manual priming and dispensing.
- 03
Remote control panel
Start dispensing externally to avoid disturbing the setup.
- 04
Two dispensing modes
Continuous dispensing or stepper mode for series of aliquots.
- 05
ISO 8655 quality control
Accuracy verified to DIN EN ISO 8655.
