Reference: RMT-FA398

Fully Automated Rotary Microtome RMT-FA398

Fully automated rotary microtome for paraffin sections from 0.25 to 100 μm, with motorized sectioning and trimming and a 70 mm vertical stroke.

Key specifications

Model
RMT-FA398
Section Thickness Setting Range
0.25—100μm 0.25—2.5μm increment 0.25μm 2.5—5μm increment 0.5μm 5.0—10μm increment 1μm 10—30μm increment 2μm 30—60μm increment 5μm 60—100μm increment 10μm
Trimming Thickness Setting Range
1—600μm 1—10μm increment 1μm 10—20μm increment 2μm 20—50μm increment 5μm 50—150μm increment 10μm 150—600μm increment 50μm
Retraction Setting Range
0—50μm ( 0 is off ) 5-10-15—50 (optional)
  • Configured to your application by our specialists
  • Installed and commissioned on site
  • Training and after-sales support across Jordan, the GCC and MENA

Overview

Product overview

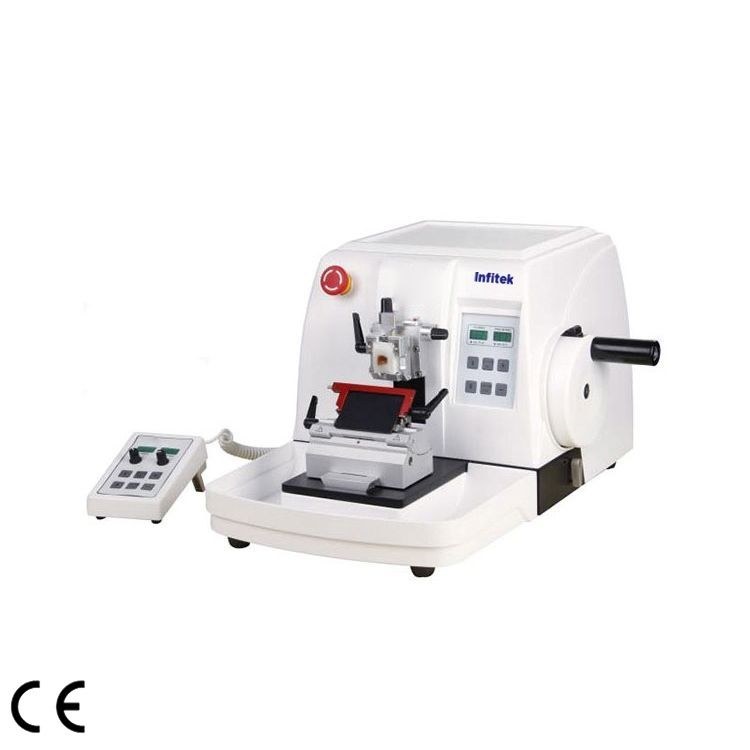

The RMT-FA398 is a fully automated rotary microtome for paraffin and conventional sectioning. Section thickness is set from 0.25 to 100 μm in graded increments starting at 0.25 μm, trimming from 1 to 600 μm, and retraction from 0 to 50 μm. Specimens up to 39 × 40 mm are held with a horizontal feed of 28 mm and a vertical stroke of 70 mm.

An intelligent feed system switches quickly between manual and automatic sectioning, with continuously adjustable automatic speed and slow and fast feed rates of 1500 and 3500 μm/s. A precision screw mechanism drives the feed, and a green digital display shows section thickness, trimming thickness and speed. The automatic controller can be placed on either side, and semi-automatic sectioning remains available when it is off.

Safety features include emergency braking, alarms, drive overload protection and auto-sleep. The hand wheel locks in any position, the blade holder moves laterally to use the full blade length, a red guard covers the blade, and specimen clamps for paraffin blocks or cassettes change quickly.

Specifications

Technical specifications

20 parameters

Specifications

Model
RMT-FA398
Section Thickness Setting Range
0.25—100μm 0.25—2.5μm increment 0.25μm 2.5—5μm increment 0.5μm 5.0—10μm increment 1μm 10—30μm increment 2μm 30—60μm increment 5μm 60—100μm increment 10μm
Trimming Thickness Setting Range
1—600μm 1—10μm increment 1μm 10—20μm increment 2μm 20—50μm increment 5μm 50—150μm increment 10μm 150—600μm increment 50μm
Retraction Setting Range
0—50μm ( 0 is off ) 5-10-15—50 (optional)
Minimum Setting of Sectioning Thickness
0.25μm
Horizontal Feed
28mm
Vertical Specimen Stroke
70mm
Maximum movement of tool holder base
60mm (front to back)
Maximum left and right movement of the knife holder
23mm
Specimen Orientation
XY – 8°
Maximum Specimen Size
Standard wax block clip 39mm×40mm （Other sizes available）
Feed rate
slow speed: 1500um/s, fast speed: 3500um/s
Automatic sectioning speed
adjustable from level 0 to 15
Emergency braking system
Yes
Slice accuracy
±5%
Automatic slicing speed
adjustable from 0-15 levels
Working Voltage
AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power
150W
Dimensions
580× 475× 340mm(W×D×H)
Net Weight
41kg
Features

Key features

  • 01

    0.25 to 100 μm sections

    Graded thickness settings from 0.25 μm, with trimming from 1 to 600 μm.

  • 02

    Manual or automatic modes

    Quick switching between manual and automated sectioning with adjustable speed.

  • 03

    Precision screw feed

    Screw motion mechanism for accurate, repeatable feed.

  • 04

    Flexible controller

    Automatic sectioning controller can be mounted on the left or right side.

  • 05

    Full blade use

    Laterally movable blade holder uses three segments of the blade without touching it.

  • 06

    Safety systems

    Emergency braking, alarms, overload protection, auto-sleep and a lockable hand wheel.
