Reference: BSC-IIB2-5J

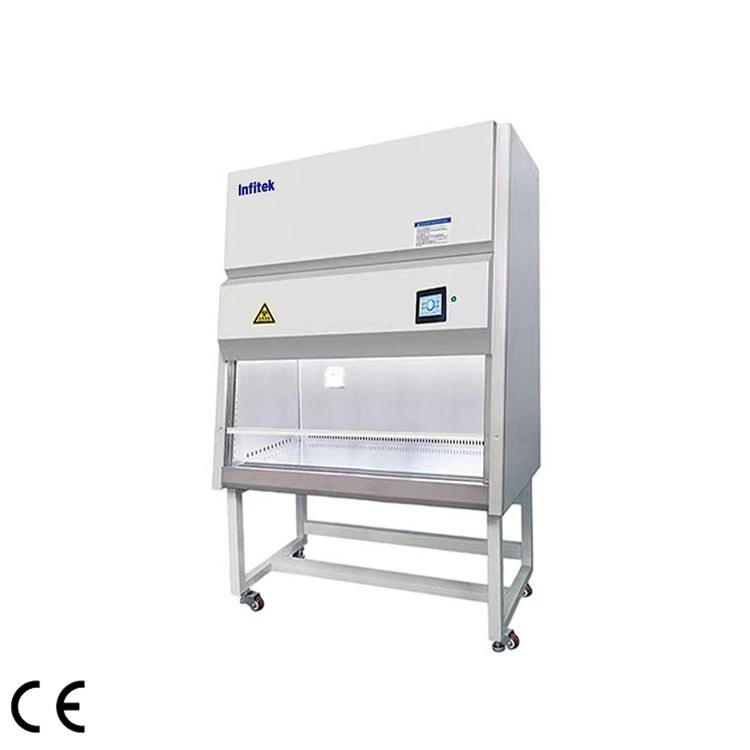

Class II Type B2 Biosafety Cabinet BSC-IIB2-5J
Class II Type B2 biosafety cabinet with ULPA filtration and a 100% exhaust and no recirculation airflow pattern, protecting the operator, the sample and the environment.
Key specifications
- Model
- BSC-IIB2-5J
- Classification
- Class II Type B2
- Cleanliness level
- ISO level 4
- External Dimensions(W*D*H)(mm)
- 1800*760*2200
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Class II Type B2 Biosafety Cabinet BSC-IIB2-5J
Request a quoteOverview
Product overview
The BSC-IIB2-5J is a Class II Type B2 biosafety cabinet for biosafety and other laboratories that need to protect personnel, test samples and the environment. It is suited to work with pathogens of risk levels 1, 2 and 3 and reaches ISO level 4 cleanliness inside the work zone.
The cabinet uses a vertical laminar negative pressure design with 100% exhaust and no recirculation. Two ULPA (U15) filters give a filtration efficiency of at least 99.9995% at 0.12 μm, with a downflow velocity of 0.25 to 0.40 m/s and an inflow velocity of at least 0.5 m/s. The exhaust air is filtered before discharge to protect the environment. The work zone measures 1600 × 600 × 660 mm with a maximum opening of 470 mm.
The outer body is electrostatically sprayed cold-rolled steel, the work area is stainless steel on three sides with 10 mm rounded inner corners for cleaning, and the front is inclined at 10° for comfort. A 7-inch color touch screen shows all operating parameters, and alarms cover filter blockage, blower overload and window opening limits.
Specifications
Technical specifications
28 parameters
Specifications
- Model
- BSC-IIB2-5J
- Classification
- Class II Type B2
- Cleanliness level
- ISO level 4
- External Dimensions(W*D*H)(mm)
- 1800*760*2200
- Working Zone Dimensions(W*D*H)(mm)
- 1600*600*660
- Maximum Opening(mm)
- 470
- Work Surface Height(mm)
- About 770
- Base Height(mm)
- About 660
- Filtration efficiency
- ≥99.9995%，@0.12μm
- Filters
- ULPA(U15)*2pcs
- Downflow air velocity（m/s）
- 0.25～0.40
- Inflow air velocity（m/s）
- ≥0.5
- Sound emission
- ≤67dBA
- Vibration peak
- ≤5μm
- Biological safety personnel protection
- a.The total number of colonies in the impact sampler：≤10CFU/time
- Product protection
- 1-8CFU/ml（repeat 3times，5min/time）total number of colonies：≤5CFU/time
- Cross contamination protection
- 1-8CFU/ml（repeat 3times，5min/time） total number of colonies：≤5CFU/time
- Illumination
- ≥1000Lux
- LED lamp
- 25W*2pcs
- UV lamp
- 40W*1pc
- Applicable number of people
- 1-3
- Wind direction
- Top in，top out
- Supply and exhaust pipe diameter（mm）
- Φ250
- Standard Accessories
- UV lamp*1pc
- Optional Accessories
- Water valve, Air valve, Armrest, RS232 interface, Waterproof socket
- Electricity
- AC220V, 50/60Hz; 1.5kW
- Shipping Weight(kg)
- 380，35
- Shipping Dimensions(W*D*H)(mm)
- 1.1940*900*1900
Features
Key features
- 01
ULPA filtration
Two ULPA (U15) filters with at least 99.9995% efficiency at 0.12 μm for ISO level 4 cleanliness.
- 02
Negative pressure airflow
Vertical laminar negative pressure model with 100% exhaust and no recirculation to keep the operator protected.
- 03
Easy-clean work zone
Stainless steel on three sides with 10 mm rounded corners on washable internal parts.
- 04
Ergonomic front
10° inclined design and an integrated sliding safety door with easy positioning.
- 05
Safety alarms
Alarms for filter blockage, blower overload and working window opening limit.
- 06
Touch screen control
7-inch color touch screen with real-time display of all operating parameters.
