Reference: ICB-CC420T / ICB-CC1000T
Climate Chamber ICB-CC420T, ICB-CC1000T
Artificial climate chamber in 420 and 1000 L sizes with programmable temperature, humidity, three-sided lighting up to 22,000 Lux and fan speed.
Key specifications
- Capacity
- ICB-CC420T: 420L; ICB-CC1000T: 1000L
- Illumination Method
- Three-sided illumination
- Illumination Range
- 0~22,000 Lux (higher illumination can be customized)
- Illumination Levels
- 0 ~ 100%
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Climate Chamber ICB-CC420T, ICB-CC1000T
Request a quoteOverview
Product overview

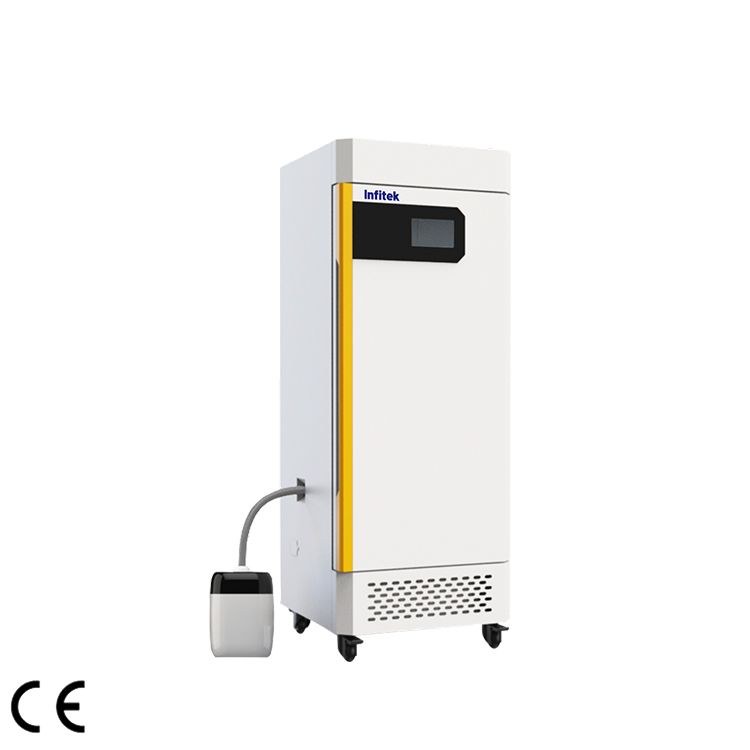

The ICB-CC420T and ICB-CC1000T are intelligent artificial climate chambers that control temperature, humidity, illuminance and wind speed to simulate conditions such as day and night cycles for plant growth and related experiments. Capacities are 420 L and 1000 L.
Temperature is controlled from 0 to 65 °C with lights off and 10 to 50 °C with lights on, using high-precision sensors and a PID algorithm. Humidity reaches 50 to 95% RH between 10 and 50 °C through integrated ultrasonic humidification. Three-sided lighting is adjustable from 0 to 100% across 0 to 22,000 Lux, and internal fan speed is set between 30 and 100%.
The controller stores 30 programs with up to 99 segments each for gradient control of all parameters. UV sterilization, automatic timed defrost, power-off memory, door, temperature and sensor alarms, and multiple electrical protections are included.
Specifications
Technical specifications
15 parameters
Specifications
- Capacity
- ICB-CC420T: 420L; ICB-CC1000T: 1000L
- Illumination Method
- Three-sided illumination
- Illumination Range
- 0~22,000 Lux (higher illumination can be customized)
- Illumination Levels
- 0 ~ 100%
- Temperature Control Range
- 0 ~ 65°C (Lights OFF) 10~50°C (Lights ON)
- Humidity Control Range
- ICB-CC420T: 50～95% RH (Chamber temp.: 10-50℃) 50～80% RH (Chamber temp.: 50-55℃) 50～60% RH (Chamber temp.: 55-60℃) <50% RH (Chamber temp.: 60-65℃); ICB-CC1000T: 50～95% RH (Chamber temp.: 10-50℃) 50～70% RH (Chamber temp.: 50-55℃) <50% RH (Chamber temp.: 55-60℃) <40% RH (Chamber temp.: 60-65℃)
- Temperature Fluctuation
- ICB-CC420T: ±0.1℃ (Tested at chamber temperature 25.0℃, humidity 50%RH); ICB-CC1000T: ±0.3℃ (Tested at chamber temperature 25.0℃, humidity 50%RH)
- Temperature Uniformity
- ICB-CC420T: ≤±0.5℃ (Tested at chamber temperature 25.0℃, humidity 50%RH); ICB-CC1000T: ≤±1℃ (Tested at chamber temperature 25.0℃, humidity 50%RH)
- Humidity Fluctuation
- ICB-CC420T: ±2%RH (Tested at chamber temperature 25.0℃, humidity 50%RH); ICB-CC1000T: ±3%RH (Tested at chamber temperature 25.0℃, humidity 50%RH)
- Programming Segments
- 30 experimental programs can be stored, each with 1~99 programmable segments
- Internal Dimensions
- ICB-CC420T: 635*560*1165mm; ICB-CC1000T: 1415*560*1165mm
- External Dimensions
- ICB-CC420T: 762*765*1900mm; ICB-CC1000T: 1552*765*1940mm
- Electricity
- ICB-CC420T: AC 220V/50Hz, 10A; ICB-CC1000T: AC 220V/50Hz, 16A
- Max. Power Consumption
- ICB-CC420T: 1200W; ICB-CC1000T: 2500W
- Communication Interface
- Standard RJ45 Ethernet port, Wi-Fi, USB data port, and IoT functionality
Features
Key features
- 01
Full climate control
Temperature, humidity, light intensity and wind speed are all controlled and programmable.
- 02
Three-sided lighting
Illumination adjustable from 0 to 100% up to 22,000 Lux, with higher levels available on request.
- 03
Ultrasonic humidification
Integrated humidifier with internal circulation reaches 50 to 95% RH at 10 to 50 °C.
- 04
Deep programming
30 stored programs, each with 1 to 99 segments, simulate day and night cycles.
- 05
UV sterilization
UV lamp sterilizes the chamber and switches off automatically after the set time.
- 06
Alarms and protection
Door-open, over-limit and sensor alarms plus leakage, overload and compressor protection.
