Reference: CLRT-1

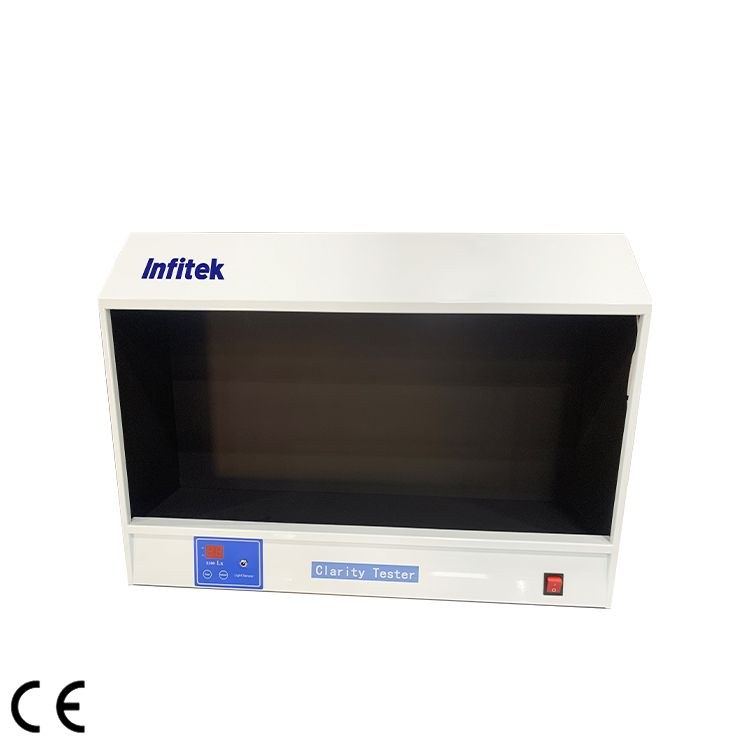

CLRT-1 Clarity Tester

Clarity tester for injections and bottled liquid medicines, with flicker-free tri-color fluorescent lighting adjustable from 1000 to 6000 lux.

Pharmaceutical / Laboratory

Key specifications

Lamp three-primary-color: fluorescent lamp
Illumination range: (1000～6000)LUX
Time range: (1～99)s
Power: 220V/ 50Hz/ 30W

Configured to your application by our specialists
Installed and commissioned on site
Training and after-sales support across Jordan, the GCC and MENA

CLRT-1 Clarity Tester

Overview

Product overview

The CLRT-1 tests the clarity of injections and bottled liquid medicines by visual inspection under controlled lighting.

It uses a three-primary-color fluorescent lamp controlled by a light sensor and electronic ballast, with shading to give flicker-free illumination. Illumination is adjustable from 1000 to 6000 lux, and an automatic timer from 1 to 99 seconds with alarm supports continuous testing.

The instrument is designed to be operated by one person. It runs on 220 V, 50 Hz at 30 W and measures 703 × 175 × 513 mm.

Specifications

Technical specifications

5 parameters

Used by one person.

Lamp three-primary-color: fluorescent lamp
Illumination range: (1000～6000)LUX
Time range: (1～99)s
Power: 220V/ 50Hz/ 30W
Dimension: (703*175*513)mm

Features

Key features

01
Flicker-free lighting
Electronic ballast and shading eliminate flicker during inspection.
02
Adjustable illumination
Light level adjustable from 1000 to 6000 lux.
03
Automatic timing
Timer from 1 to 99 seconds with alarm for continuous testing.
04
Single operator
Designed to be used by one person.
