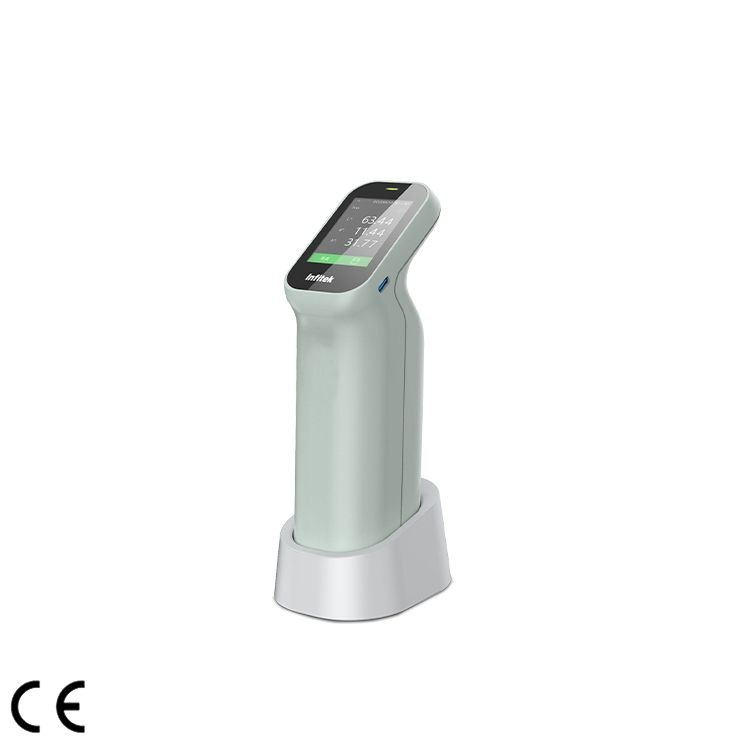

SP-CLR410C, SP-CLR411C and SP-CLR412C Economical Colorimeters
Economical D/8 colorimeters with SCI and SCE, auto calibration, 30 test parameters and 26 illuminants, available with big, small or switchable dual apertures.
Key specifications
- Type
- SP-CLR410C: Economical(Big Aperture); SP-CLR411C: Economical(Small Aperture); SP-CLR412C: Economical(Two Apertures)
- Color
- Green
- Geometry
- D/8 (Diffused illumination, 8°viewing) SCI (specular component included),SCE (specular component excluded)
- Repeatability
- Chromaticity Value: Standard deviation ΔE*ab≤ 0.04 Average: dE*ab≤ 0.05 Max.: dE*ab≤ 0.08(When a white tile is measured 30 times at 5 seconds interval)
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SP-CLR410C, SP-CLR411C and SP-CLR412C Economical Colorimeters
Request a quoteOverview
Product overview
The SP-CLR410C, SP-CLR411C and SP-CLR412C are economical colorimeters with D/8 geometry and both SCI and SCE measurement, which gives results more consistent with visual assessment. The 410C has a big Φ8 mm aperture, the 411C a small Φ4 mm aperture, and the 412C switchable dual apertures for samples of different sizes.
A 40 mm integrating sphere, LED light source and CMOS sensor cover 400 to 700 nm at 10 nm intervals, with display accuracy of 0.01, repeatability of ΔE*ab ≤0.04 and inter-instrument agreement of ΔE*ab ≤0.4. Each measurement takes about 1 second. The instruments provide 30 test parameters, including opacity, whiteness index and yellowness index, together with color spaces such as CIE Lab, LCh and Hunter Lab, and 26 illuminants.
Auto calibration keeps operation simple, and Windows software is available for data management. These colorimeters suit routine color difference checks in plastics, paint, textiles and printing.
Specifications
Technical specifications
32 parameters
Good repeatability for stable measurement (Delta E*ab 0.08)
- Type
- SP-CLR410C: Economical(Big Aperture); SP-CLR411C: Economical(Small Aperture); SP-CLR412C: Economical(Two Apertures)
- Color
- Green
- Geometry
- D/8 (Diffused illumination, 8°viewing) SCI (specular component included),SCE (specular component excluded)
- Repeatability
- Chromaticity Value: Standard deviation ΔE*ab≤ 0.04 Average: dE*ab≤ 0.05 Max.: dE*ab≤ 0.08(When a white tile is measured 30 times at 5 seconds interval)
- Inter-instrument Agreement
- ΔE*ab≤0.4
- Display Accuracy
- 0.01
- Test Aperture/ Illuminated Area
- SP-CLR410C: Φ8mm/Φ11mm; SP-CLR411C: Φ4mm/Φ6mm; SP-CLR412C: Φ8mm/Φ11mm，Φ4mm/Φ6mm
- Color Space and Indices
- Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB, Color Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), Whiteness Index (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), Yellowness Index(ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness Index(My,dM), Staining Fastness, Color Fastness, Tint(ASTM E313-00), Color Density CMYK(A,T,E,M), Metamerism Index Milm, M
- Illuminants
- A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
- Support Color Matching Software
- No
- Light Source
- LED
- Camera
- No
- Calibration
- Auto
- Software
- Windows
- Accuracy Guarantee
- Pass National Metrology Level I
- Observer
- 2°，10°
- Sphere Size
- 40mm
- Spectroscopic Method
- Integrated optics
- Sensor
- CMOS Sensor
- Wavelength interval
- 10nm
- Wavelength Range
- 400-700nm
- Reflectance Range
- 0-200%
- Reflectance Resolution
- 0.01%
- Reflectance Resolution
- 0.01%
- Measurement Time
- About 1 second
- Display
- IPS full color screen ,2.4 inches
- Battery
- Rechargeable, 8,000 times continuous tests, 3.7V/3000mAh
- Light Source Lifetime
- 10 years, 1 million tests
- Language
- English
- Storage
- 100 pieces of data
- Dimensions (L*W*H)
- 180*60*51mm
- Weight
- 280g
Features
Key features
- 01
Three aperture choices
Big Φ8 mm, small Φ4 mm or switchable dual apertures.
- 02
SCI and SCE
D/8 geometry with both modes for results closer to visual judgment.
- 03
30 test parameters
Including opacity, whiteness index and yellowness index.
- 04
26 illuminants
Wide choice of standard light sources with 2° and 10° observers.
- 05
Auto calibration
Simple operation and stable repeatability of ΔE*ab ≤0.04.
