Reference: HPS-280-S6 / HPS-280-S6 package

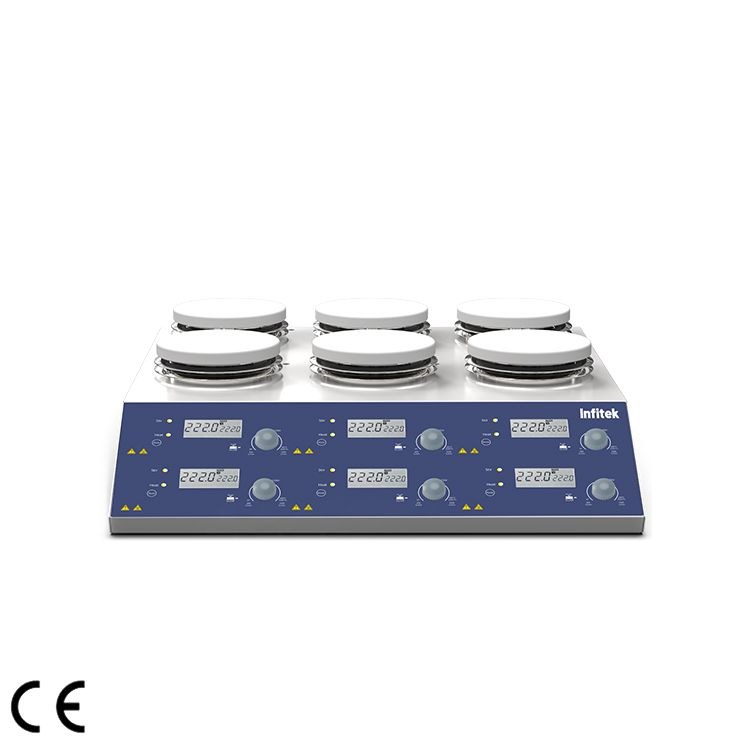

HPS-280-S6 6-Channel Combination Stirring Hotplate
Six independently controlled ceramic-coated stirring hotplates in one unit, heating to 280°C and stirring 3 L per channel at 200-1500 rpm.
Key specifications
- Configuration
- HPS-280-S6: LCD Digital Hotplate Magnetic Stirrer with ceramic coated plate，heating temperature up to 280°C; HPS-280-S6 package: HPS-280-S6 + PT1000A*6 + support clamp*6
- Work Plate Dimension
- Φ134 mm
- Work Plate Material
- Aluminum with ceramic coating
- Motor Type
- Brushless DC motor
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
HPS-280-S6 6-Channel Combination Stirring Hotplate
Request a quoteOverview
Product overview
The HPS-280-S6 integrates six stirring hotplates into one space-saving instrument for parallel experiments and multi-parameter optimization. It suits Kjeldahl nitrogen determination, Soxhlet extraction and parallel synthesis in food, feed, textile, soil, wastewater, pharmaceutical, petrochemical and plastics laboratories.
Each channel has independent start/stop, temperature, speed and LCD display. The Φ134 mm aluminum work plates are ceramic coated for fast heat transfer and corrosion resistance, heating from 25°C to 280°C with PID control, ±1°C accuracy below 100°C and 600 W per channel. Brushless DC motors stir up to 3 L per position at 200 to 1500 rpm with stir bars up to 40 mm.
A HOT warning flashes when a plate is above 50°C after switch-off, and two independent safety circuits stop heating on overheating or sensor fault and cut power on short circuit. The HPS-280-S6 package adds six PT1000A temperature probes and six support clamps.
Specifications
Technical specifications
24 parameters
Specifications
- Configuration
- HPS-280-S6: LCD Digital Hotplate Magnetic Stirrer with ceramic coated plate，heating temperature up to 280°C; HPS-280-S6 package: HPS-280-S6 + PT1000A*6 + support clamp*6
- Work Plate Dimension
- Φ134 mm
- Work Plate Material
- Aluminum with ceramic coating
- Motor Type
- Brushless DC motor
- Motor Rating Output
- 5 W × 6
- Heating Power
- 600 W × 6
- Total Power
- 605 W × 6
- Electricity
- 100-120V, 50/60Hz; 200-240V, 50/60Hz
- Stirring Positions
- 6
- Max. Stirring Quantity (H 2 O)
- 3L× 6
- Max. Stirring Quantity (H 2 O) per Channel
- 3L
- Max. Magnetic Bar Length
- 40 mm
- Speed Range
- 200-1500 rpm
- Speed Control Accuracy
- ±20 rpm
- Speed Display
- LCD
- Temperature Display
- LCD
- Heating Temperature Range
- 25-280°C
- Overheating Protection
- 420°C
- Temperature Display Resolution
- 0.1℃
- Temperature Control Accuracy
- ± 1°C (<100°C), ± 1% (>100°C)
- IP Protection Class
- IP21
- Permissible Ambient Temperature and Humidity
- 5-40°C, 80%RH
- External Dimensions (W*D*H)
- 564*523*127 mm
- Weight
- 12.7 kg
Features
Key features
- 01
Six independent channels
Each position has its own start/stop, temperature, speed and display controls.
- 02
Ceramic-coated plates
Aluminum plates with ceramic coating transfer heat quickly and resist corrosion.
- 03
Accurate PID heating
Heats to 280°C with ±1°C accuracy below 100°C and ±1% above.
- 04
Brushless motors
Spark-free, maintenance-free DC motors stir 3 L per channel at 200 to 1500 rpm.
- 05
Residual heat warning
HOT flashes on the display while the plate is above 50°C after switch-off.
- 06
Probe package option
The package version includes six PT1000A probes and six support clamps.
