Constant Temperature and Humidity Chamber ICB-H-YH Series
Frost-free stability chamber from 103 to 1022 L controlling -5 to 70 °C and 15 to 95% RH for pharmaceutical storage and environmental testing.
Key specifications
- Capacity (L)
- ICB-H103YH: 103; ICB-H152YH: 152; ICB-H253YH: 253; ICB-H412YH: 412; ICB-H722YH: 722; ICB-H1022YH: 1022
- Circulation Mode
- Forced Convection (Balanced Type)
- Dimension (W*D*H), Internal (mm)
- ICB-H103YH: 480*390*550; ICB-H152YH: 500*460*660; ICB-H253YH: 640*460*860; ICB-H412YH: 560*530*1390; ICB-H722YH: 980*530*1390; ICB-H1022YH: 980*750*1390
- Dimension (W*D*H), External (mm)
- ICB-H103YH: 645*700*1255; ICB-H152YH: 665*780*1360; ICB-H253YH: 800*780*1570; ICB-H412YH: 1025*810*1735; ICB-H722YH: 1445*810*1735; ICB-H1022YH: 1445*1030*1735
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA

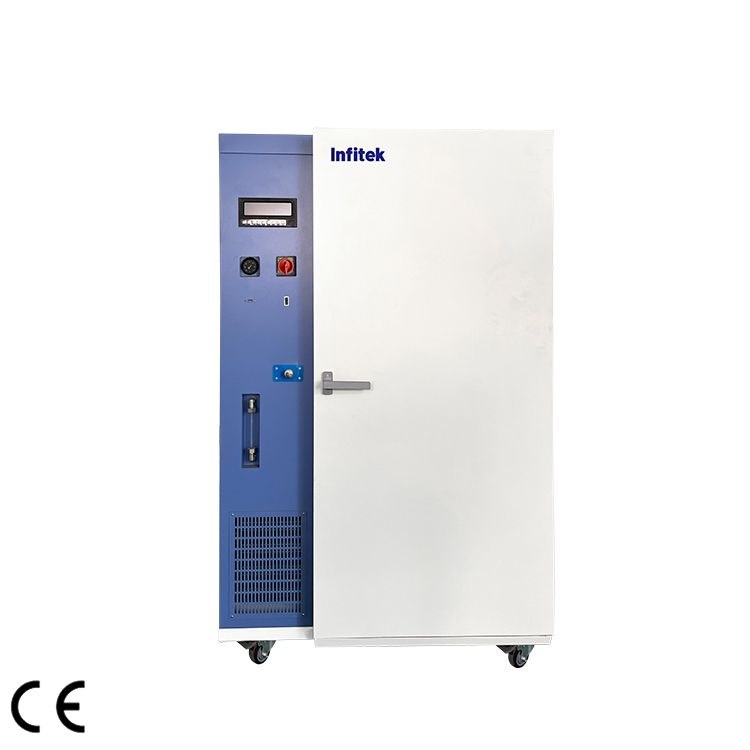

Constant Temperature and Humidity Chamber ICB-H-YH Series
Request a quoteOverview
Product overview
The ICB-H-YH Series is a constant temperature and humidity chamber for long-term stability testing of pharmaceuticals and quality assessment in the food, tobacco and cosmetics industries. It is also used for aging and water absorption studies of paints and resins and environmental reliability testing of electronics, automotive parts and metals.
Six models cover 103 to 1022 L, with a temperature range of -5 to 70 °C and humidity from 15 to 95% RH. A frost-free design prevents drift during defrost cycles, and a diffusion-type air duct with a three-speed fan improves uniformity. Programmable fuzzy PID control with 30 segments and 99 cycles sets temperature, humidity, fan speed and ramp rates.
Automatic water replenishment and recycling reduces water use. A wide display with temperature, humidity and water level alarms, over-temperature cut-off, USB data recording and hot gas bypass refrigeration are standard.
Specifications
Technical specifications
17 parameters
Specification
- Capacity (L)
- ICB-H103YH: 103; ICB-H152YH: 152; ICB-H253YH: 253; ICB-H412YH: 412; ICB-H722YH: 722; ICB-H1022YH: 1022
- Circulation Mode
- Forced Convection (Balanced Type)
- Dimension (W*D*H), Internal (mm)
- ICB-H103YH: 480*390*550; ICB-H152YH: 500*460*660; ICB-H253YH: 640*460*860; ICB-H412YH: 560*530*1390; ICB-H722YH: 980*530*1390; ICB-H1022YH: 980*750*1390
- Dimension (W*D*H), External (mm)
- ICB-H103YH: 645*700*1255; ICB-H152YH: 665*780*1360; ICB-H253YH: 800*780*1570; ICB-H412YH: 1025*810*1735; ICB-H722YH: 1445*810*1735; ICB-H1022YH: 1445*1030*1735
- Temperature, Range (℃)
- -5~70
- Resolution (℃)
- 0.1
- Fluctuation (℃)
- ±0.2 / ±0.5
- Uniformity (℃)
- ±0.5 / ±1
- Humidity
- Range / 15%~95%RH
- Fluctuation
- ±1%RH / ±1.5%RH
- Operating Ambient Temperature (℃)
- 5-30
- Shelves (Standard)
- ICB-H103YH: 2; ICB-H152YH: 3; ICB-H253YH: 3; ICB-H412YH: 4; ICB-H722YH: 4; ICB-H1022YH: 4
- Test Hole (mm)
- φ40
- Electricity, Voltage/Frequency
- AC 220V, 50Hz
- Consumption (W)
- ICB-H103YH: 1300; ICB-H152YH: 1400; ICB-H253YH: 2000; ICB-H412YH: 2500; ICB-H722YH: 3500; ICB-H1022YH: 3800
- Safety Protection
- Refrigeration System / Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection.
- Others
- Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection; Water shortage protection.
Features
Key features
- 01
Wide test envelope
Controls -5 to 70 °C and 15 to 95% RH across six chamber sizes from 103 to 1022 L.
- 02
Frost-free stability
Avoids temperature and humidity drift caused by conventional defrost cycles.
- 03
Water-saving humidification
Automatic replenishment and recycling of water reduces consumption and refilling.
- 04
30-segment programs
Fuzzy PID programs with 30 segments and 99 cycles control ramps, humidity and fan speed.
- 05
Alarms on every parameter
Temperature, humidity and water level alarms with visual and audible prompts.
- 06
USB recording
Connect a printer or USB drive to record data in real time during the test.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
