Cooling Biochemical Incubator ICB-B-YB/YL Series
Frost-free refrigerated incubator from 103 to 1022 L, covering 0 to 65 °C (YB) or -10 to 65 °C (YL) for microbial culture, plant work and BOD testing.
Key specifications
- ICB-B103YL
- ICB-B152YL / ICB-B253YL / ICB-B412YL / ICB-B722YL / ICB-B1022YL
- Capacity (L)
- ICB-B103YB: 103; ICB-B152YB: 152; ICB-B253YB: 253; ICB-B412YB: 412; ICB-B722YB: 722; ICB-B1022YB: 1022
- Circulation Mode
- Forced Convection (Balanced Type)
- Dimension (W*D*H), Internal (mm)
- ICB-B103YB: 480*390*550; ICB-B152YB: 500*460*660; ICB-B253YB: 640*460*860; ICB-B412YB: 560*530*1390; ICB-B722YB: 980*530*1390; ICB-B1022YB: 980*750*1390
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Cooling Biochemical Incubator ICB-B-YB/YL Series
Request a quoteOverview
Product overview

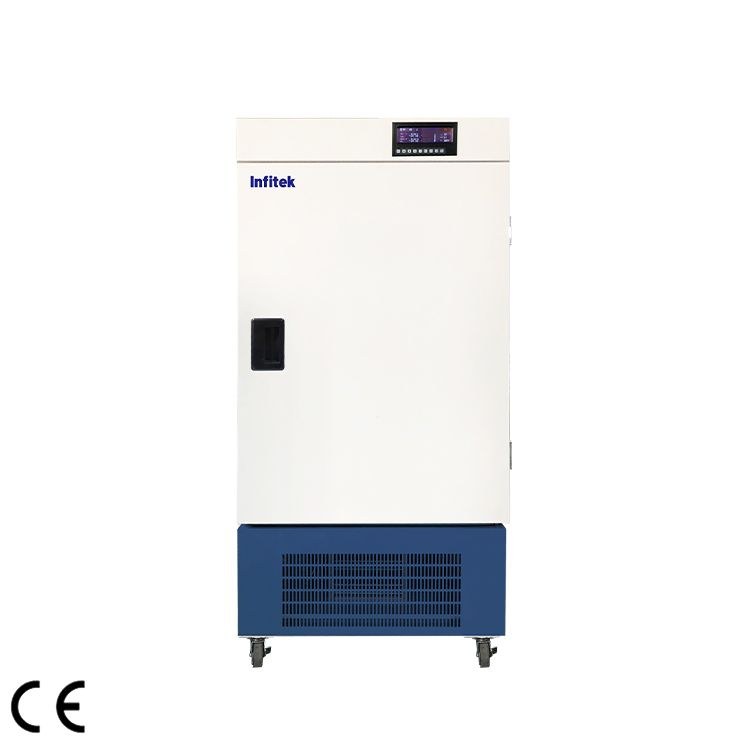

The ICB-B-YB/YL Series is a cooling biochemical incubator for the culture and preservation of bacteria and other microorganisms, plant breeding and seedling experiments, and water quality analysis including BOD determination. Six capacities are available, from 103 to 1022 L, in two temperature versions: YB from 0 to 65 °C and YL from -10 to 65 °C.
A frost-free design avoids the temperature swings of conventional defrost cycles during long experiments. The diffusion-type air duct and a three-speed circulating fan improve uniformity while limiting sample evaporation. Programmable fuzzy PID control with 30 segments and 99 cycles allows gradient and ramp control of temperature, fan speed and run time.
The refrigeration system uses hot gas bypass regulation for safe compressor operation. A wide display, over-temperature protection with audible and visual alarms, USB data recording, chamber lighting and a 40 mm test hole are included.
Specifications
Technical specifications
16 parameters
Specification
- ICB-B103YL
- ICB-B152YL / ICB-B253YL / ICB-B412YL / ICB-B722YL / ICB-B1022YL
- Capacity (L)
- ICB-B103YB: 103; ICB-B152YB: 152; ICB-B253YB: 253; ICB-B412YB: 412; ICB-B722YB: 722; ICB-B1022YB: 1022
- Circulation Mode
- Forced Convection (Balanced Type)
- Dimension (W*D*H), Internal (mm)
- ICB-B103YB: 480*390*550; ICB-B152YB: 500*460*660; ICB-B253YB: 640*460*860; ICB-B412YB: 560*530*1390; ICB-B722YB: 980*530*1390; ICB-B1022YB: 980*750*1390
- Dimension (W*D*H), External (mm)
- ICB-B103YB: 645*700*1255; ICB-B152YB: 665*780*1360; ICB-B253YB: 800*780*1570; ICB-B412YB: 1025*810*1735; ICB-B722YB: 1445*810*1735; ICB-B1022YB: 1445*1030*1735
- Temperature, Range (℃)
- YB Series: 0~65; YL Series: -10~65;
- Resolution (℃)
- 0.1
- Fluctuation (℃)
- High temperature ±0.3℃, Low temperature ±0.5℃ / High temperature ±0.5℃, Low temperature ±1℃
- Uniformity (℃)
- ±0.5 / ±1
- Operating Ambient Temperature (℃)
- 5-30
- Shelves (Standard)
- ICB-B103YB: 2; ICB-B152YB: 3; ICB-B253YB: 3; ICB-B412YB: 4; ICB-B722YB: 4; ICB-B1022YB: 4
- Test Hole (mm)
- φ40
- Electricity, Voltage/Frequency
- AC 220V, 50Hz
- Consumption (W)
- ICB-B103YB: 780; ICB-B152YB: 840; ICB-B253YB: 1200; ICB-B412YB: 1500; ICB-B722YB: 2100; ICB-B1022YB: 2550
- Safety Protection
- Refrigeration System / Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection.
- Others
- Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection.
Features
Key features
- 01
Six capacities, two ranges
Models from 103 to 1022 L in the YB (0 to 65 °C) and YL (-10 to 65 °C) versions.
- 02
Frost-free operation
Avoids temperature drift and defrost fluctuations so long-term experiments stay stable.
- 03
Three-speed fan
High, medium and low fan speeds balance uniformity against sample evaporation.
- 04
30-segment programming
Fuzzy PID programs with 30 segments and 99 cycles control temperature ramps, fan speed and time.
- 05
USB data recording
Connect a printer or USB flash drive to log temperature data in real time.
- 06
Layered protection
Over-temperature cut-off with alarms, plus compressor, phase, leakage and overload protection.
