Reference: ELD-300

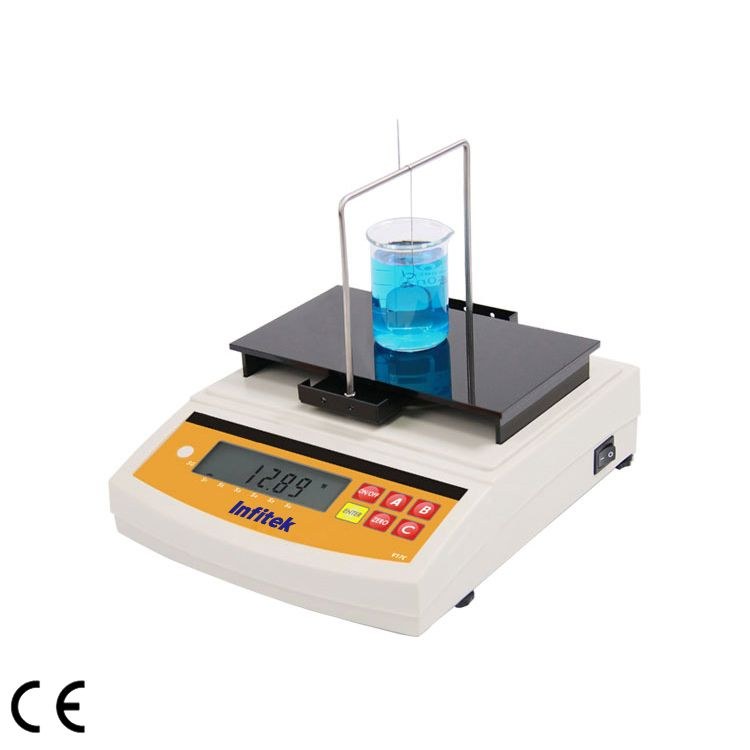

ELD-300 Liquid Density Balance
A digital density balance based on the Archimedes principle, reading liquid density directly with 0.001 g/cm³ resolution in about 5 seconds.
Key specifications
- Name/model
- ELD-300 Density Balance
- Density resolution
- 0.001g/cm 3
- Density range
- 0.001—99.999g/cm 3
- Measuring type
- a: mobility liquid,viscous liquid,volatile liquid,corrosivity liquid,high temperature liquid,suspension liquid,emulsion and so on b: alcohol,scaling powder,essence,blood,sodium chloride,glycerol, electrolyte,diesel,refrigerating,hydrofluoric acid,dichloromethane,vitriol
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
ELD-300 Liquid Density Balance
Request a quoteOverview
Product overview
The ELD-300 measures the density of liquids by the Archimedes displacement method combined with electronic weighing, displaying the density value directly. It follows GB/T 611, GB/T 11540, GB/T 12206 and GB/T 5518 and avoids the setup and handling of the traditional Westphal balance and pycnometer methods.
Density resolution is 0.001 g/cm³ over a range of 0.001 to 99.999 g/cm³, and each measurement takes about 5 seconds, so repeated readings can be taken quickly. A sample of about 50 cc is enough, the measuring cup is easy to clean, and samples from room temperature up to 100°C can be measured; with a thermostatic bath, density can be measured at a required temperature.
It handles flowing, viscous, volatile, corrosive, high-temperature and suspension liquids and emulsions, such as solvents, adhesives, paints, resins, oils, food additives, drinks and dairy products. One-button calibration, a dust and draft cover, and an RS-232 output for printing or PC connection are included.
Specifications
Technical specifications
18 parameters
Specifications
- Name/model
- ELD-300 Density Balance
- Density resolution
- 0.001g/cm 3
- Density range
- 0.001—99.999g/cm 3
- Measuring type
- a: mobility liquid,viscous liquid,volatile liquid,corrosivity liquid,high temperature liquid,suspension liquid,emulsion and so on b: alcohol,scaling powder,essence,blood,sodium chloride,glycerol, electrolyte,diesel,refrigerating,hydrofluoric acid,dichloromethane,vitriol
- Measuring Principle
- Archimedes principle displacement method
- Measuring mode
- 1 group
- Measuring time
- About 5 seconds
- Memory mode
- memory in a shorter time by one procedure
- Result Display
- Density value
- Specific Gravity Measuring frame
- stainless steel specific gravity measuring frame
- Function of setting
- Temperature setting, solution density setting, measuring weights setting of weight in the normal liquid and water
- Calibration mode
- auto-correction with one button,auto-detection.
- Measuring testing
- distilled testing
- Output mode
- standard interface of RS-232, output and print testing data conveniently
- Standard accessories
- Host, measuring frame, AR-20A standard liquid measuring assembly, tweezer, thermometer,100G weight, measuring support, power transformer AR-20A standard liquid measuring assembly: Two stainless steel pothooks, one glass weight, one glass beaker.
- Optional accessories
- AR-40 printer, AR-20B anti-corrosive liquid measuring assembly
- power
- AC~220V / 50HZ
- Main feature
- data display, accuracy, rapid, convenience durable, economy
Features
Key features
- 01
Direct density readout
Displays density directly with 0.001 g/cm³ resolution.
- 02
About 5 s per measurement
Rapid, repeatable continuous measurements.
- 03
Wide sample range
Measures viscous, volatile, corrosive and high-temperature liquids, suspensions and emulsions.
- 04
Small sample volume
About 50 cc of sample is sufficient, and the cup is easy to clean.
- 05
Standards-based method
Archimedes principle in line with GB/T 611, GB/T 11540, GB/T 12206 and GB/T 5518.
- 06
RS-232 output
Connects to a printer or PC for data output.
