Reference: VSC-H / VSC-HA / VSC-H1 / VSC-H2
VSC-H Series High Temperature Digital Viscometer
Rotational viscometers with an integrated furnace from 10°C above ambient to 300°C, for materials such as asphalt, hot melt adhesives and polyethylene wax.
Key specifications
- VSC-H1-1
- VSC-H1-2 / VSC-H1-3 / VSC-H2-1 / VSC-H2-2 / VSC-H2-3
- Measuring Range（mPa·s）
- 50～200,000 / 50～10,000,000 / 10～1,000,000 / 100～1,0000,000 / 800～80,000,000 / 5～1,000,000 / 50～10,000,000 / 400～80,000,000
- Rotating Speed (RPM)
- VSC-H: 5, 10, 20, 50, 100; VSC-HA: 0.1～200 (Stepless Gear); VSC-H1: 0.1～99.9（Stepless Gear）; VSC-H2: 0.1～200 (Stepless Gear)
- Measuring method
- Manual measurement / Manual and automatic measurement / Manual measurement
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
VSC-H Series High Temperature Digital Viscometer
Request a quoteOverview
Product overview

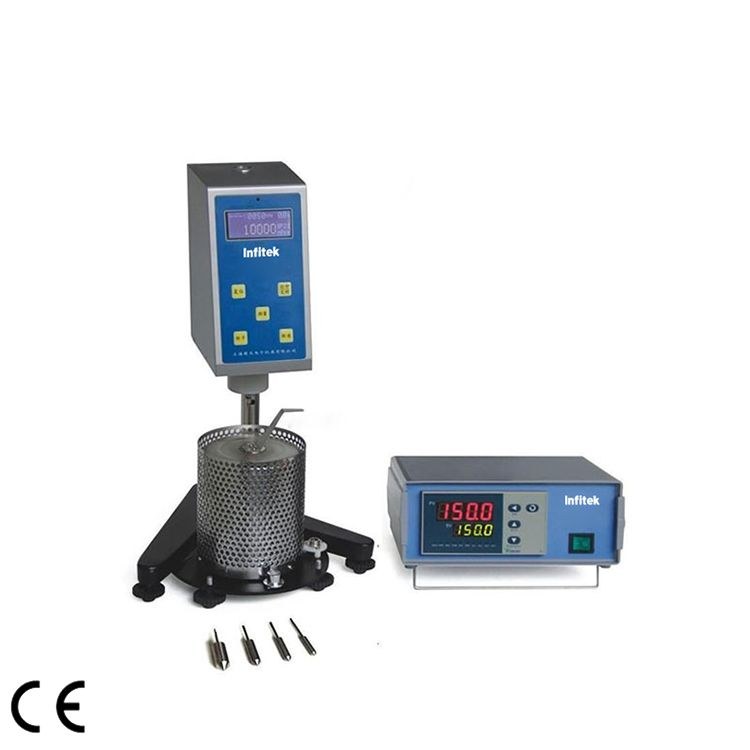

The VSC-H Series measures the viscosity of materials that are solid at room temperature and become liquid when heated, such as asphalt, hot melt adhesives and polyethylene wax. An embedded integral heating furnace gives uniform heating with low thermal inertia across a range from 10°C above ambient to 300°C, using a sample of 10 to 20 mL.
Across the VSC-H1 and VSC-H2 models, measuring ranges extend from 5 to 80,000,000 mPa·s, with stepless speeds from 0.1 rpm and spindles 21, 27, 28 and 29 supplied. A high subdivision stepper motor keeps the speed accurate and stable, and accuracy is ±1% of full scale with ±0.5% repeatability.
The blue backlit LCD shows viscosity, speed, percentage torque, spindle number, temperature and the maximum measurable viscosity for the current spindle and speed, with no further calculation needed. An alarm sounds when the reading exceeds the range, and optional data acquisition can build viscosity-temperature curves.
Specifications
Technical specifications
13 parameters
Table 2
- VSC-H1-1
- VSC-H1-2 / VSC-H1-3 / VSC-H2-1 / VSC-H2-2 / VSC-H2-3
- Measuring Range（mPa·s）
- 50～200,000 / 50～10,000,000 / 10～1,000,000 / 100～1,0000,000 / 800～80,000,000 / 5～1,000,000 / 50～10,000,000 / 400～80,000,000
- Rotating Speed (RPM)
- VSC-H: 5, 10, 20, 50, 100; VSC-HA: 0.1～200 (Stepless Gear); VSC-H1: 0.1～99.9（Stepless Gear）; VSC-H2: 0.1～200 (Stepless Gear)
- Measuring method
- Manual measurement / Manual and automatic measurement / Manual measurement
- Number of Spindles
- Spindles (Code21, 27, 28, 29) are equipped with the product
- Accuracy
- ±1% full scale range in use
- Repeatability
- ±0.5% full scale range in use
- Sample capacity(m L)
- 10～20
- Temperature control range(℃)
- 10℃ above ambient～300℃
- Power
- Power adapter (input: 220V 50Hz)
- LCD screen display
- Viscometer: The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value.The temperature controller: Display setting temperature and actual measuring temperature。
- Pakage Size(mm)
- 2 boxes size:400*350*360, 400*350*550
- Total Weight(kg)
- 15kg
Features
Key features
- 01
Heating up to 300°C
Integral furnace from 10°C above ambient to 300°C with uniform heating.
- 02
Very wide viscosity range
Models cover from 5 up to 80,000,000 mPa·s.
- 03
Stable stepper drive
A high subdivision stepper motor gives accurate, steady rotation speeds.
- 04
Direct LCD readout
Viscosity, speed, torque, spindle and temperature are displayed together.
- 05
Over-range alarm
An audible prompt warns when the reading exceeds the measuring range.
- 06
Viscosity-temperature curves
Optional data acquisition records and analyzes results against temperature.
