Reference: POL-DISC4II

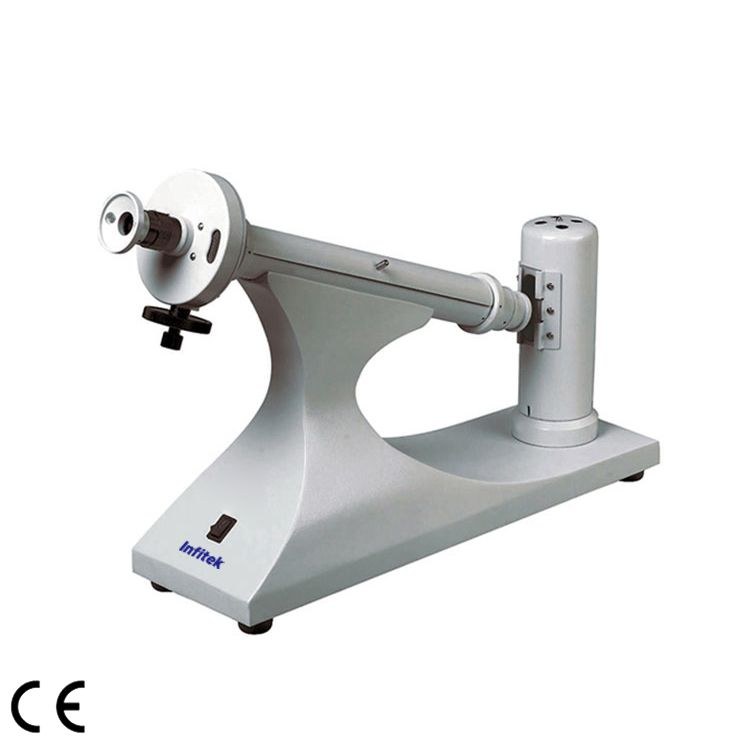

POL-DISC4II Manual Disc Polarimeter
A manual visual polarimeter with a ±180° range, 0.05° vernier reading and sodium lamp source for measuring optical rotation in teaching and routine labs.
Key specifications
- Model
- POL-DISC4II
- Measuring scale
- Optical Rotation
- Measuring range
- ±180°
- Main scale graduation
- 1°
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
POL-DISC4II Manual Disc Polarimeter
Request a quoteOverview
Product overview
The POL-DISC4II is a classic visual polarimeter for measuring the optical activity of substances such as sugars, pharmaceuticals and organic compounds. The user aligns the optical field by hand to determine the angle of rotation produced by the sample, reading the result on a disc with a 1° main scale and a vernier giving 0.05° resolution across a ±180° range.
A sodium lamp provides light at 589 nm, and a 4× magnifier makes the scale easy to read. Standard 100 mm and 200 mm sample tubes are supplied for different sample concentrations.
Without automated functions, the instrument is simple to operate and maintain, and its hands-on principle makes it well suited to education, training and fundamental research. It weighs 5 kg, measures 435 × 135 × 320 mm and runs on 220 V, 50 Hz.
Specifications
Technical specifications
14 parameters
Specification
- Model
- POL-DISC4II
- Measuring scale
- Optical Rotation
- Measuring range
- ±180°
- Main scale graduation
- 1°
- Vernier scale reading
- 0.05°
- Available wavelenght
- 589nm
- Light source
- Sodium lamp
- Sample cell length
- Standard: 100mm (regular) 200mm (regular)
- Magnifying glass magnification
- 4×
- Power supply
- 220V±22V, 50Hz±1Hz
- Product dimensions (L×W×H)
- 435mm×135mm×320mm
- Package dimensions (L×W×H)
- 580mm×230mm×420mm
- Net weight
- 5kg
- Gross weight
- 5.8kg
Features
Key features
- 01
Wide ±180° range
Covers the full optical rotation range with a 1° main scale.
- 02
0.05° vernier reading
The vernier scale provides high resolution manual readings.
- 03
Sodium lamp at 589 nm
Standard sodium D-line light source for optical rotation measurements.
- 04
Two sample tube lengths
Supplied with 100 mm and 200 mm tubes.
- 05
Light and easy to use
A 5 kg instrument with visual aiming and a 4× magnifier.
