Reference: BR4-660, BR4-1000

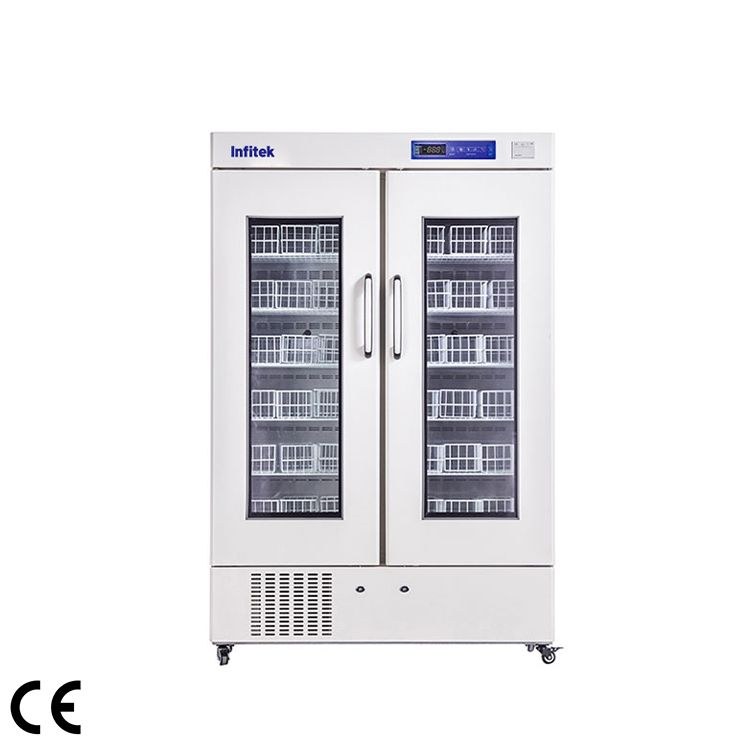

BR4-660 and BR4-1000 Double-Door Blood Bank Refrigerators
Double-door blood bank refrigerators of 658 L and 1008 L holding 4 ± 1°C for up to 576 blood bags, with a standard thermal printer and 72 hour alarm backup.
Key specifications
- Specifications
- Model: Shelf/drawer; BR4-660: Shelves/12; BR4-1000: Drawers/12
- Cooling
- Forced -air Cooling
- Defrost
- Auto
- Refrigerant
- R134a
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
BR4-660 and BR4-1000 Double-Door Blood Bank Refrigerators
Request a quoteOverview
Product overview
The BR4-660 and BR4-1000 store whole blood, blood components, medicines and bioproducts at a uniform 4 ± 1°C. They offer 658 L and 1008 L of capacity, holding 360 and 576 standard 450 mL blood bags, organized on 12 shelves in the BR4-660 and 12 drawers in the BR4-1000.
Microprocessor-controlled forced-air cooling with electrical heat compensation, SECOP compressors and R134a refrigerant keep the cabinet consistent, while auto-defrost removes moisture from the cooling surface. Separate digital readouts show the upper and lower sections with 0.1°C resolution. Heated, foam-insulated glass doors and acrylic inner doors limit cold loss when a door is opened.
A built-in battery runs the display and alarms for up to 72 hours without power, covering high and low temperature, power failure, abnormal voltage, door ajar and backup battery. A thermal printer is standard, and a safety lock, casters and interior light complete the design for blood banks, hospitals and CDCs.
Specifications
Technical specifications
39 parameters
Caster design and interior light.
- Specifications
- Model: Shelf/drawer; BR4-660: Shelves/12; BR4-1000: Drawers/12
- Cooling
- Forced -air Cooling
- Defrost
- Auto
- Refrigerant
- R134a
- Power consumption(kWh/24h)
- 6.31 / 8.53
- Noise ( db)
- 51.2 dB(A) / 53.6 dB(A)
- Ambient temperature ( ℃）
- 10~32℃
- Temperature range ( ℃）
- 4±1℃
- Cooling system
- Model: Compressor brand/QTY; BR4-660: SECOP/1; BR4-1000: SECOP/1
- Sensor
- NTC
- Temperature controller
- Microprocessor
- Display
- Digital display
- Power
- Model: Voltage/frequency ( V/Hz); BR4-660: 220/50Hz; BR4-1000: 220/50Hz
- Power ( W)
- 364W / 513W
- Current ( A)
- 2.42A / 2.37A
- Material
- Model: Inside material; BR4-660: 304 Stainless steel; BR4-1000: 304 Stainless steel
- Outside material
- Color sprayed steel
- Insulation
- PURF
- Size
- Model: Capacity ( L/cu.ft); BR4-660: 658/23.23; BR4-1000: 1008/35.59
- Bloodbags(450ml)
- 360 / 576
- N W ./G W . （ kg)
- 202/257 / 265/335
- Exterior size(W × D × H)(mm)
- 1220×640×1885 / 1240×860×1895
- Interior size(W × D × H)(mm)
- 1100×454×1325 / 1100×684×1325
- Package size(W × D × H)(mm)
- 1330×740×2120 / 1325×970×2130
- CBM
- 2.09 / 2.74
- 20GP/40GP/40HQ
- 12/27/27 / 8/18/18
- Alarm
- Model: High/low temperature; BR4-660: Y; BR4-1000: Y
- Power off
- Y
- Temperature controller malfunction
- Y
- Backup battery malfunction
- Y
- Ambient temperature
- 10~32℃
- Power failure backup system(alarm)
- 72h
- Accessories
- Model: Caster; BR4-660: Y; BR4-1000: Y
- Outer door/Type
- 2/Heating & Foam glass door
- Inner door
- 6
- Test hole
- 1/25MM
- Thermal p rinter
- Y
- Light
- LED
- Temperature recorder
- Optional chart recorder
Features
Key features
- 01
Uniform 4 ± 1°C storage
Forced-air cooling with electrical heat compensation maintains a consistent cabinet temperature.
- 02
Two capacities
658 L and 1008 L models hold 360 and 576 blood bags of 450 mL.
- 03
Dual-zone display
Upper and lower chamber temperatures are shown separately with 0.1°C resolution.
- 04
72 hour alarm backup
A built-in battery keeps the display and five alarm conditions active during power loss.
- 05
Built-in thermal printer
Temperature records can be printed directly for blood bank documentation.
- 06
Acrylic inner doors
Inner doors reduce cold loss from the rest of the cabinet when one door is opened.
