Reference: GR-D5L

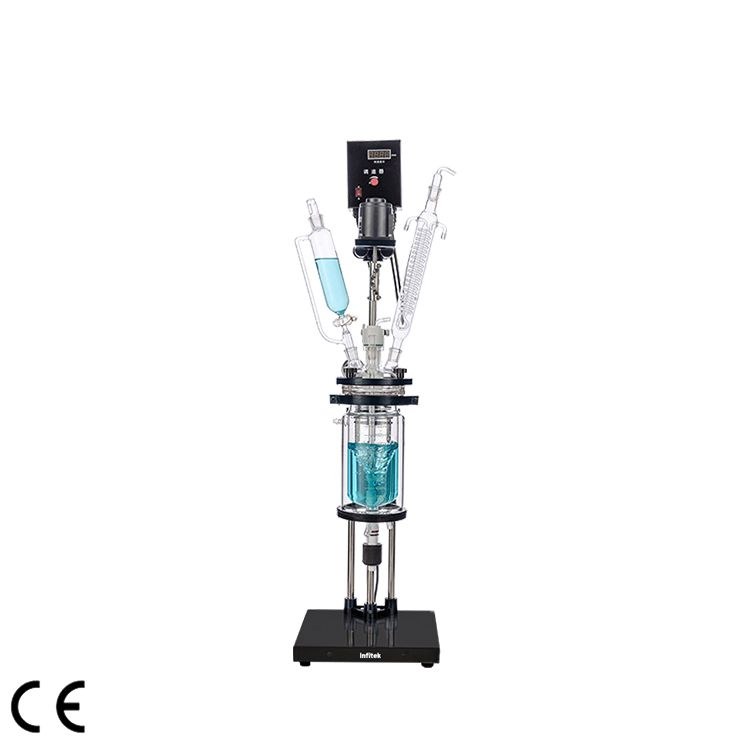

GR-D5L Double-Layer Glass Reactor, 5 L
5 L jacketed borosilicate glass reactor with stepless 0-1100 rpm stirring, five-port lid and a working range from -80°C to 250°C.
Key specifications
- Kettle capacity
- 5L Inner diameter 180mm outer diameter 230mm inner length 270mm
- Mezzanine capacity
- About 800ml
- Voltage frequency
- 220V/50Hz
- Mixing motor power
- 90W
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
GR-D5L Double-Layer Glass Reactor, 5 L
Request a quoteOverview
Product overview
The GR-D5L is a 5 L double-layer glass reactor with an electric constant speed stirring system and condensing and dropping system. It is used with an external vacuum source and a high or low temperature circulator connected to the jacket, which holds about 800 mL.
All wetted parts are high borosilicate glass 3.3 and PTFE, which are chemically stable. The kettle body works from -80°C to 250°C, and the system reaches a vacuum of 0.098 MPa shown on a pointer gauge. A 90 W motor gives electronic stepless speed control from 0 to 1100 rpm with digital display, and the stirring system uses double bearings and double oil seals.
The five-port lid provides stirring, condensing, constant pressure funnel, pressure relief and temperature ports. It includes a crescent paddle in 304 stainless steel with PTFE coating, a 500 mL constant pressure funnel, a coil condenser and a glass and PTFE side discharge valve. The frame is aluminum alloy and stainless steel, with fuse protection.
Specifications
Technical specifications
26 parameters
Specifications
- Kettle capacity
- 5L Inner diameter 180mm outer diameter 230mm inner length 270mm
- Mezzanine capacity
- About 800ml
- Voltage frequency
- 220V/50Hz
- Mixing motor power
- 90W
- Stirring speed
- 0-1100rpm/min
- Kettle body temperature range
- -80℃～+250℃
- Temperature measurement accuracy
- ±1℃
- Vacuum degree
- 0.098Mpa
- Kettle cover Φ 205mm Five port
- Mixing port / Φ 50mm Flange port
- Condensing port
- 29# Standard port
- Constant pressure funnel port
- 29# Standard port
- Decompression port
- 24# Standard port
- Temperature measuring port
- 24# Standard port
- Stirring paddle
- Φ10×600H(mm) Blade length125mm
- Condenser
- Φ60mm×450H(mm) Upper 24# standard port and lower 29# standard plug
- Constant pressure funnel
- 500ml The upper 24# standard port is equipped with a glass plug and the lower 29# standard plug
- Pressure relief valve
- 24# standard plug valve Outer diameter of vent nozzle 10mm
- Temperature measuring port
- 24# standard plug glass thermometer
- Mezzanine inlet and outlet circulation
- Φ 35 flange port supporting flange plate、outer diameter of adapter pagoda joint15mm
- Discharge port
- Φ18mm Discharge port Inclined discharge nozzleΦ12mm Off the ground350mm
- Vacuum pumping head
- 24#Glass suction head Outer diameter of nozzle10mm
- Inlet and outlet circulating nozzle of condensing coil
- External diameter 10mm
- Dimensions(W*D*H)
- 330×410×1480mm
- Net weight
- 28Kg
- Package size
- 1360*530*490mm Wooden box 0.36m³
- Packing weight
- 51.5Kg
Features
Key features
- 01
Inert wetted materials
High borosilicate glass 3.3 and PTFE in contact with materials resist chemical reaction.
- 02
Wide temperature range
Jacketed kettle operates from -80°C to 250°C with a connected circulator.
- 03
Stepless stirring
90 W motor with digital speed display from 0 to 1100 rpm.
- 04
Five-port lid
Ports for stirring, condenser, constant pressure funnel, pressure relief and thermometer.
- 05
Fast side discharge
Glass and PTFE discharge valve empties without residual liquid.
- 06
Durable sealing
Double bearings and double skeleton oil seals resist heat and wear.
