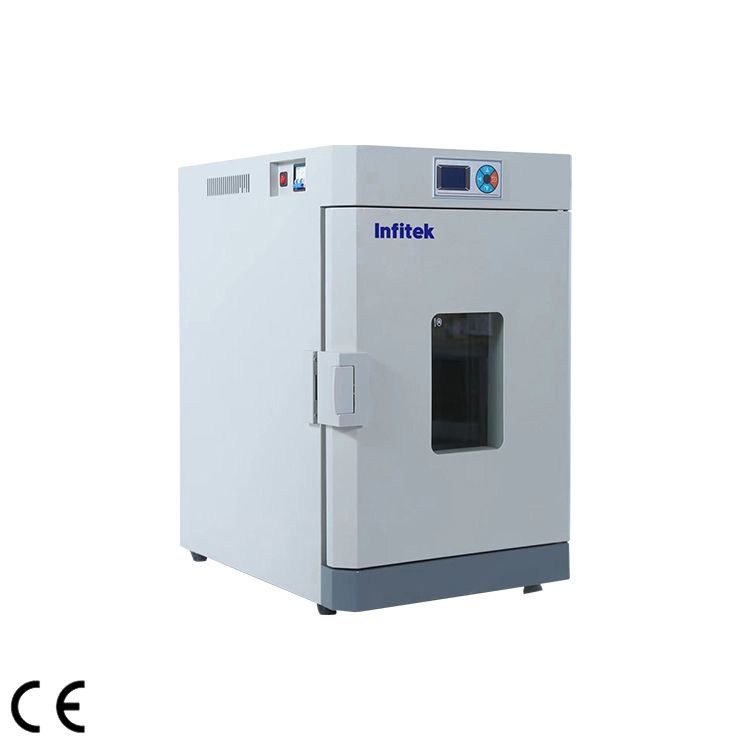

Dual Purpose Oven and Incubator DOI-Z Series

Forced air unit from 30 to 220 L that cultures microorganisms at ambient +5 to 80 °C or dries, bakes and sterilizes at 80 to 200 °C.

Key specifications

Capacity(L)
DOI-30Z: 30; DOI-50Z: 50; DOI-70Z: 70; DOI-140Z: 135; DOI-240Z: 220
Circulation
Forced air convection
Dimension (W*D*H), Internal (mm)
DOI-30Z: 340*325*290; DOI-50Z: 420*350*500; DOI-70Z: 400*360*500; DOI-140Z: 500*450*600; DOI-240Z: 550*500*800
Dimension (W*D*H), External (mm)
DOI-30Z: 490*520*690; DOI-50Z: 710*520*520; DOI-70Z: 540*550*870; DOI-140Z: 640*680*970; DOI-240Z: 690*700*1140
  • Configured to your application by our specialists
  • Installed and commissioned on site
  • Training and after-sales support across Jordan, the GCC and MENA

Overview

Product overview

The DOI-Z Series is a dual purpose forced air convection chamber. As an incubator it cultivates bacteria and viruses for laboratories, research units and industrial enterprises from ambient +5 to 80 °C, and as an oven it handles drying, baking, wax melting and sterilization from 80 to 200 °C.

Five models are available, DOI-30Z, DOI-50Z, DOI-70Z, DOI-140Z and DOI-240Z, with capacities of 30, 50, 70, 135 and 220 L. A PID controller with PT100 sensor gives ±0.5 °C fluctuation and 0.1 °C resolution. The large LCD menu supports fixed-value and timed runs from 1 to 9999 min, with an END display and buzzer at completion.

A large-impeller fan with rear suction and side circulation, laser-perforated adjustable shelves and a brushed stainless steel interior support even heating. A leakage protector, sound and light temperature alarm, self-diagnosis and thickened aluminum silicate insulation are standard, with optional test holes and an independent limiter.

Specifications

Technical specifications

22 parameters

Table 2

Capacity(L)
DOI-30Z: 30; DOI-50Z: 50; DOI-70Z: 70; DOI-140Z: 135; DOI-240Z: 220
Circulation
Forced air convection
Dimension (W*D*H), Internal (mm)
DOI-30Z: 340*325*290; DOI-50Z: 420*350*500; DOI-70Z: 400*360*500; DOI-140Z: 500*450*600; DOI-240Z: 550*500*800
Dimension (W*D*H), External (mm)
DOI-30Z: 490*520*690; DOI-50Z: 710*520*520; DOI-70Z: 540*550*870; DOI-140Z: 640*680*970; DOI-240Z: 690*700*1140
Temperature, Range (℃)
Oven： 80-200 Incubator：RT+5-80
Fluctuation (℃)
±0.5
Resolution (℃)
0.1
Uniformity (℃)
±2.5%
Sensor
PT100
Controller
PID
Display
LCD
Timer(min)
1-9999
Material, Internal
Stainless steel
Material, External
Electro-galvanized steel with antimicrobial powder coating
Shelves
2
Test Hole (mm)
Optional φ25,50,80
Safety Device
Leakage protector/Over- temperature alarm
Electricity
Voltage/Frequency (V/Hz) / 220/50
Consumption (W)
DOI-30Z: 550; DOI-50Z: 850; DOI-70Z: 1100; DOI-140Z: 1500; DOI-240Z: 2050
N. W./G.W. (kg)
DOI-30Z: 40/43; DOI-50Z: 42/45; DOI-70Z: 55/60; DOI-140Z: 70/90; DOI-240Z: 85/115
Package Dimension (W*D*H) (mm)
DOI-30Z: 600*630*800; DOI-50Z: 770*640*650; DOI-70Z: 650*640*1030; DOI-140Z: 720*880*1070; DOI-240Z: 740*970*1240
Optional
1.Independent temperature limiting controller 2.Intelligent LCD procedure temperature controller(Optional USB,RS485/232 and printer)
Features

Key features

  • 01

    Two functions

    Incubation from ambient +5 to 80 °C or drying, baking and sterilization from 80 to 200 °C.

  • 02

    Five capacities

    Models from 30 to 220 L for different sample volumes.

  • 03

    Menu LCD control

    Fixed-value and timed runs up to 9999 min with END display and buzzer reminder.

  • 04

    Uniform air flow

    Rear-suction fan with side circulation and laser-perforated shelves.

  • 05

    Adaptive heating

    Control parameters adjust to ambient temperature and load to save energy.

  • 06

    Safety features

    Leakage protector, temperature alarm and fault self-diagnosis display.
