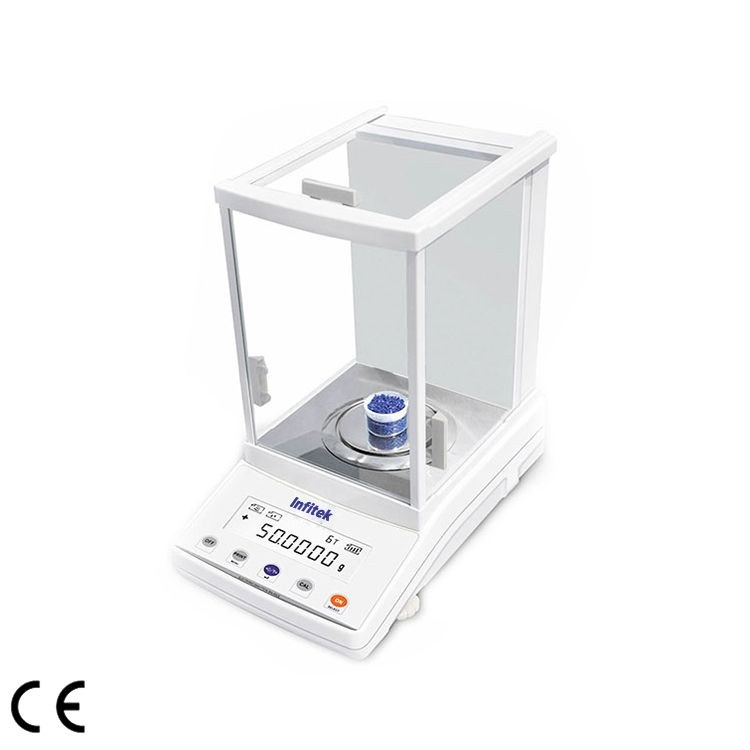

BA-W Series 0.0001 g Electronic Analytical Balance
Electronic analytical balances with 0.1 mg readability in five capacities from 100 g to 220 g, with an aluminium housing, large draft shield and RS232 output.
Key specifications
- Model
- BA-W1004 / BA-W1104 / BA-W1204 / BA-W2004 / BA-W2204
- Max. capacity
- 100g / 110g / 120g / 200g / 220g
- Calibration
- External Calibration
- Cal. Weight
- 200g
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
BA-W Series 0.0001 g Electronic Analytical Balance
Request a quoteOverview
Product overview
The BA-W series are electronic analytical balances for chemical laboratories, designed to measure mass precisely and detect fine increments. Five models cover 100 g, 110 g, 120 g, 200 g and 220 g (BA-W1004 to BA-W2204), all with 0.0001 g readability.
An electromagnetic sensor provides repeatability of ±0.0002 g, linearity of ±0.0003 g, a minimum weighing of 0.0004 g and stabilisation in 3 s or less. The aluminium housing carries a large 240 × 190 × 265 mm draft shield over a φ80 mm pan, and calibration is external using a 200 g weight.
Functions include tare, counting, unit conversion (g, mg, ct, oz) and sensitivity and speed settings, with overload and fault alarms and a level indicator. An RS232 interface is standard, and below-balance weighing and a printer are optional.
Specifications
Technical specifications
19 parameters
SPECIFICATIONS
- Model
- BA-W1004 / BA-W1104 / BA-W1204 / BA-W2004 / BA-W2204
- Max. capacity
- 100g / 110g / 120g / 200g / 220g
- Calibration
- External Calibration
- Cal. Weight
- 200g
- Readability
- 0.0001g
- Min Weighing
- 0.0004g
- Repeatability
- ±0.0002g
- Linearity
- ±0.0003g
- Stable Time
- ≤3s
- Operation Temp.
- 15～25℃
- Interface
- RS232
- Weighing Pan
- φ80mm
- Outer Size
- 340mm*215mm*350mm
- Draft Shield Size
- 240mm*190mm*265mm
- Package Size
- 530*390*540mm
- G.W.
- 10Kg
- Power Supply
- AC220V±10%，50/60Hz;110V±10%，50/60Hz; Power Cord; no battery.
- Standard Accessory
- Balance body, Weight, User manual, RS232, Windshield, Level indicator
- Optional Accessory
- Under weighting, Printer
Features
Key features
- 01
0.1 mg readability
Five capacities from 100 g to 220 g with 0.0001 g resolution.
- 02
Electromagnetic sensor
Repeatability of ±0.0002 g and linearity of ±0.0003 g.
- 03
Large draft shield
A 240 × 190 × 265 mm windshield on a sturdy aluminium housing.
- 04
Weighing functions
Tare, counting and unit conversion in g, mg, ct and oz.
- 05
Below-balance weighing option
An optional lower hook allows weighing of suspended samples.
- 06
RS232 interface
Standard data output with an optional printer.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
