Reference: MPW-H310 / MPW-H320

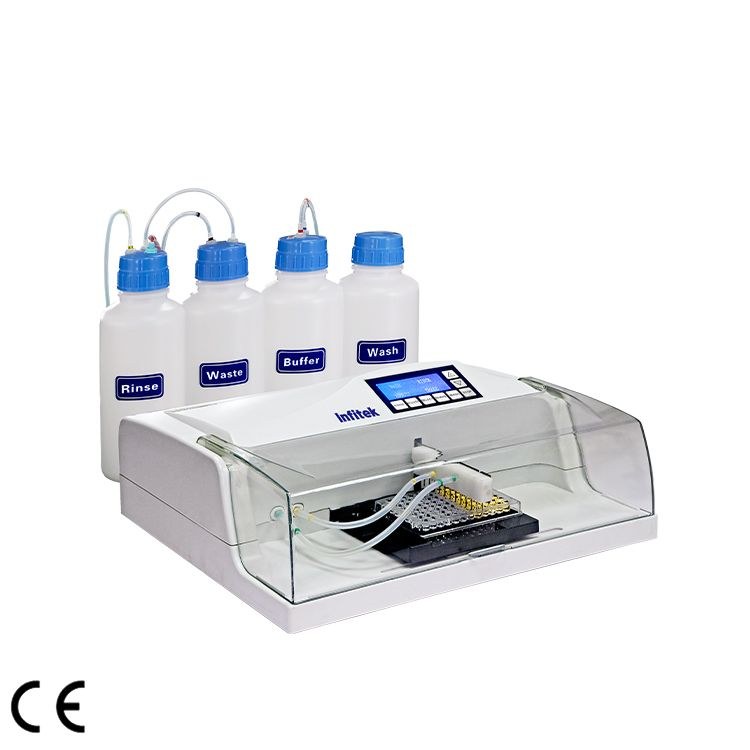

MPW-H310 / MPW-H320 ELISA Microplate Washer

Microplate washer for 96 and 48-well plates with 8 and 12-way manifolds, residual volume of 1 µL per well or less and storage for over 120 wash protocols.

Key specifications

Input
8 key membrane keyboard
Display
High brightness LCD display screen
Manifold
8 pins and 12 pins
Wash Mode
Strip mode and plate mode
  • Configured to your application by our specialists
  • Installed and commissioned on site
  • Training and after-sales support across Jordan, the GCC and MENA

Overview

Product overview

The MPW-H310 and MPW-H320 are ELISA microplate washers for flat, V-bottom and U-bottom plates and strips. They wash whole plates or 1 to 12 strips using the supplied 8-way and 12-way manifolds, dispensing 50 to 3000 µL per well with dosing accuracy within 10%.

Two-point aspiration leaves a residual volume of 1 µL per well or less, and the cleaning cycle includes bottom rinsing, overflow washing and fine adjustment of wash pressure. Wash cycles can be repeated 0 to 99 times, with soak times up to 3600 s and shaking up to 600 s. Vacuum and pressure are monitored automatically, an automatic rinse cycle is included, and there is an emergency stop and liquid level warning. The MPW-H320 uses pumps made in Germany.

A high-brightness LCD and 8-key membrane keypad give menu-driven operation in English or Chinese, and more than 120 user-defined wash protocols can be stored.

Specifications

Technical specifications

22 parameters

Specifications

Input
8 key membrane keyboard
Display
High brightness LCD display screen
Manifold
8 pins and 12 pins
Wash Mode
Strip mode and plate mode
Wash strips
1~12 adjustable
Applicable well
Flat, V-bottom or U-bottom
Washing times
0~99 times adjustable
Dipping time
0~3600s adjustable
Shaking time
0~600s adjustable
Residual volume
≤1μL/well
Liquid volume
50~3000ul/well
Sipping time
0.1~9.9s
Dosing accuracy
≤10%
Cleaning method
It features two-point liquid suction, bottom rinsing, overflow cleaning, and fine-tuning of cleaning fluid pressure.
language
Chinese, English
aisle
The washing solution and rinsing share a single channel.
Storage Capacity
More than 120 user defined wash board procedures
Power supply
AC100V~240V , 50~60Hz
Dimensions
448(L)×382(W)×163(H)mm
Net weight
8 kg
Package Dimension (W*D*H)(mm)
620*540*500
G.W.(kg)
14KG
Features

Key features

  • 01

    Plate or strip washing

    Wash whole plates or 1 to 12 strips with 8-way and 12-way manifolds.

  • 02

    Low residual volume

    Two-point aspiration leaves 1 µL per well or less.

  • 03

    Soak and shake

    Adjustable soak time up to 3600 s and shaking up to 600 s.

  • 04

    Automatic monitoring

    Vacuum and pressure are monitored automatically, with an automatic rinse cycle.

  • 05

    120+ wash programs

    Stores more than 120 user-defined wash protocols.

  • 06

    Safety functions

    Emergency stop and liquid level warning, with German pumps on the MPW-H320.
