Reference: FTA406

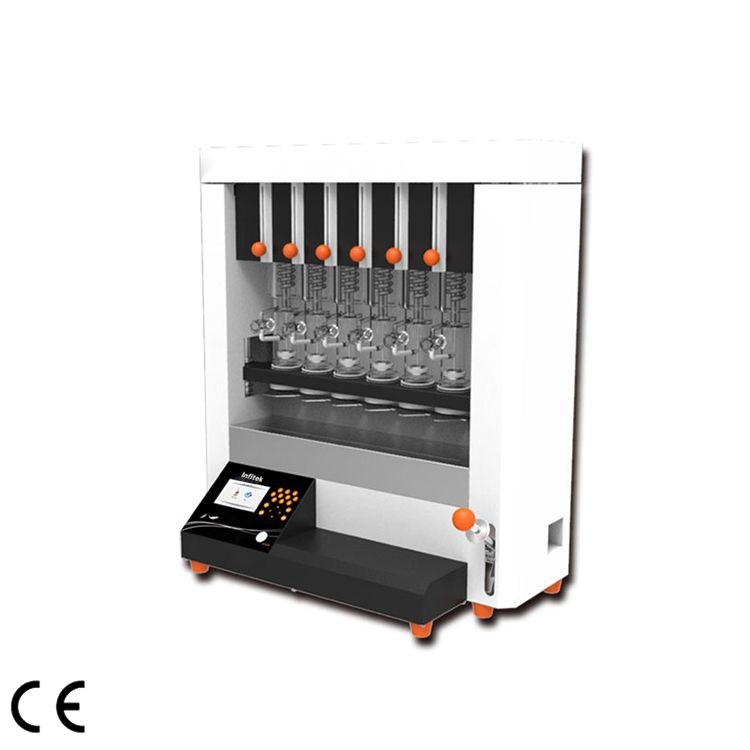

Semi-Automatic Fat Analyzer FTA406
Semi-automatic Soxhlet-type fat analyzer processing six samples per batch, with heating up to 280°C and solvent recovery of 80% or more.
Key specifications
- Model
- FTA406
- Temperature range
- Room temperature+5℃～ 280℃
- Measuring range
- 0 ～ 100%
- Temperature accuracy
- ±1℃
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Semi-Automatic Fat Analyzer FTA406
Request a quoteOverview
Product overview
The FTA406 is a semi-automatic fat analyzer based on Soxhlet extraction, measuring fat content from 0 to 100% in samples of 0.5 to 15 g (typically 2 to 5 g). It processes six samples per batch using 80 mL solvent cups.
Integral metal heating covers room temperature +5°C to 280°C with ±1°C accuracy, and the electric circuit is isolated from the extraction space for safety. Extraction time is shortened by 20 to 80% compared with conventional methods, and solvent recovery is at least 80%. An air insulation design keeps the case near room temperature.
A 4.3-inch LCD with microcomputer control shows set and actual temperature together with set and elapsed time. Timer functions, over-temperature alarms and sound, light and on-screen prompts are included, and linear bearings give smooth lifting of the extraction assembly.
Specifications
Technical specifications
13 parameters
Specifications
- Model
- FTA406
- Temperature range
- Room temperature+5℃～ 280℃
- Measuring range
- 0 ～ 100%
- Temperature accuracy
- ±1℃
- Sample weight
- 0.5 ～ 15g(generally 2 ～ 5g,depending on sample)
- Capacity per batch
- 6pcs/batch
- Solvent cup volume
- 80mL
- Solvent recovery
- ≥80%
- Shortened extraction time
- 20 ～ 80%
- Power supply
- 220VAC±10%, 50Hz
- Power
- 1KW
- Dimensions
- 650mm×320mm×715mm
- Net Weight
- 35Kg
Features
Key features
- 01
Six samples per batch
Processes six samples at a time with 80 mL solvent cups.
- 02
Wide temperature range
Integral metal heating from room temperature +5°C to 280°C with ±1°C accuracy.
- 03
Solvent recovery
Recovers at least 80% of solvent and shortens extraction time by 20 to 80%.
- 04
Isolated circuit
Electric circuit is separated from the extraction space for safe operation.
- 05
Triple alarms
Sound, light and LCD text prompts for over-temperature and timer events.
- 06
Smooth lifting
Linear bearing lifting mechanism for easy, steady operation.
