Reference: GEP-GD100 / GEP-GD1000

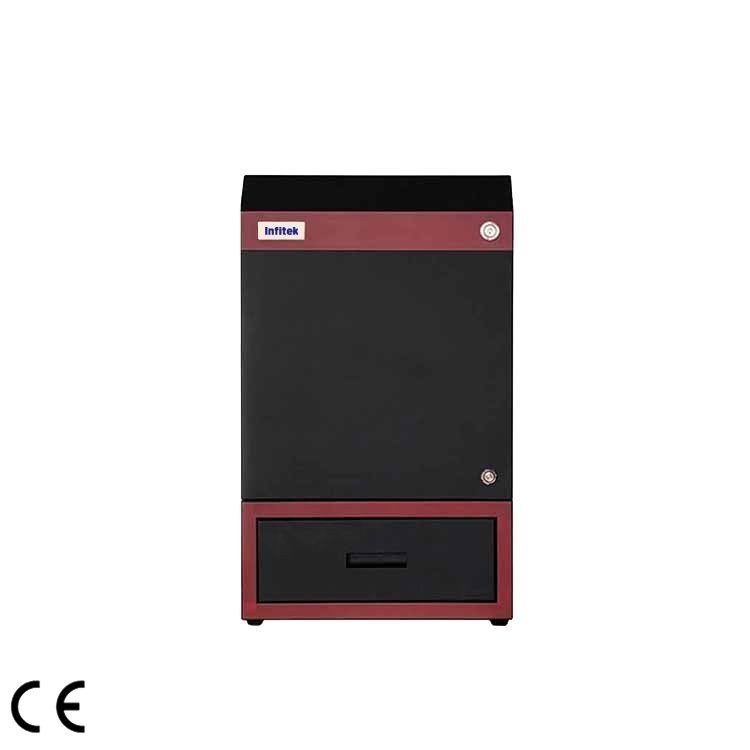

Gel Imaging System GEP-GD100, GEP-GD1000
Automated gel documentation systems with a 5.03 MP, 16-bit CCD camera and auto-focus lens for nucleic acid and SDS-PAGE gel imaging.
Key specifications
- Pixel
- 2592*1944(5.03MP)
- Exposure Time
- 1ms-3000ms
- QE Value
- High QE: ＞69%
- Binning
- 1*1
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Gel Imaging System GEP-GD100, GEP-GD1000
Request a quoteOverview
Product overview
The GEP-GD100 and GEP-GD1000 are integrated, fully automated gel imaging systems for nucleic acid gels stained with fluorescent dyes such as EB, SYBR Gold, SYBR Green, SYBR Safe, GelRed and GelGreen, and for SDS-PAGE protein gels under white light.
A high-sensitivity CCD camera captures 2592 × 1944 pixels (5.03 MP) at 16-bit depth, with exposure from 1 ms to 3000 ms and quantum efficiency above 69%. An auto-focus lens and a dedicated 590 nm filter for nucleic acid dyes are standard. Illumination includes 302 nm trans-UV over a 21 × 21 cm area, LED epi-white light and a self-luminous white light sample plate, with optional epi-UV and blue light configurations.
A dedicated overlay gel cutting filter protects against UV and blue light, so bands can be cut without a darkroom, even in bright conditions. The GD100 has an all-stainless steel body, while the GD1000 uses ABS engineering plastic. The interface has a capture button and time control, with no manual adjustment needed.
Specifications
Technical specifications
17 parameters
Specifications
- Pixel
- 2592*1944(5.03MP)
- Exposure Time
- 1ms-3000ms
- QE Value
- High QE: ＞69%
- Binning
- 1*1
- Bit Depth
- 16bit（0-65535）
- OD
- ≥4.8OD
- Electric lens
- 20 million pixel auto-focus lens
- Trans-UV
- 302nm,optional blue light transmissive configuration
- Epi-White
- LED Reflection (Cold Light)
- Trans white
- LED White light Self-Emitting Sample Plate
- Epi-UV(Optional)
- GEP-GD100: 254nm+365nm; GEP-GD1000: Select one set from optional configurations:254nm, 302nm, 365nm
- Filters(Optional)
- 590nm standard (others optional)
- UV area
- 21*21cm
- Timing off
- 1~60min
- Dimensions
- GEP-GD100: 360*375*605mm; GEP-GD1000: 380*405*695mm
- Package Dimension (W*D*H) (mm)
- GEP-GD100: 480*495*725; GEP-GD1000: 500*525*825
- Net Weight
- GEP-GD100: 30.5kg; GEP-GD1000: 35.5kg
Features
Key features
- 01
5.03 MP CCD camera
High-resolution 16-bit CCD with exposure from 1 to 3000 ms.
- 02
Auto-focus lens
Motorized auto-focus lens with a dedicated nucleic acid dye filter.
- 03
Multiple light sources
302 nm trans-UV, LED epi-white and a white light sample plate for SDS-PAGE.
- 04
Gel cutting filter
Protects against UV and blue light so gels can be cut without a darkroom.
- 05
Two body options
Stainless steel GD100 or ABS engineering plastic GD1000.
- 06
Simple operation
Fully automated interface with capture button and timing control.
