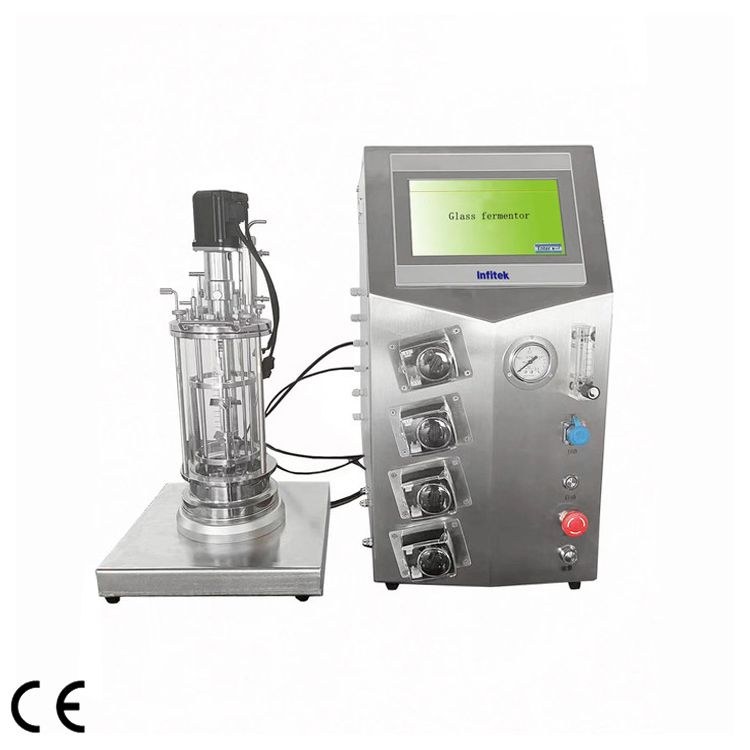

GF-J Series Benchtop Glass Fermenter

Specifications

Liquid Loading Coefficient

65-80%, 70% is optimal

Tank Configuration

Special temperature-resistant and pressure-resistant single-layer high-silicon borosilicate glass tank, the upper cover is made of 316L stainless steel or double-layer stainless steel + high-silicon borosilicate glass tank.

Stirring System

l Top-entry mechanical stirring system; aseptic mechanical seal system; top magnetic drive stirring; l The imported servo stirring motor is easy to disassemble and assemble, and it is convenient for off-site sterilization; l The standard three-layer blades are flat blades, inclined blades, and toothed defoaming paddles. The height of the blades is adjustable and detachable.

Structure

Desktop fermenter, compact structure,easy to operate

Ventilation System

l Deep ventilation, equipped with stainless steel annular distributor. l Glass rotameter display, pressure gauge display, manual valve to adjust the flow. l Equipped with American Sartorius high-efficiency sterilizing filter, the filtration accuracy is 0.2μm, and external compressed air is required. l Equipped with high-quality decompression device, continuous and stable gas supply. l The optio

Temperature Control

On-line detection, digital setting, automatic/manual control; German Pt-100 temperature probe, built-in electric heating device and external cooling water for automatic temperature control.

pH Control

On-line detection, 1-way or 2-way peristaltic pumps automatically feed alkali or acid for adjustment; imported Swiss Mettler/Hamilton pH electrode, which can be sterilized by high temperature steam.

Dissolved Oxygen (DO)

l Online detection, the range is 0-100% or 0-200%. l Imported Swiss Mettler/Hamilton DO electrode, which can be sterilized by high temperature steam. l Can be linked with speed control, can be linked with feeding control.

Feeding Control

Standard 1-way peristaltic pump time proportional feeding,cumulative display and recording of feeding volume;10-segment feeding program, can be linked with DO.

Defoaming Method

l Conductive foam electrode, automatic alarm for abnormal foam conditions; l Standard 1-way peristaltic pump automatically/manually feeds defoamer, cumulative display and record of the amount added; l The defoaming pump can be switched to a feeding pump and used as a feeding pump, and 10-segment feeding programs can be set.

Control System

Industrial-grade control system, using Siemens PLC controller, 64-bit true color touch screen operation interface, complete functions and stable operation.

Sterilization Method

Off-site or on-site sterilization

Optional

1.Multi-way feeding 2. Feeding weighing 3. Oxygen-enriched bypass 4. Online detection of redox potential 5. Air flow automatic detection and control 6. Online detection of tail gas CH 4 , O 2 , CO 2 content

Dimension of Control Cabinet (L*W*H)

400*300*600mm

Weight of Control Cabinet

25kg

Stirring Speed

0-1000rpm（set arbitrarily）

Internal Dimension of Tank(Φ*H)

GF-J1: 100*175; GF-J2: 160*200; GF-J3: 160*250; GF-J5: 160*300; GF-J7: 160*350; GF-J10: 190*375

Nominal Volume

GF-J1: 1L; GF-J2: 2L; GF-J3: 3L; GF-J5: 5L; GF-J7: 7L; GF-J10: 10L

Weight of Tank

GF-J1: 5kg; GF-J2: 7kg; GF-J3: 13kg; GF-J5: 17kg; GF-J7: 22kg; GF-J10: 24kg

Shipping Dimension

800*450*750mm

Gross Weight

GF-J1: 48kg; GF-J2: 50kg; GF-J3: 58kg; GF-J5: 60kg; GF-J7: 65kg; GF-J10: 70kg
