Reference: SP-CLR580A / SP-CLR580B

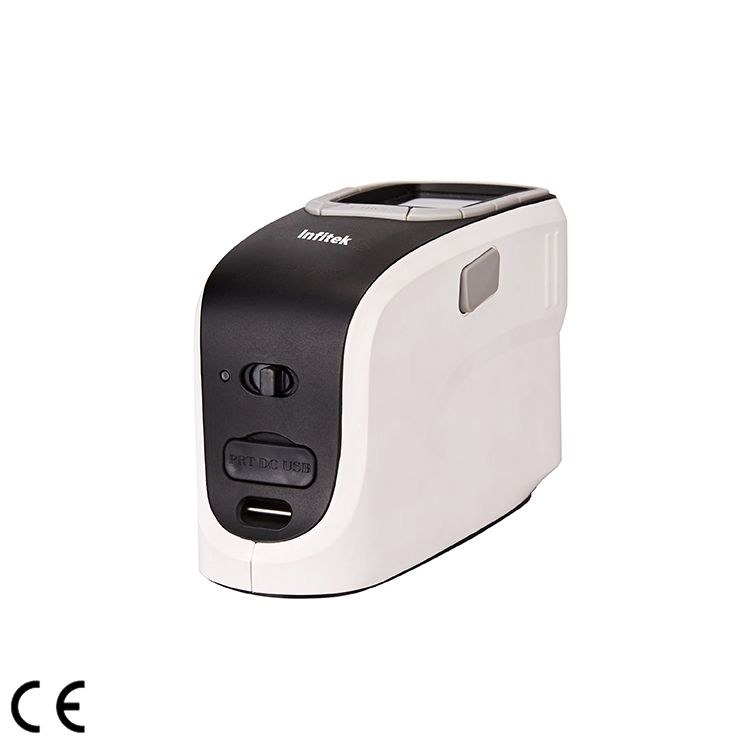

SP-CLR580A / SP-CLR580B Portable Grating Spectrophotometer

Portable D/8 grating spectrophotometer with simultaneous SCI/SCE measurement, built-in camera positioning and colour QC software for surface colour control.

Key specifications

Optical Geometry
D/8(Diffused lighting, 8 degrees observe angle)、SCI(specular reflection included)/SCE(specular reflection excluded),simultaneous measurement. (conform to CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、 JIS Z8722 Condition c standards)
Integrating Sphere Size
φ40mm, diffused reflection surface coating
Light Source
CLEDs(entire wavelength balanced LED light source)
Sensor
Dual light path sensor array
  • Configured to your application by our specialists
  • Installed and commissioned on site
  • Training and after-sales support across Jordan, the GCC and MENA

Overview

Product overview

The SP-CLR580A and SP-CLR580B are portable colour spectrophotometers using D/8 geometry with a 40 mm integrating sphere and simultaneous SCI and SCE measurement. A single-grating, dual-light-path SCS optical engine and a spectrally balanced CLED light source cover 400 to 700 nm at 10 nm intervals, with a reflectance range of 0 to 200%.

Type A has a 10 mm measuring aperture, while Type B offers 4 mm and 6 mm apertures. A built-in camera shows the measured area for accurate positioning, Every Time Calibration (ETC) checks against an internal white reference, and automatic gloss compensation supports surfaces of different gloss. The instrument offers 28 standard illuminants and 40 colour indices, including whiteness, yellowness, tint, metamerism and colour strength.

Supplied PC colour QC software stores results and generates and prints test reports, making the instrument suitable for colour management across paint, plastics, textile and printing industries.

Specifications

Technical specifications

31 parameters

Specifications

Optical Geometry
D/8(Diffused lighting, 8 degrees observe angle)、SCI(specular reflection included)/SCE(specular reflection excluded),simultaneous measurement. (conform to CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、 JIS Z8722 Condition c standards)
Integrating Sphere Size
φ40mm, diffused reflection surface coating
Light Source
CLEDs(entire wavelength balanced LED light source)
Sensor
Dual light path sensor array
Wavelength Range
400-700nm
Wavelength Interval
10nm
Half Spectral Width
5nm
Measured Reflectance Range
0-200%
Reflectance Resolution
0.01%
Observer Angle
2°/10°
Illuminant
A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF
Display
SPD distribution/data,sample’s color values,color difference values/graph, pass/fail results, color error tendency, color simulation,display measurement area,history data color simulation,manual input standard sample,generate measurement report
Measuring Time Interval
2s
Measuring Time
1s
Color Space
CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance
Color Difference Formula
ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00
Other Colorimetric Index
WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby)； YI(ASTM D1925，ASTM E313-00,ASTM E313-73)；Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness, Covering power, force,Opacity, color strength
Repeatability
Light splitting reflectivity:standard deviation within 0.08%
Measuring Aperture
SP-CLR580A: φ10mm; SP-CLR580B: φ4mm, 6mm
Inter-instrument Error
ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
Battery
Rechargeable, 10000 continuous tests, 7.4V/6000mAh
Interface
USB
Data Storage
20000 test results
Illuminant Life Span
1.5 million measurements in 5 years
Screen
True color screen that includes all colors
Operating Environment
0~45℃, relative humidity 80% or below( at 35°C ),no condensation
Operating Environment
-25℃~55℃，relative humidity 80% or below(at 35°C ),no condensation
Standard Accessory
DC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, spire lamella, portable bag, electronic color charts
Optional Accessory
Powder molding device, micro printer, measurement and test report
External Dimension(L*W*H))
181*73*112mm
Net Weight
About 0.55kg(excluding battery’s weight)
Features

Key features

  • 01

    D/8 with SCI/SCE

    Diffuse illumination with 8-degree viewing measures specular-included and specular-excluded values simultaneously.

  • 02

    Camera positioning

    A built-in camera shows the target area in real time so the operator can confirm the measurement spot.

  • 03

    Balanced CLED source

    A full-spectrum balanced LED source avoids the spectral gaps of common white LEDs.

  • 04

    Every Time Calibration

    An internal standard white reference supports reliable accuracy and repeatability on every measurement.

  • 05

    Two aperture options

    Type A uses a 10 mm aperture, and Type B provides 4 mm and 6 mm apertures for smaller samples.

  • 06

    Extensive colour indices

    28 standard illuminants and 40 colour indices, with PC software for storing data and printing reports.
