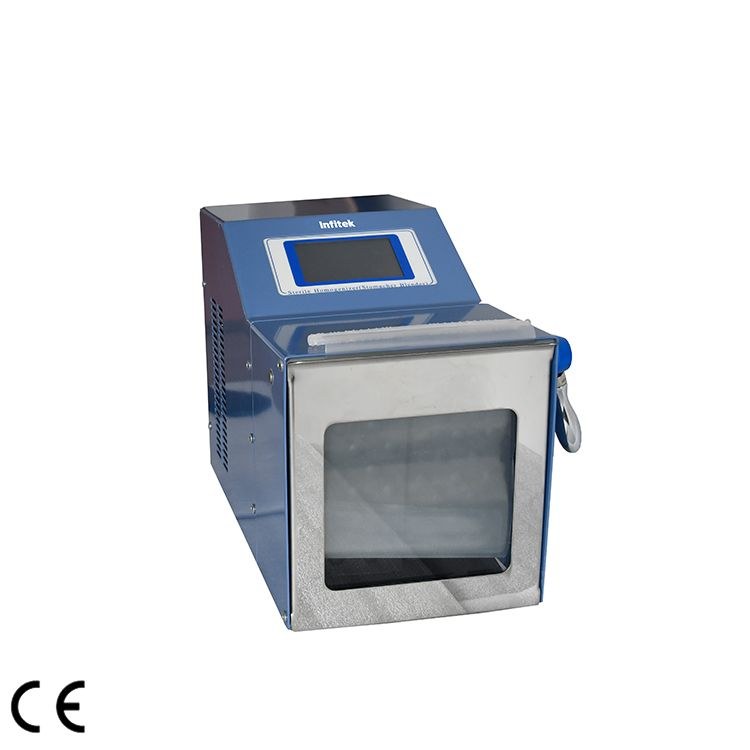

LC-H11L, LC-9, LC-8 Digital Paddle Blender Homogenizers
Touch-screen paddle blender homogenizers for 3 to 400 mL samples in sterile bags, available as standard, UV sterile and heated sterilization models.
Key specifications
- Control mode
- Microcomputer control
- Parameter storage
- 8-segment combination programming
- Display mode
- 4.3 inch touch screen display
- Operation mode
- touch screen
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
LC-H11L, LC-9, LC-8 Digital Paddle Blender Homogenizers
Request a quoteOverview
Product overview
These paddle blender homogenizers prepare samples by beating them inside disposable sterile bags, so the sample never touches the instrument. They separate microorganisms from the surface of solid samples without temperature rise or cross-contamination, and are used for microbial testing in food, drug, cosmetics, clinical, molecular and toxin laboratories. They can also homogenize tumour tissues to obtain large numbers of single cells.
Three models share a 4.3-inch touch screen, 8-segment programming, a slap rate of 3 to 12 per second and a time range from 1 s to 99 h 59 min 59 s or continuous operation. The LC-8 is the standard model, the LC-9 adds 253.7 nm UV disinfection, and the LC-H11L adds both UV disinfection and heating from room temperature to 80°C.
The effective volume is 3 to 400 mL in 17 × 30 cm bags, with paddle spacing adjustable from 0 to 50 mm. Stainless steel paddles with protective covers, slow start, a pause function, voice prompts, anti-pinch automatic stop and a removable tempered glass window are standard.
Specifications
Technical specifications
23 parameters
Specifications
- Control mode
- Microcomputer control
- Parameter storage
- 8-segment combination programming
- Display mode
- 4.3 inch touch screen display
- Operation mode
- touch screen
- Slap time
- 1s-99H59M59S or continuous operation
- Clapper material
- Stainless steel with special extrusion protective cover
- Slap speed
- 3-12 times / S
- Heating function
- LC-H11L（Heating sterilization type）: Yes; LC-9（Sterile type）: –; LC-8（Standard type）: –
- Temperature range
- LC-H11L（Heating sterilization type）: Room temperature – 80 ℃; LC-9（Sterile type）: –; LC-8（Standard type）: –
- Disinfection function
- LC-H11L（Heating sterilization type）: Yes,the disinfection wavelength is 253.7nm; LC-9（Sterile type）: Y,the disinfection wavelength is 253.7nm; LC-8（Standard type）: –
- Effective volume
- 3～400ml
- Aseptic bag size
- 17*30cm
- Tank body
- Stainless steel with anticorrosive plastic spraying
- Slap spacing
- 0～50mm
- Startup mode
- slow-start
- Pause function
- Yes
- Power
- LC-H11L（Heating sterilization type）: 220V/500W; LC-9（Sterile type）: 220V/220W; LC-8（Standard type）: 220V/200W
- Anti pinch function
- With automatic stop anti pinch function
- Other function
- Removable window with terpering glass
- Voice prompt function
- Yes
- Size
- 420*230*330mm
- Weight (net weight)
- LC-H11L（Heating sterilization type）: 19KG; LC-9（Sterile type）: 18.5KG; LC-8（Standard type）: 18KG
- Outer package size
- 540*310*410
Features
Key features
- 01
Three model choices
Standard LC-8, UV sterile LC-9 and heated sterilization LC-H11L.
- 02
Sterile bag processing
Samples stay in disposable bags, with no contact with the instrument and no washing of utensils.
- 03
Adjustable slap rate
3 to 12 slaps per second with paddle spacing from 0 to 50 mm.
- 04
Touch screen programming
4.3-inch touch screen with 8-segment combination programs.
- 05
Safety functions
Anti-pinch automatic stop, slow start, pause and voice prompts.
