Reference: LCB-V1400J

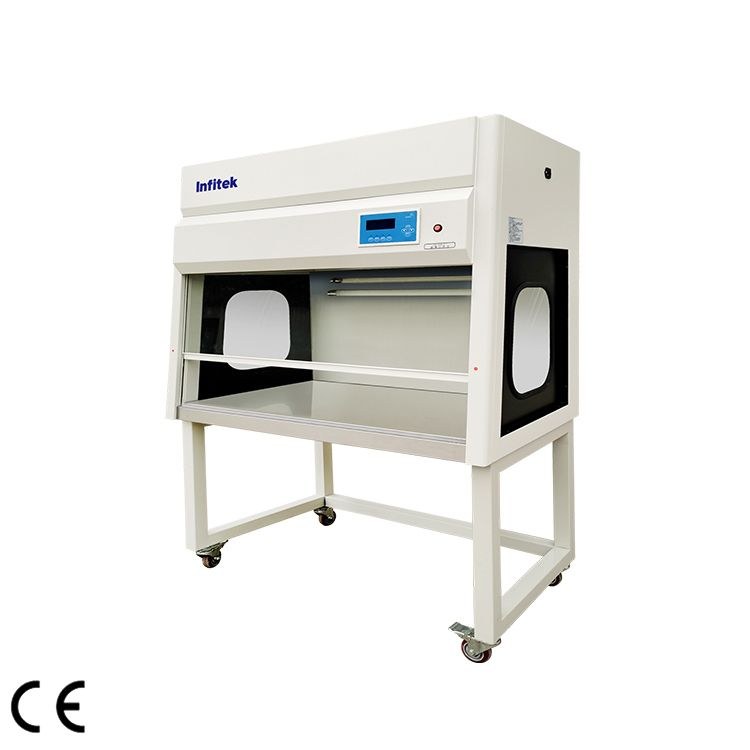

Vertical Laminar Flow Cabinet LCB-V1400J, Medical Type
Vertical laminar flow cabinet for two operators working side by side, delivering ISO Class 5 (Class 100) clean air with adjustable velocity of 0.25 to 0.6 m/s.
Key specifications
- Model
- LCB-V1400J
- Airflow mode
- Vertical air supply
- Cleanliness level
- ISO Class 5 (Class 100)
- Colony amount
- ≤0.5 pcs/dish/h (φ90mm culture dish)
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Vertical Laminar Flow Cabinet LCB-V1400J, Medical Type
Request a quoteOverview
Product overview
The LCB-V1400J is a vertical laminar flow cabinet in which filtered air flows downward over the work surface, providing ISO Class 5 (Class 100) cleanliness with a colony count of 0.5 or less per 90 mm dish per hour. It is designed for two operators on a single work surface.
Air velocity is adjustable between 0.25 and 0.6 m/s, noise is 65 dBA or lower and illuminance is at least 300 lx. The work area measures 1400 × 580 × 520 mm, maximum power consumption is 500 W and vibration is kept to 3 μm or less.
The cabinet has a 10° inclined, semi-enclosed countertop with a stepped front, a sprayed cold-rolled steel body and a centrifugal fan that helps extend filter life. An LCD shows system parameters set with touch buttons, the UV lamp and lighting are interlocked, and glass side windows give good lighting.
Specifications
Technical specifications
16 parameters
Specifications
- Model
- LCB-V1400J
- Airflow mode
- Vertical air supply
- Cleanliness level
- ISO Class 5 (Class 100)
- Colony amount
- ≤0.5 pcs/dish/h (φ90mm culture dish)
- Downflow velocity
- 0.25-0.6m/s（adjustable）
- Sound emission
- ≤65dBA
- Illuminance
- ≥300LX
- Vibration half-peak value
- ≤3μm（X.Y.Z direction）
- Max. power consumption
- 500W
- Electricity
- AC220V±10%,50/60Hz
- Net weight
- 120kg
- Gross weight
- 220kg
- Work area dimensions (W*D*H)
- 1400*580*520mm
- External dimensions (W*D*H)
- 1500*695*1650mm
- Package dimension (W*D*H)
- 1600*790*1800mm
- Applicable number of people
- Double-person and single surface
Features
Key features
- 01
Two-operator work surface
Single 1400 mm wide surface designed for two people working at the same time.
- 02
ISO Class 5 cleanliness
Class 100 clean air with a colony count of 0.5 or less per dish per hour.
- 03
Adjustable airflow
Downflow velocity adjustable from 0.25 to 0.6 m/s.
- 04
Centrifugal fan
High-quality centrifugal fan that helps extend the service life of the filter.
- 05
LCD and touch control
LCD shows system parameters, adjusted with touch-type buttons.
- 06
UV interlock
UV lamp and lighting lamp are interlocked, with glass side windows for good lighting.
