Reference: PSA-2L2309A
PSA-2L2309A Professional Laser Particle Size Analyzer
Professional laser diffraction particle size analyzer with separate modular wet and dry dispersion units, measuring 0.01 to 3500 μm wet and 0.1 to 3000 μm dry.
Key specifications
- Item
- F unction
- Analysis Modes
- Free Distribution, R-R Distribution, Log-Normal Distribution, Mesh Size Classification, etc., meet the diverse particle size statistical requirements of different industries.
- Statistical Methods
- Volume Distribution, Quantity Distribution
- Statistical Comparison
- It can conduct comparative analysis on multiple test results. By comparing test results of different batches of samples, samples before and after processing, and samples tested at different times, differences can be identified. This is of great practical significance for quality control of industrial raw materials.
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
PSA-2L2309A Professional Laser Particle Size Analyzer
Request a quoteOverview
Product overview

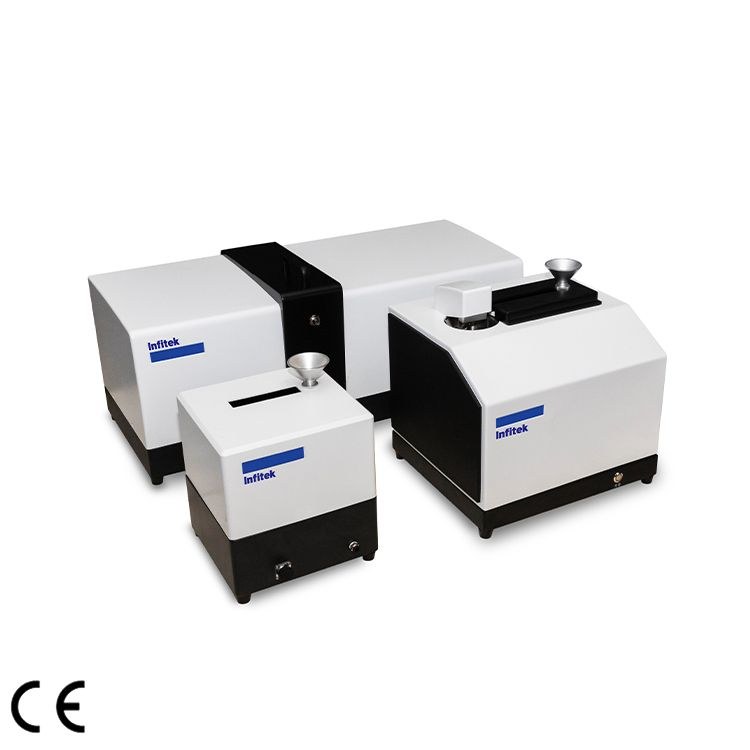

The PSA-2L2309A is a fully automatic laser particle size analyzer based on Mie scattering and Fraunhofer diffraction to ISO 13320. It combines wet and dry dispersion through separate modules that users assemble according to the sample, measuring 0.01 to 3500 μm wet and 0.1 to 3000 μm dry. Accuracy and repeatability are ≤0.5% (CRM D50) wet and ≤1% dry.
An inverse Fourier (folded) optical path with a Canon lens and a log-spaced array of 116 detectors covers scattering angles from 0.015° to 145°, and the sealed optics resist dust. Precision four-phase hybrid stepper motors align the optical path automatically. The modular dispersion design shortens the circulation pipeline to prevent large particles settling and simplifies cleaning, with a 600 mL sample tank, 40 kHz 60 W ultrasonic and a stirrer adjustable to 3000 rpm.
Both a fully automatic SOP-based mode and manual control are available. Wet tests take ≤2 minutes and dry tests ≤1 minute, and an optional audit trail supports 21 CFR Part 11 for regulated quality control and research labs.
Specifications
Technical specifications
36 parameters
Specifications
- Item
- F unction
- Analysis Modes
- Free Distribution, R-R Distribution, Log-Normal Distribution, Mesh Size Classification, etc., meet the diverse particle size statistical requirements of different industries.
- Statistical Methods
- Volume Distribution, Quantity Distribution
- Statistical Comparison
- It can conduct comparative analysis on multiple test results. By comparing test results of different batches of samples, samples before and after processing, and samples tested at different times, differences can be identified. This is of great practical significance for quality control of industrial raw materials.
- User-defined Analysiss
- Calculate the percentage based on particle size. Calculate the particle size based on the percentage. Calculate the percentage based on the particle size range. These functions meet the representativeness requirements of particle testing across various industries.
Specification
- Model
- PSA-2L2309A
- Instrument type
- Wet and Dry
- Measuring range
- Wet: 0.01μm to 3500μm Dry: 0.1μm to 3000μm
- Photodetector
- Wet: 116 Dry: 116
- Accuracy
- Wet: ≤0.5% (CRM D50) Dry: ≤1% (CRM D50)
- Repeatability
- Wet: ≤0.5% (CRM D50) Dry: ≤1% (CRM D50)
- Design principle
- Laser Diffraction
- Analysis principle
- Mie Scattering Fraunhofer Diffraction
- Standard
- ISO 13320
- Audit trail
- Optional FDA software
- Laser
- Fiber Laser, 639nm, Max. 4mW
- Laser safety
- Class 1
- Detector
- Log-spaced array, 0.015° to 145°
- Operation mode
- Full Automatic Manual Control
- Optical alignment
- Full Automatic
- Test speed
- Wet: ≤2min Dry: ≤1min Typical testing time: ≤10s Inverval time per test result: 500ms
- Ultrasonic
- Frequency: 40kHz Power: 60W Time: adjustable
- Stirrer
- Speed: 0rpm to 3000rpm adjustable
- Circulate
- Rated Flow: 1-8L/min Rated Power: 120W
- Sample tank
- Volume: 600mL
- Micro-sample cuvette
- Optional
- Dry dispersion
- Dry-turbulence dispersion patent, normal shock wave shear technique
- Sample feeding
- Automatic Sampler (SOP setting)
- Dispersion medium
- Compressed Air
- Connect PC, LIMS
- Yes
- Test Report
- Word, Excel, Image, Text, etc.
- Working environment
- Temperature: 5℃ to 35℃ Humidity: ＜85%
- Storage environment
- Temperature: -20℃ to 50℃
- Power supply
- 220V, 50/60Hz
- Product dimensions (L×W×H)
- 870mm×370mm×330mm 420mm×350mm×380mm 260mm×290mm×140mm
- Net weight
- 32kg 15kg 7kg
Features
Key features
- 01
Separate wet and dry modules
Assemble the dispersion modules to suit each sample for simple, efficient testing.
- 02
Wide measuring range
0.01 to 3500 μm wet and 0.1 to 3000 μm dry.
- 03
Folded Fourier optics
Inverse Fourier optical path with a Canon lens covers 0.015° to 145°.
- 04
Automatic alignment
Four-phase hybrid stepper motors keep the optics aligned with micron-level precision.
- 05
Short circulation path
Prevents sedimentation of large particles and reduces cleaning and maintenance.
- 06
SOP automatic mode
Easy automatic operation with SOPs, plus manual control and optional 21 CFR Part 11 audit trail.
