ICB-MS-HL Series Medicine Stability Testing Chamber
ICH stability chambers from 150 L to 1000 L with 10-65°C and 15-95% RH control, inverter cooling and a 7-inch programmable touch screen.
Key specifications
- Type
- ICB-MS150-HL: Single-door; ICB-MS250-HL: Single-door; ICB-MS400-HL: Single-door; ICB-MS500-HL: Single-door; ICB-MS1000-HL: Double-door
- Shelf (Standard)
- ICB-MS150-HL: 3/6; ICB-MS250-HL: 3/7; ICB-MS400-HL: 3/10; ICB-MS500-HL: 4/11; ICB-MS1000-HL: 4/8
- Capacity (L)
- ICB-MS150-HL: 150; ICB-MS250-HL: 250; ICB-MS400-HL: 400; ICB-MS500-HL: 500; ICB-MS1000-HL: 1000
- Temperature Range (℃)
- 10～65
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA

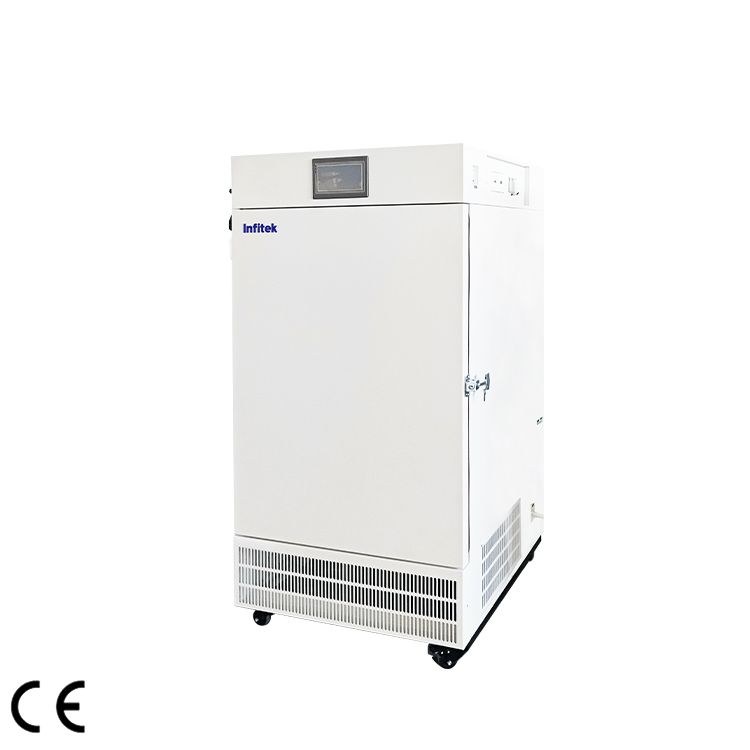

ICB-MS-HL Series Medicine Stability Testing Chamber
Request a quoteOverview
Product overview
The ICB-MS-HL series are medicine stability testing chambers designed to meet ICH stability test requirements under full load, even after years of use. Five models are available at 150, 250, 400, 500 and 1000 L, with the 1000 L model in a double-door format.
Temperature is controlled from 10°C to 65°C with ±0.5°C fluctuation and ±1.0°C uniformity, and humidity from 15% to 95% RH with ±2.0% fluctuation and ±3.0% uniformity. An imported variable frequency compressor cuts energy use by more than 50% compared with the previous generation. A PTC humidifier with automatic protection, a high-precision capacitive humidity sensor and automatic water circulation use purified water.
Control is through a 7-inch color programmable touch screen with maintenance reminders and network port connection. The interior is 304 stainless steel with a tempered glass inner door, the evaporator has a corrosion-resistant coating, and five layers of protection including critical leakage protection are built in, with on-site audible and visual alarms.
Specifications
Technical specifications
29 parameters
Specifications
- Type
- ICB-MS150-HL: Single-door; ICB-MS250-HL: Single-door; ICB-MS400-HL: Single-door; ICB-MS500-HL: Single-door; ICB-MS1000-HL: Double-door
- Shelf (Standard)
- ICB-MS150-HL: 3/6; ICB-MS250-HL: 3/7; ICB-MS400-HL: 3/10; ICB-MS500-HL: 4/11; ICB-MS1000-HL: 4/8
- Capacity (L)
- ICB-MS150-HL: 150; ICB-MS250-HL: 250; ICB-MS400-HL: 400; ICB-MS500-HL: 500; ICB-MS1000-HL: 1000
- Temperature Range (℃)
- 10～65
- Temperature Fluctuation (℃)
- ±0.5
- Temperature Uniformity (℃)
- ±1.0
- Humidity Range (RH)
- 15～95%
- Humidity Fluctuation
- ±2.0%
- Humidity Uniformity
- ±3.0%
- Electricity
- 220V, 50Hz/60Hz
- Power (kW)
- ICB-MS150-HL: 1.5; ICB-MS250-HL: 1.8; ICB-MS400-HL: 2.0; ICB-MS500-HL: 2.2; ICB-MS1000-HL: 3.0
- Water Source
- Purified water, Resistivity≥0.5MΩ·cm
- Ambient Temperature (℃)
- 5 ~35
- Network
- Connection via network port
- Internal Dimensions (W*D*H) (mm)
- ICB-MS150-HL: 600*405*625; ICB-MS250-HL: 600*500*830; ICB-MS400-HL: 600*700*950; ICB-MS500-HL: 680*680*1080; ICB-MS1000-HL: 1400*510*1400
- External Dimensions (W*D*H) (mm)
- ICB-MS150-HL: 780*830*1480; ICB-MS250-HL: 780*880*1650; ICB-MS400-HL: 780*1060*1750; ICB-MS500-HL: 860*1050*1850; ICB-MS1000-HL: 1615*925*1975
Hardware Configuration
- Compressor
- Imported variable frequency compressor, energy saving over 50%
- Evaporator
- Coating process with doubled corrosion resistance
- Humidifier
- Adopts PTC heating element and features automatic protection function
- Controller
- 7-inch color programmable touch screen
- Humidity Sensor
- High-precision capacitive
- Water System
- Automatic water circulation
- Alarm System
- On-site audible and visual alarm
- Structural Material
- Interior: 304 stainless steel
- Double Door
- Inner door: Tempered glass
- Safety Protection
- Five layers of protection
Software Configuration
- Data Storage
- Built-in storage hard drive, USB export
- Data Printing
- Dot matrix micro-printer
- Data Network Version
- Server version
Features
Key features
- 01
ICH-grade performance
Uniformity designed to meet ICH stability testing under full load.
- 02
Wide climate range
10°C to 65°C and 15% to 95% RH with tight fluctuation.
- 03
Inverter cooling
Variable frequency compressor reduces energy consumption by more than 50%.
- 04
Programmable touch screen
7-inch color controller with maintenance reminders and network connection.
- 05
Five sizes
150, 250, 400, 500 L single-door and 1000 L double-door models.
- 06
Five-layer safety
Protection including critical leakage protection with audible and visual alarm.
