Reference: MTP-650 / MTP-630

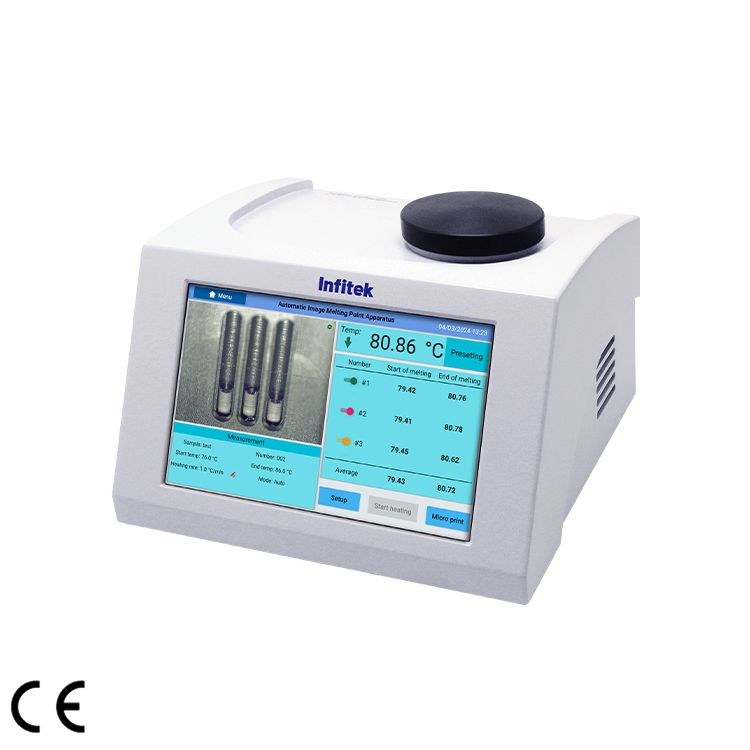

MTP-650 / MTP-630 Melting Point Apparatus
Automatic melting point apparatus with image analysis and video playback, measuring 5 or 3 capillaries from room temperature to 400 °C.
Key specifications
- Measurement Range
- Room temperature – 400℃
- Measurement Mode
- Auto/Visual
- Pre-stored Measurement Methods
- MTP-650: 600; MTP-630: 400
- Number of Users
- MTP-650: 300; MTP-630: 200
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
MTP-650 / MTP-630 Melting Point Apparatus
Request a quoteOverview
Product overview
The MTP-650 and MTP-630 are automatic melting point apparatus that use image processing and analysis with video recording and playback. Both cover room temperature to 400 °C at linear heating rates of 0.1 to 20 °C/min, with 0.01 °C resolution, accuracy of ±0.3 °C up to 200 °C and ±0.5 °C above, and 0.3 °C repeatability.
The MTP-650 holds five capillaries, 600 pre-stored methods and 300 users, while the MTP-630 holds three capillaries, 400 methods and 200 users. Multi-point calibration is built in, and measurements can run in automatic or visual mode. The system handles samples that turn dark or opaque on melting and samples that decompose during heating.
An Android system with a 10.1-inch touch screen and 128 GB storage runs the instrument, with RS232, three USB ports, RJ-45 and Wi-Fi. Electronic signatures and an optional audit trail support Pharmacopoeia, GMP, GLP and FDA 21 CFR Part 11 requirements.
Specifications
Technical specifications
21 parameters
Specifications
- Measurement Range
- Room temperature – 400℃
- Measurement Mode
- Auto/Visual
- Pre-stored Measurement Methods
- MTP-650: 600; MTP-630: 400
- Number of Users
- MTP-650: 300; MTP-630: 200
- Audit Trail
- Optional
- Electronic Signature
- Yes
- Resolution
- 0.01℃
- Linear Heating Rate
- 0.1℃/min~20℃/min
- Accuracy
- ≤ 200℃±0.3℃; > 200℃±0.5℃
- Repeatability
- 0.3℃ (heating rate: 1.0℃/min)
- Linear Heating Rate Error
- ±5%
- Number of Capillary
- MTP-650: 5; MTP-630: 3
- Capillary Dimensions
- Outer diameter: φ1.4mm; Inner diameter: φ1.0mm; Length: 90mm;
- Height of Sample
- 3mm
- Operating System
- Android
- Data Storage
- 128 G
- Display
- 10.1-inch touchscreen
- Interface
- 1×RS 232, 3×USB, 1×RJ-45, Wi-Fi
- Power Supply
- 100V~240VAC, 50Hz/60Hz, 150W
- Package Dimension
- 495*493*350 mm
- Gross Weight
- 5kg
Features
Key features
- 01
Image analysis
Image processing with video recording and playback of each measurement.
- 02
Five or three capillaries
MTP-650 measures five capillaries and MTP-630 measures three.
- 03
Difficult samples
Measures samples that turn dark or opaque after melting or decompose on heating.
- 04
Multi-point calibration
Built-in calibration improves accuracy and reliability of results.
- 05
Android touch screen
10.1-inch touch screen with 128 GB storage, RS232, USB, RJ-45 and Wi-Fi.
- 06
Regulatory support
Electronic signatures and an optional audit trail for GMP, GLP and FDA 21 CFR Part 11.
