Reference: MDS-Tan40
MDS-Tan40 Microwave Digestion Workstation
A dual-magnetron microwave digestion workstation with up to 2000 W of continuous power, rotors for 18 to 40 vessels and mid-infrared temperature monitoring of every vessel.
Key specifications
- Model
- MDS-Tan40
- Working environment temperature
- 0~40℃
- Relative humidity for working environment
- 15~80%RH
- Microwave source
- 2450MHz; Max. microwave output power 2000W, emitted from Dual magnetron inverter high-energy microwave field; non-pulse continuous microwave output
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
MDS-Tan40 Microwave Digestion Workstation
Request a quoteOverview
Product overview

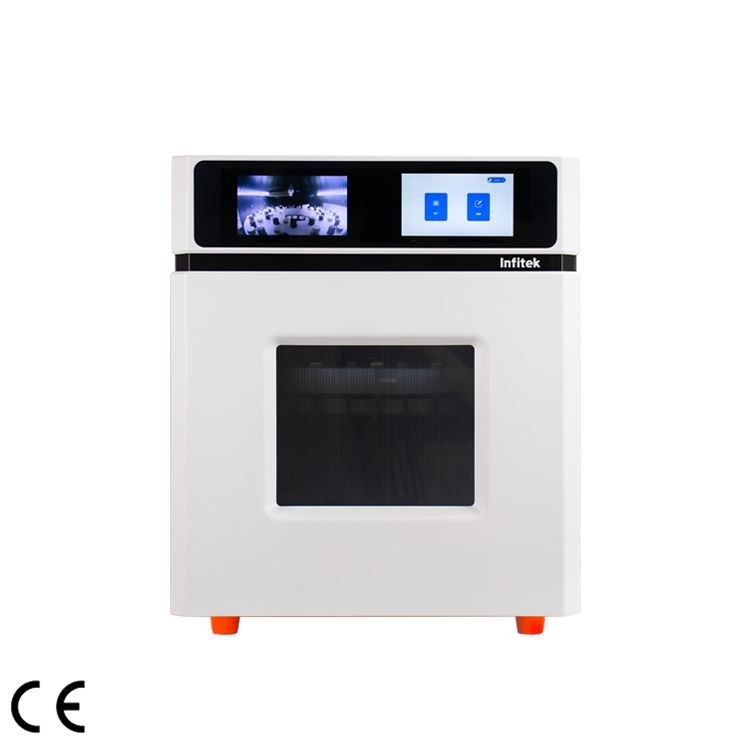

The MDS-Tan40 is a microwave digestion workstation for sample preparation in environmental monitoring, food safety, public health, petrochemicals, metallurgy, education and research. A dual magnetron inverter system with high-frequency closed-loop PID control delivers up to 2000 W of continuous, non-pulsed microwave power at 2450 MHz for a uniform field in the cavity.
Four vessel configurations are available: 40 high-pressure vessels of 70 mL, 40 auto-release vessels of 55 mL, 24 high-pressure vessels of 110 mL and 18 ultra high-pressure vessels of 100 mL, rated to 300°C or 320°C and 15 MPa. Inner vessels are TFM and outer vessels aerospace composite fibre with PFA coating. Non-contact mid-infrared sensors at the bottom monitor the solution temperature in every vessel.
A 7-inch colour touch screen shows temperature, power, time and steps with live curves, and a 5-inch screen gives a view inside the cavity. The 316L stainless steel cavity, 3D adjustable explosion-proof door and automatic exhaust cooling to room temperature in under 15 minutes complete the system.
Specifications
Technical specifications
15 parameters
Specification
- Model
- MDS-Tan40
- Working environment temperature
- 0~40℃
- Relative humidity for working environment
- 15~80%RH
- Microwave source
- 2450MHz; Max. microwave output power 2000W, emitted from Dual magnetron inverter high-energy microwave field; non-pulse continuous microwave output
- Installed power
- 3800W
- Microwave cavity
- Grade 316L stainless steel microwave resonant cavity, with a wall thickness of more than 3mm, sprayed with multi-layer PFA coating.
- Furnace exhaust system
- Automatically adjusted air volume; cooling to room temperature in less than 15 minutes
- Dimensions(W*D*H)
- 600×685×660
- Net weight
- 62kg
Table 2
- Batch amount
- High-Pressure: 40 vessels; Auto-release: 40 vessels; High-Pressure: 24 vessels; Ultra High-Pressure: 18 vessels
- Inner vessel material
- TFM
- Outer vessel material
- Aerospace composite fiber
- Inner vessel volume
- High-Pressure: 70mL; Auto-release: 55mL; High-Pressure: 110mL; Ultra High-Pressure: 100mL
- Max. temperature
- High-Pressure: 300℃; Auto-release: 300℃; High-Pressure: 300℃; Ultra High-Pressure: 320℃
- Max. pressure
- 15Mpa
Features
Key features
- 01
Dual magnetron inverter
Two magnetrons with closed-loop PID control produce a uniform, continuous microwave field for consistent digestion.
- 02
Four vessel options
Rotors for 40 × 70 mL, 40 × 55 mL auto-release, 24 × 110 mL or 18 × 100 mL ultra high-pressure vessels.
- 03
Every-vessel temperature monitoring
Bottom-mounted mid-infrared sensors show the real-time temperature of each sample solution.
- 04
Two-screen display
A 7-inch touch screen shows run data and curves, while a 5-inch screen shows the inside of the cavity.
- 05
Full-vessel pressure protection
Safety bolt and elastic self-sealing relief designs release pressure only under over-pressure conditions.
- 06
Fast cooling
An automatically adjusted exhaust cools the vessels to room temperature in less than 15 minutes.
