Reference: DBI-100VII

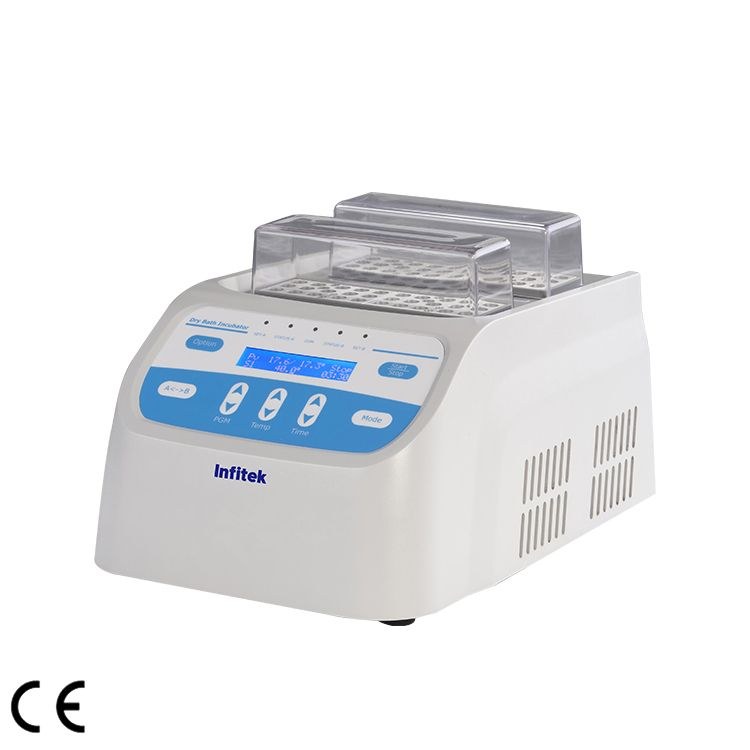

DBI-100VII Dual-Zone Dry Bath Incubator
A microprocessor-controlled dry bath with four blocks in two independently controlled A/B zones, heating from room temperature +5°C to 100°C with ±0.3°C accuracy.
Key specifications
- Model
- DBI-100VII
- Temp setting range
- 0°C ~100°C
- Temp control range
- RT+5°C ~100°C
- Timing range
- 1min ~ 99h59min/∞
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
DBI-100VII Dual-Zone Dry Bath Incubator
Request a quoteOverview
Product overview
The DBI-100VII is a dry block heating system with precise microprocessor temperature control, designed as an alternative to a water bath for sample incubation, catalysis and storage. It holds four blocks arranged in two temperature groups, A and B, that can run independently or at the same time from one interface.
Temperature is set from 0 to 100°C and controlled from room temperature +5°C to 100°C, with accuracy and uniformity of ±0.3°C at 37°C and 0.1°C display resolution. Heating from 25°C to 100°C takes 15 min or less, and the timer runs from 1 min to 99 h 59 min or continuously.
A range of aluminium blocks is available, including 15-position blocks for 1.5 mL and 2.0 mL tubes, and custom blocks can be made. Automatic preheating, automatic running, auto resume after power failure, built-in calibration and over-heating protection are standard.
Specifications
Technical specifications
23 parameters
Specifications
- Model
- DBI-100VII
- Temp setting range
- 0°C ~100°C
- Temp control range
- RT+5°C ~100°C
- Timing range
- 1min ~ 99h59min/∞
- Temp accuracy
- ≤±0.3°C * @37°C
- Display accuracy
- 0.1°C
- Temp uniformity
- ≤±0.3°C@37°C *
- Heating time
- ≤15min(from 25°C~100°C)
- Auto heating
- Yes
- Auto running
- Yes
- Auto resume to run
- Yes
- Temperature control group
- 2
- Block quantity
- 4
- Power
- 240W
- Electricity
- AC110V or AC220V/50-60Hz
- Fuse
- 250V 3A Ф5×20
- Dimension
- 370*254*217(mm)
- Package Dimension (W*D*H) (mm)
- 460*370*320
- N.W. / G.W.
- 5.0kg / 6.3kg
Optional Blocks:
- MiniBoxA
- Capacity: 15*2.0ml centrifuge tube; Model: MD40; Capacity: 15*Φ10mm
- MiniBoxB
- Capacity: 15*1.5ml centrifuge tube; Model: MD41; Capacity: 12*Φ12mm
- MiniBoxC
- Capacity: 24*0.5ml centrifuge tube; Model: MD42; Capacity: 8*Φ15mm
- MiniBoxD
- Capacity: 32*0.2ml centrifuge tube; Model: MD43; Capacity: 8*Φ16mm
Features
Key features
- 01
Two independent zones
Groups A and B run at separate temperatures and times, alone or together.
- 02
Four block positions
Holds four interchangeable aluminium blocks, with custom blocks available.
- 03
±0.3°C accuracy
Accurate, stable control with 0.1°C display resolution.
- 04
Flexible timer
1 min to 99 h 59 min or continuous operation.
- 05
Built-in safeguards
Auto resume after power failure, calibration function and over-heating protection.
