Reference: IC-W6600

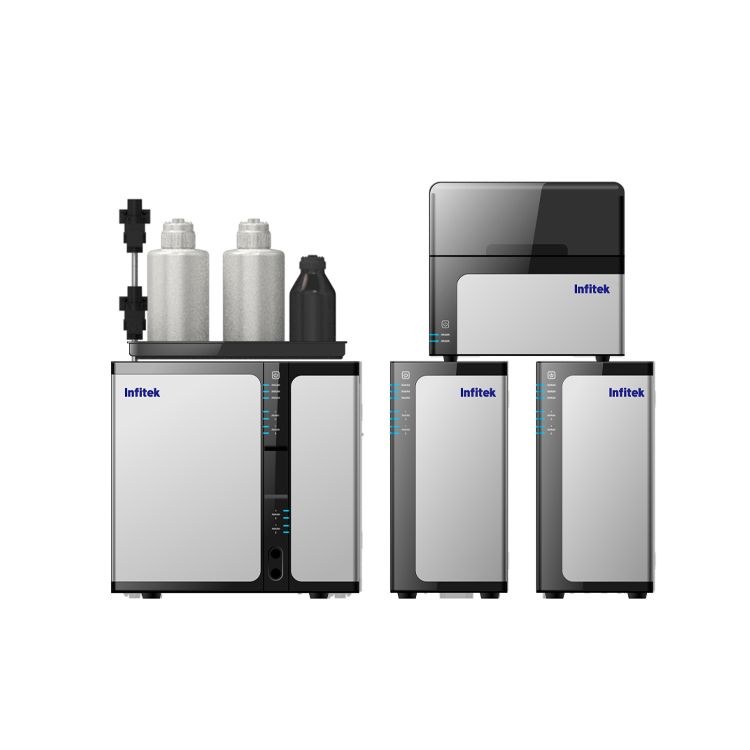

IC-W6600 Series Multifunctional Ion Chromatograph
Modular ion chromatography system configurable with conductivity, electrochemical and UV detectors, eluent generators and isocratic or quaternary gradient pumps.
Key specifications
- Compound Name
- Retention Time / Peak Area / Concentration (mg/L) / Signal-to-Noise Ratio / Theoretical Limit of Detection (mg/L)
- F-
- 3.712 / 0.103 / 0.006 / 27.403 / 0.00066
- Cl-
- 7.623 / 0.291 / 0.007 / 32.908 / 0.00064
- NO2-
- 9.434 / 0.191 / 0.016 / 19.65 / 0.00244
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
IC-W6600 Series Multifunctional Ion Chromatograph
Request a quoteOverview
Product overview
The IC-W6600 series is a modular, multifunctional ion chromatography system for a broad range of applications. It can be configured with conductivity, electrochemical and UV detectors to analyze routine anions and cations as well as cyanide, iodide, sugars, small organic acids, hexavalent chromium and transition metals. Pluggable conductivity and electrochemical detector modules make installation straightforward.
The pump, eluent generator, detector and post-column derivatization unit all follow a modular design, so users configure only what they need. Isocratic and quaternary gradient pumps are available, and when coupled with an eluent generator they support reagent-free ion chromatography. A five-zone temperature control system keeps analysis conditions stable.
Multiple injection modes and online concentration handle anything from simple injections to complex sample treatment, and the system can be upgraded with post-column derivatization, online concentration and online matrix elimination. Typical applications include drinking water, environmental, food and industrial ion analysis.
Specifications
Technical specifications
15 parameters
VIII.Specification
- Compound Name
- Retention Time / Peak Area / Concentration (mg/L) / Signal-to-Noise Ratio / Theoretical Limit of Detection (mg/L)
- F-
- 3.712 / 0.103 / 0.006 / 27.403 / 0.00066
- Cl-
- 7.623 / 0.291 / 0.007 / 32.908 / 0.00064
- NO2-
- 9.434 / 0.191 / 0.016 / 19.65 / 0.00244
- Br-
- 13.059 / 0.142 / 0.016 / 10.358 / 0.00463
- NO3-
- 14.195 / 0.168 / 0.016 / 13.124 / 0.00366
- SO32-
- 21.525 / 0.959 / 0.184 / 45.168 / 0.01222
- SO42-
- 23.471 / 0.744 / 0.018 / 34.144 / 0.00158
- PO43-
- 35.205 / 1.033 / 0.204 / 61.07 / 0.01002
- Li+
- 4.407 / 0.598 / 0.01 / 1008.996 / 0.0000297
- Na+
- 5.27 / 0.536 / 0.02 / 774.291 / 0.0000775
- NH4+
- 5.817 / 0.798 / 0.02 / 1080.345 / 0.0000555
- K+
- 7.53 / 0.289 / 0.02 / 270.933 / 0.0002215
- Mg2+
- 14.014 / 0.663 / 0.02 / 276.06 / 0.0002173
- Ca2+
- 18.637 / 0.88 / 0.03 / 244.71 / 0.0003678
Features
Key features
- 01
Modular configuration
Pump, eluent generator, detectors and post-column derivatization are configured to the application.
- 02
Three detector types
Conductivity, electrochemical and UV detectors, with pluggable modules.
- 03
Isocratic or quaternary pumps
Flexible pump choice for efficient separations.
- 04
Reagent-free IC
Eluent generators produce eluent online, removing manual eluent preparation.
- 05
Five-zone temperature control
Stable conditions across the analysis and detection modules.
- 06
Online sample treatment
Online concentration and matrix elimination options for complex samples.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
