Reference: DON-18E / DON-18

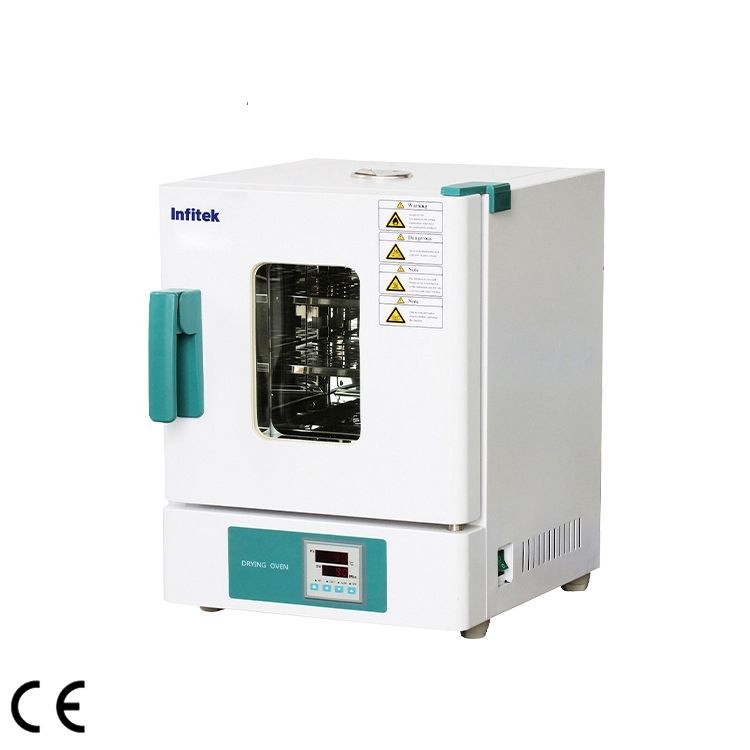

Natural Convection Drying Oven DON-18E, DON-18
Compact 18 L natural convection drying oven from ambient +10 to 300 °C with two-section intelligent PID control and digital display.
Key specifications
- Cycle Mode
- Natural convection
- Volume
- 18L
- Temp. Range
- RT+10~300℃
- Temp. Resolution
- 0.1℃
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Natural Convection Drying Oven DON-18E, DON-18
Request a quoteOverview
Product overview
The DON-18E and DON-18 are compact 18 L drying ovens in which hot air circulates by natural convection, suited to benchtop drying, baking and heat treatment of small sample loads. Temperature is controlled from ambient +10 to 300 °C with 0.1 °C resolution and ±3.5% uniformity.
A PT100 sensor and two-section intelligent PID controller with soft-touch buttons and digital display provide fixed-temperature operation, a timer from 0 to 9999 min with timing wait, and auto stop. An audible and visual over-temperature alarm is included.
The DON-18 has a mirror stainless steel chamber, while the DON-18E uses a high-strength galvanized sheet interior. Both have nickel-chromium heating wire, CE-rated rock wool insulation, a 28 mm top exhaust that doubles as a test hole, an anti-scald handle and two adjustable shelves rated at 15 kg each. Extra shelves and a programmable controller are optional.
Specifications
Technical specifications
17 parameters
2. Programmable controller
- Cycle Mode
- Natural convection
- Volume
- 18L
- Temp. Range
- RT+10~300℃
- Temp. Resolution
- 0.1℃
- Temp. Uniformity
- ±3.5%
- Inner Chamber Material
- DON-18E: High strength galvanized sheet; DON-18: Mirror Stainless Steel
- Structure
- External material: cold rolling steel electrostatic spraying; Insulation: High quality rock wool board (with CE); Heater: Nickel chromium alloy heating wire; Exhaust hole: φ28mm top (with function of test hole);
- Controller
- Temp. sensor: PT100; Temp. set: soft touch button; Temp. control: Intelligent PID for Two temperature section; Setting temperature: display on the lower row; Measuring temperature: display on the four digital tubes upper row; Operation function: fixed temperature operation, timing function, auto stop
- Timing Setting
- 0~9999mins(with timing wait function)
- Alarm
- Over-temperature Alarm, audible and visual alarm
- Shelves
- 2pcs/adjustable, max. load 15kg/shelf, shelf space 29mm
- Consumption
- 600W
- Power Supply
- AC110/220V±10%, 50/60Hz
- Internal Size(W*D*H)
- 260*260*260mm
- External Size(W*D*H)
- 380*455*568mm
- Package Size(W*D*H)
- 500*530*657mm
- Net/Gross Weight
- 27/35kg
Features
Key features
- 01
Compact 18 L chamber
Benchtop size with 260 x 260 x 260 mm interior for small loads.
- 02
Natural convection
Hot air circulates naturally through the chamber without a fan.
- 03
Two-section PID
Intelligent PID with PT100 sensor and digital display of set and measured values.
- 04
Timer with auto stop
Fixed-temperature or timed runs from 0 to 9999 min.
- 05
Two interior options
Mirror stainless steel on the DON-18 or galvanized sheet on the DON-18E.
- 06
Over-temperature alarm
Audible and visual alarm protects samples from overheating.
