Reference: NEC60-R12E

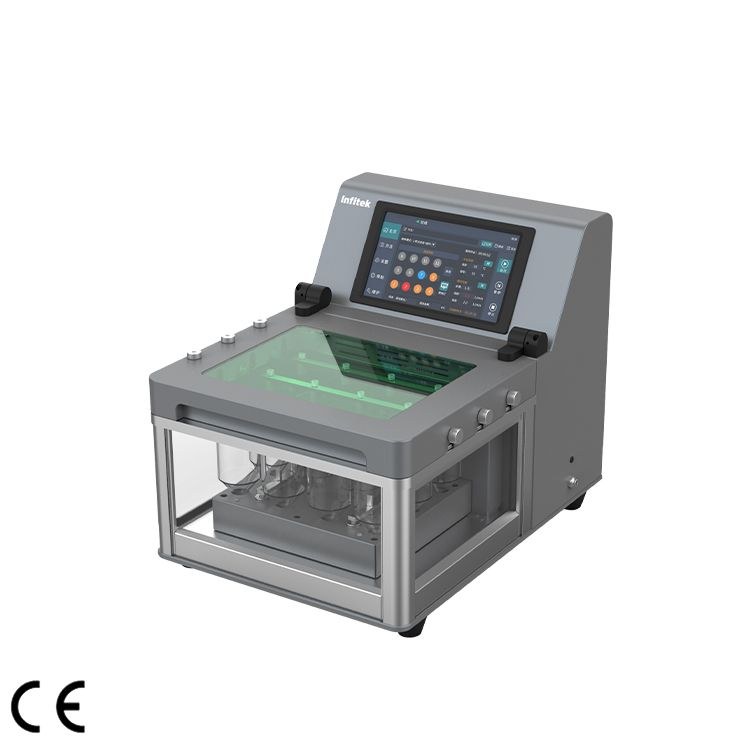

Nitrogen Evaporator NEC60-R12E

12-position nitrogen evaporator for 60 or 250 mL tubes with vortex airflow, end-point detection, a water bath to 60 °C and automatic water fill and drain.

Key specifications

Automated Evaporation Completion With end-point sensor technology, the system can automatically detect the endpoint, whi
End-point Sensor
Model
NEC60-R12E
Concentration
Water bath heating and nitrogen blowing
Sample Capacity
12 position
  • Configured to your application by our specialists
  • Installed and commissioned on site
  • Training and after-sales support across Jordan, the GCC and MENA

Overview

Product overview

The NEC60-R12E is a nitrogen blow-down evaporation system that automatically evaporates up to 12 samples in parallel with end-point detection. It combines uniform, gentle water bath heating from room temperature to 60 °C with vortex airflow technology for rapid and gentle concentration of liquid samples.

It is commonly used with 60 mL and 250 mL tubes. Each of the 12 nitrogen channels can be switched on or off individually, gas flow is adjustable from 0 to 5.0 L/min in 0.1 steps, and flow can be set as a gradient as the sample volume decreases. Nozzle angle and horizontal position, over 30 mm or more, can be adjusted during evaporation to suit different tubes. An end-point sensor detects completion at 1.0 mL.

A 10 inch built-in touch screen controls flow and temperature with individual tube control and saves methods. The bath fills and drains automatically under software control with a level sensor, and has double-layer glass and three-sided transparent windows with internal lighting.

Specifications

Technical specifications

16 parameters

Specifications

Automated Evaporation Completion With end-point sensor technology, the system can automatically detect the endpoint, whi
End-point Sensor

Specification

Model
NEC60-R12E
Concentration
Water bath heating and nitrogen blowing
Sample Capacity
12 position
Temperature Range
RT.~60°C
Sample Vials
60mL or 250mL
Endpoint Detection
1.0mL
Range of Gas Flow Rate
0~5.0mL/min, precise to 0.1mL/min
Software Interface
10-inch built-in screen
Fume Hood/Ventilation
Required
Storage Environment
Temperature: 0~40°C; Humidity: 20%~85%
Operating Environment
Temperature: 10~40°C; Humidity: 20%~80%
Electricity
200~240V, 50/60Hz
Power Rate
1500W
External Dimension
580*460*560mm
Net Weight
41kg
Features

Key features

  • 01

    12 parallel positions

    Evaporates up to 12 samples in 60 mL or 250 mL tubes with individually switched channels.

  • 02

    Vortex airflow

    Gentle, rapid evaporation from vortex nitrogen flow and uniform bath heating.

  • 03

    End-point detection

    Sensor detects when a sample reaches 1.0 mL to end evaporation automatically.

  • 04

    Gradient flow control

    Flow adjustable from 0 to 5.0 L/min and programmable as the volume drops.

  • 05

    Automatic water handling

    Software-controlled fill and drain with a liquid level sensor.

  • 06

    10 inch touch screen

    Edit and save methods for temperature, flow rate and channels.
