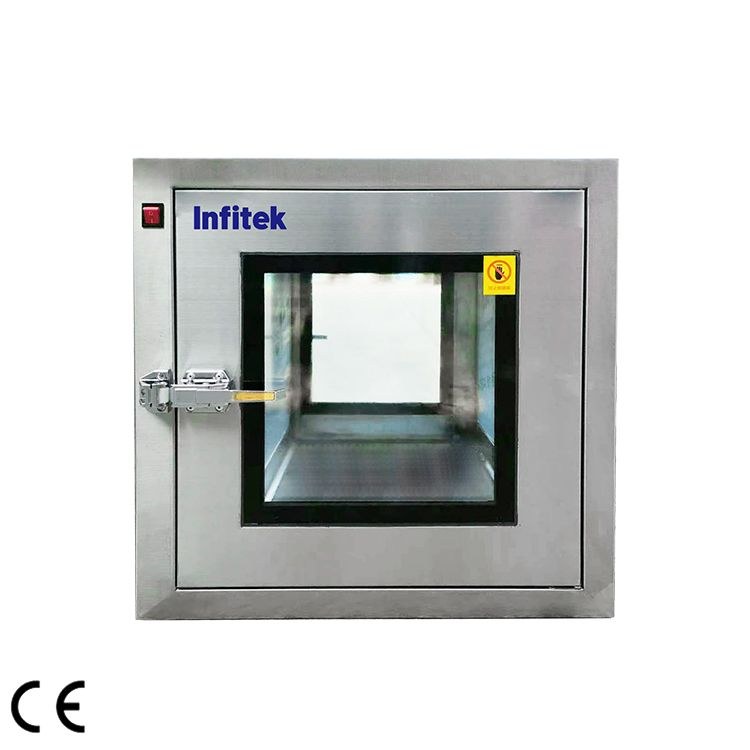

Pass Box PB-800M

Mechanically interlocked pass box with UV sterilization for transferring items between clean rooms, or between a clean room and a non-clean area.

Key specifications

PB-800M: Internal Diameter (W*D*H): 800*800*800mm; External Diameter(W*D*H): 985*880*920mm; Interlock Mode: Mechanical interlock; Electricity: 220V, 50/60Hz

Configured to your application by our specialists
Installed and commissioned on site
Training and after-sales support across Jordan, the GCC and MENA

Pass Box PB-800M

Overview

Product overview

The PB-800M is a pass box used in clean workshops to transfer goods between two clean rooms, or between a clean room and a non-clean area. Using a pass box reduces how often clean room doors are opened, which keeps contamination of the clean room to a minimum.

The doors on both sides are fitted with a mechanical interlock so that they cannot be opened at the same time, letting the box act as an airlock. A UV lamp inside provides sterilization and disinfection of the chamber.

The internal chamber measures 800 × 800 × 800 mm and the external size is 985 × 880 × 920 mm, running on 220 V, 50/60 Hz. The unit can be customized, including as an air shower pass box that automatically blows and showers items after the door closes to remove dust.

Specifications

Technical specifications

1 parameter

PB-800M: Internal Diameter (W*D*H): 800*800*800mm; External Diameter(W*D*H): 985*880*920mm; Interlock Mode: Mechanical interlock; Electricity: 220V, 50/60Hz

Features

Key features

01
Mechanical interlock
Door-to-door interlock prevents both doors from opening at once, working as an airlock.
02
UV sterilization
Built-in UV lamp for sterilizing and disinfecting the chamber.
03
Large transfer chamber
Internal chamber of 800 × 800 × 800 mm for bulky items.
04
Air shower option
Can be built as an air shower pass box that automatically removes dust from items.
05
Custom builds
Size and configuration can be customized to project requirements.
