Reference: STP-A18L / STP-A24L / STP-A30L
STP-AL Series Portable Autoclave
Portable stainless steel autoclaves in 18 L, 24 L and 30 L sizes, with LED microcomputer control, up to 126°C and a safety interlocked quick-open lid.
Key specifications
- Volume
- STP-A18L: 18L (φ269*260mm); STP-A24L: 24L (φ269*320mm); STP-A30L: 30L (φ269*420mm)
- Configuration
- Semi-auto
- Material
- Stainless steel
- Pot Wall Thickness
- 2.0mm (Reference)
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
STP-AL Series Portable Autoclave
Request a quoteOverview
Product overview

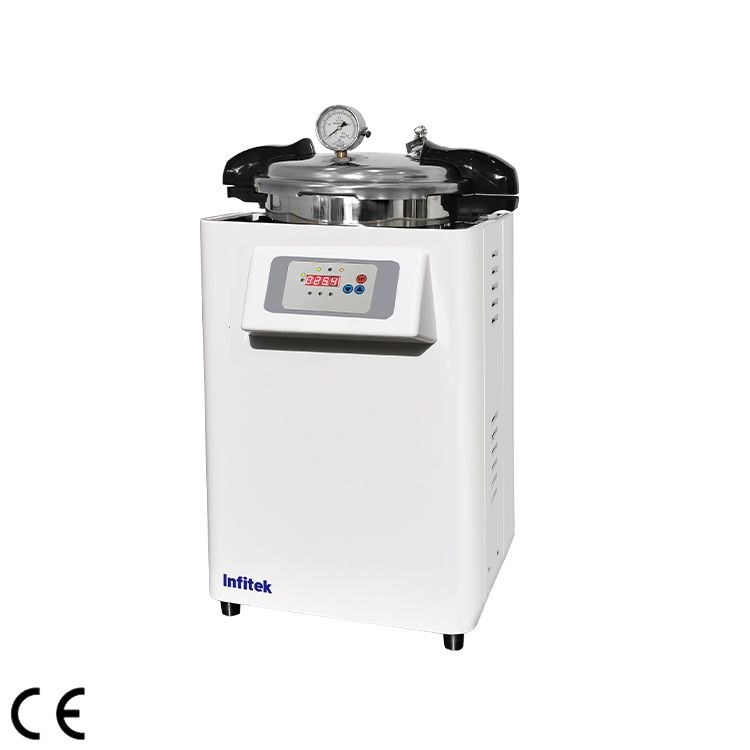

The STP-AL series are semi-automatic portable autoclaves with an intelligent microcomputer control system and LED digital display. Three sizes are available: STP-A18L at 18 L, STP-A24L at 24 L and STP-A30L at 30 L, all with a stainless steel chamber of 269 mm diameter.
Temperature is set from 50°C to 126°C at a rated working pressure of 0.142 MPa, and time from 1 to 999 minutes. Fixed programs can be preset, and the memory stores the last sterilization procedure for repeat runs. The unit sounds an alarm and shuts down when sterilization is finished.
The control system monitors chamber temperature and pressure in real time, and the quick-open lid can only be opened when both are at safe levels. Safety devices include the interlock, over-temperature and over-pressure protection, anti-dry burn protection, a safety relief valve, a leakage protector and automatic fault detection. Power is 220 V, 2 kW.
Specifications
Technical specifications
11 parameters
Specifications
- Volume
- STP-A18L: 18L (φ269*260mm); STP-A24L: 24L (φ269*320mm); STP-A30L: 30L (φ269*420mm)
- Configuration
- Semi-auto
- Material
- Stainless steel
- Pot Wall Thickness
- 2.0mm (Reference)
- Time Setting Range
- 1~999min
- Rated Working Pressure
- 0.142MPa
- Temp. Setting Range
- 50~126℃
- Electricity
- 220V/2kW
- External Dimension
- STP-A18L: 440*445*629mm; STP-A24L: 440*484*815mm; STP-A30L: 440*484*815mm
- Gross Weight
- STP-A18L: 23kg; STP-A24L: 29kg; STP-A30L: 31kg
- Package Dimension
- STP-A18L: 510*510*720mm; STP-A24L: 540*500*900mm; STP-A30L: 540*500*900mm
Features
Key features
- 01
Three portable sizes
18 L, 24 L and 30 L stainless steel models.
- 02
Microcomputer control
LED digital control with automatic alarm and shutdown at the end of sterilization.
- 03
Safety interlock
The lid only opens once chamber temperature and pressure are safe.
- 04
Preset and memory
Fixed programs can be preset, and the last procedure is stored for reuse.
- 05
Comprehensive protection
Over-temperature, over-pressure, anti-dry burn, relief valve and leakage protection.
